EKMM201VEN391MQ25S

Description
Aluminum Electrolytic Capacitors - Snap In 390uF 200 Volt
CategoryPassive components
File Size308KB，5 Pages
ManufacturerUnited Chemi-Con
Websitehttp://www.chemi-con.com/
Download Datasheet Parametric View All

EKMM201VEN391MQ25S Online Shopping

Suppliers Part Number Price MOQ In stock
EKMM201VEN391MQ25S - - View Buy Now

EKMM201VEN391MQ25S Overview

Aluminum Electrolytic Capacitors - Snap In 390uF 200 Volt

EKMM201VEN391MQ25S Parametric

Parameter NameAttribute value
Product CategoryAluminum Electrolytic Capacitors - Snap In
ManufacturerUnited Chemi-Con
RoHSDetails
Capacitance390 uF
PackagingBulk
Factory Pack Quantity200

Preview

Download Datasheet

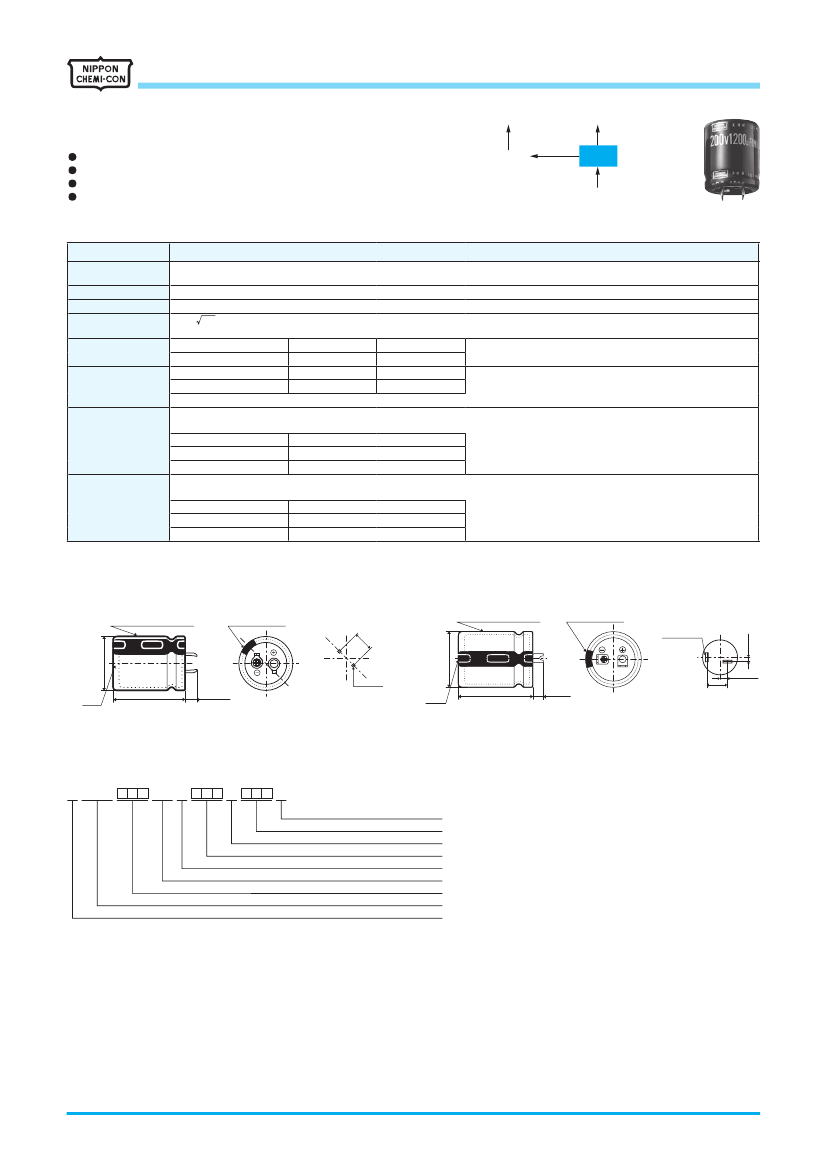

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
Long life snap-ins, 105℃
KMM
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Series
LXS P6-52
Longer life
KMS
P6-32
Downsized
LXQ P6-55
Longer life
・Longer
life from KMQ series
・Endurance
with ripple current : 2,000 to 3,000 hours at 105℃
・Non
solvent resistant type
・RoHS2
Compliant
KMM
Longer life
KMQ P6-14
◆SPECIFICATIONS
Characteristics
-25 to +105℃
160 to 450V
dc
±20%
(M)
I≦3 CV
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
Rated voltage (V
dc
)
160 to 400V
420 & 450V
tanδ(Max.)
0.15
0.20
Rated voltage (V
dc
)
160 to 400V
420 & 450V
Z(-25℃)/Z(+20℃)
4
8
(at 20℃, 120Hz)
(at 20℃ after 5 minutes)
(at 20℃, 120Hz)
Shelf Life
(at 120Hz)
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage)for 3,000 hours at 105℃.
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±15%
of the initial value
D.F. (tanδ)
≦150%
of the initial specified value
Leakage current
≦The
initial specified value
◆DIMENSIONS
[mm]
●
Terminal
Code : VS (φ22 toφ35) : Standard
Negative mark
PC board pin-out
(View from Solder side)
●
Terminal
Code : LI (φ35)
Negative mark
PC board pin-out
(View from Solder side)
4.2±0.5
5±0.5
14.2±1
2-1.2×6
Sleeve (PET : Brown)
φD+1max.
Sleeve (PET : Brown)
φD+1max.
Vent
L
±
2
*
4.0±0.5
2-φ2
10
Vent
L±2
4.5±1
*φD=35mm
: 3.5±0.5mm
The standard design has no plastic disc.
◆PART
NUMBERING SYSTEM
E K MM
1
2
3
4
5
6
7
VS N
8
9
10
11
12
13
M
14
15
16
17
S
18
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 120µF:121, 1,000µF:102)
Dummy terminal code
Terminal code (VS, LI)
Voltage code (ex. 160V:161, 250V:251, 315V:3B1)
Series code
Category
Please refer to "Product code guide (snap-in type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
6-35
CAT. No. E1001R
