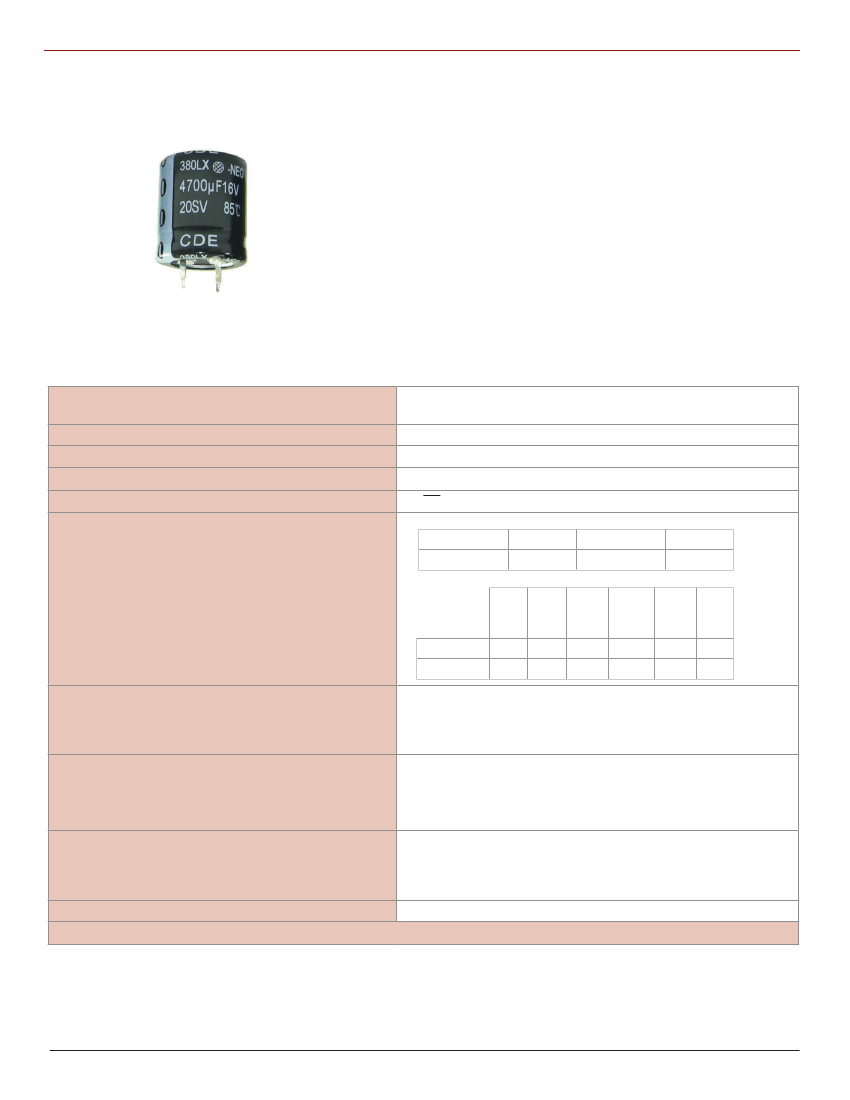

Type 380LX / 382LX 85 °C High Capacitance, Snap-In Aluminum
2, 4 and 5 pin styles available
The excellent value of Type 380L/LX capacitors finds application in
switching power supply input and output circuits and even motor
drives where the high surface area of multiple units in parallel
approaches the ripple capability of our Type 520C computer-grade
capacitor. Type 380LX delivers more capacitance per can size while
Type 380L available in the largest case sizes gives lower ESR for the
same capacitance. Types 382L and 382LX give the choice of 4 or 5
leads for stable, reverse proof mounting.
Highlights
- Latest available ratings, worldwide
- Top performance in power supplies and motor drives
- Big selection of 49 case sizes
- 2, 4 and 5 leads available
–40 °C to +85 °C ≤ 250 Vdc
–25 °C to +85 °C ≥ 315 Vdc
16 Vdc to 500 Vdc
33 µF to 270,000 µF
± 20%
≤3√CV µA at 5 min
Ambient Temperature
45 ºC
1.5
Frequency
60 ºC
1.4
70 ºC
1.3
85 ºC
1.0
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
10
50 Hz 60 Hz 120 Hz 500 kHz 1 kHz kHz &
Up
16 - 100 WV
0.93
0.95
0.80
1.00
1.00
1.05
1.20
1.08
1.25
1.15
1.40
160 - 450 WV 0.75
Low Temperature Characteristics
Impedance ratio: Z
–20⁰C
∕ Z
+25⁰C
≤ 8 (16–50 Vdc)
≤ 4 (63–100 Vdc)
≤ 3 (150–500 Vdc)
3,000 h @ full load at +85 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
1,000 h @ 85 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
10 to 55 Hz, 0.06” and 10 g max, 2 h in each plane
RoHS Compliant
Endurance Life Test
Shelf Life Test
Vibration
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 380LX / 382LX 85 °C High Capacitance, Snap-In Aluminum
2, 4 and 5 pin styles available
Part Numbering System
382LX
272
M
200
N05
Case
Type
380L / LX
(2 pins)
Cap
272
= 2700 µF
Tolerance
M =
±20%
Voltage
200
= 200 Vdc
Code
Insulation
2
= PVC
# of pins
Blank
= 2 pins / 4 pins snap-in 6.3mm L
A
= 2 pins snap-in 4.0mm L
VS
= 5 pins snap-in 6.3mm L
V
= 5 pins standoff
2
V
382L / LX
(4 or 5 pins)
333
= 33000 µF

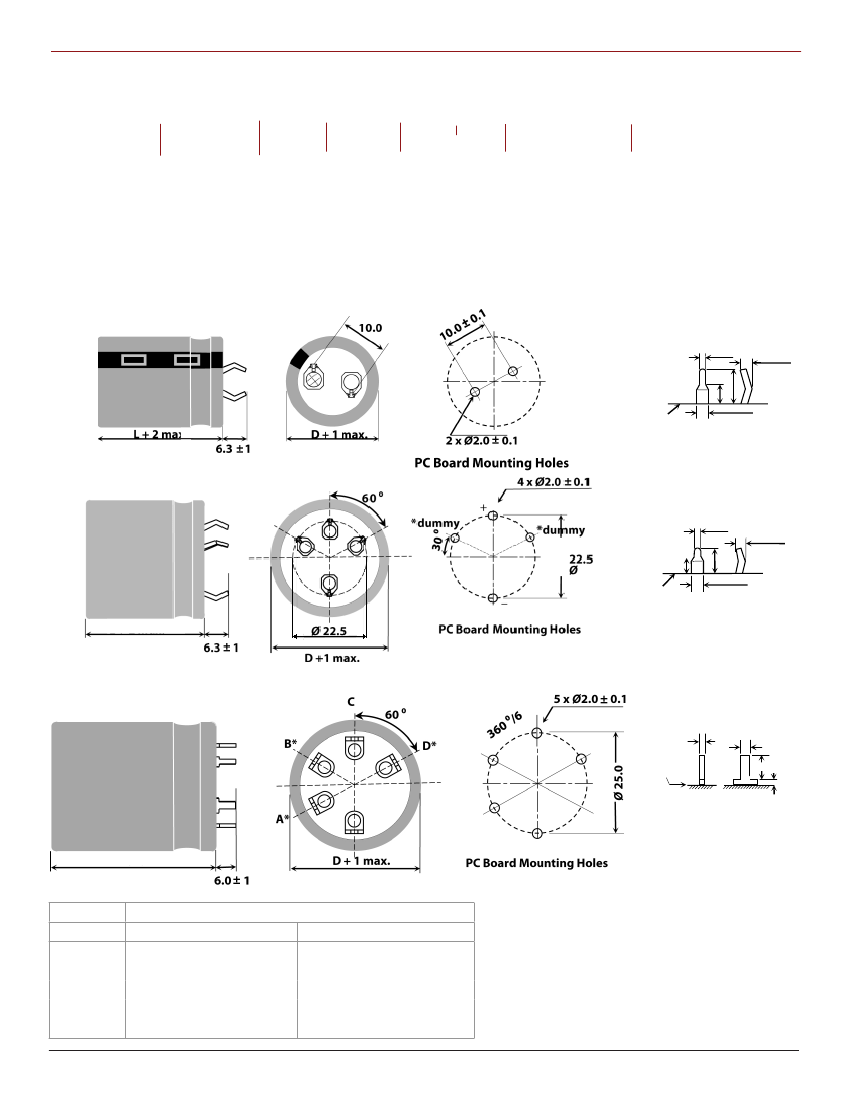

Outline Drawings
Dimensions shown are in mm
Two Pins
380L/LX (22 through 40 mm diameter)
Available in 2, 4 and 5 pins
+0.2
0.8 -0.1
6.3 1
2.0max.
4.0
±
Four Pins
382L/LX (35, 40 and 45mm diameter)
Top of
Capacitor
Body
1.5 0.2
6.3 mm
pin length
6.3
pin length
Available
in 2 and 4 pins
Available
in 2 and 4 pins
+0.2
0.8 -0.1
2.0max.
4.0
1.5 0.2
0.7
3.5
Top of
Capacitor
Body
L ± 2 max.
4.0
4.0 pin length
mm pin length
option (add “A” to end
of part#)
Five Pins
382L/LX (40 and 50mm diameter)
Available in 5 pins
1.5 0.1
3.75 0.1
Top of
Capacitor
Body
0.6 min.
L ± 2 max.
5 pin Standoff pin
style (add “V” to end
of part#)
Connection
Terminal
A
B
C
D
–
40 mm Dia.
dummy
dummy
positive (+)
dummy
negative (–)
50 mm Dia.
negative (–)
dummy
positive (+)
positive (+)
negative (–)
Notes:
* Use dummy terminals for mechanical support only. Make
no electrical connection because they resistively connect
through the electrolyte to the negative terminal.
** Safety Vent may be on the bottom or on the side of the can.
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 380LX / 382LX 85 °C High Capacitance, Snap-In Aluminum
2, 4 and 5 pin styles available
Insulated Case Dimensions
Case Code
DIAMETER
“D”
mm
H20
H01
H02
H03
H04
H45
H05
J20
J01
J02
J03
J04
J45
J05
K20
K01
K02
K03
K04
K45
K05
A20
A01
A02
A03
22
22
22
22
22
22
22
25
25
25
25
25
25
25
30
30
30
30
30
30
30
35
35
35
35
inches
0.87
0.87
0.87
0.87
0.87
0.87
0.87
0.98
0.98
0.98
0.98
0.98
0.98
0.98
1.18
1.18
1.18
1.18
1.18
1.18
1.18
1.38
1.38
1.38
1.38
mm
20
25
30
35
40
45
50
20
25
30
35
40
45
50
20
25
30
35
40
45
50
20
25
30
35
LENGTH
“L”
inches
0.79
0.98
1.18
1.38
1.57
1.77
1.97
0.79
0.98
1.18
1.38
1.57
1.77
1.97
0.79
0.98
1.18
1.38
1.57
1.77
1.97
0.79
0.98
1.18
1.38
Typical
Weight
(grams)
14
16
19
22
24
28
31
16
20
24
27
31
35
38
25
30
35
40
44
48
53
35
42
48
54
A04
A45
A05
A55
A06
A07
A08
A10
N04
N05
N06
N08
N10
E05
E06
E75
E08
E09
E10
B05
B06
B08
B09
B10
Case Code
DIAMETER
“D”
mm
35
35
35
35
35
35
35
35
40
40
40
40
40
45
45
45
45
45
45
50
50
50
50
50
inches
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.38
1.57
1.57
1.57
1.57
1.57
1.77
1.77
1.77
1.77
1.77
1.77
1.97
1.97
1.97
1.97
1.97
mm
40
45
50
55
63
70
80
105
40
50
63
80
105
50
63
75
80
92
105
50
63
80
92
105
LENGTH
“L”
inches
1.57
1.77
1.97
2.17
2.48
2.76
3.15
4.13
1.57
1.97
2.48
3.15
4.13
1.97
2.48
2.65
3.15
3.62
4.13
1.97
2.48
3.15
3.62
4.13
Typical
Weight
(grams)
62
67
74
80
88
98
112
144
82
105
130
185
265
122
150
200
213
238
299
136
168
239
241
325
Typical Performance Curves
