6TCF470MAH: DescriptionTantalum Capacitor, Tantalum (solid Polymer); CategoryPassive components capacitor; File Size64KB，2 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html; Environmental Compliance

Download Datasheet Parametric View All

6TCF470MAH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	6TCF470MAH	-	-	View	Buy Now

6TCF470MAH Overview

Tantalum Capacitor, Tantalum (solid Polymer)

6TCF470MAH Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	7017074180
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	30 weeks
Samacsys Description	PANASONIC - 6TCF470MAH - Tantalum Polymer Capacitor, 470 µF, 6.3 V, POSCAP TCF Series, ± 20%, D, 0.01 ohm
Samacsys Manufacturer	Panasonic
Samacsys Modified On	2021-11-01 16:45:58
YTEOL	7.9
Other features	ESR IS MEASURED AT 100KHZ, RIPPLE CURRENT IS MEASURED AT 100KHZ AND 45CEL
capacitance	470 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)
ESR	10 mΩ
high	3.8 mm
leakage current	0.2961 mA
length	7.3 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Embossed, 13 Inch
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	4400 mA
size code	2917
surface mount	YES
Delta tangent	0.10
Terminal shape	J BEND
width	4.3 mm

Preview

Download Datasheet

View All

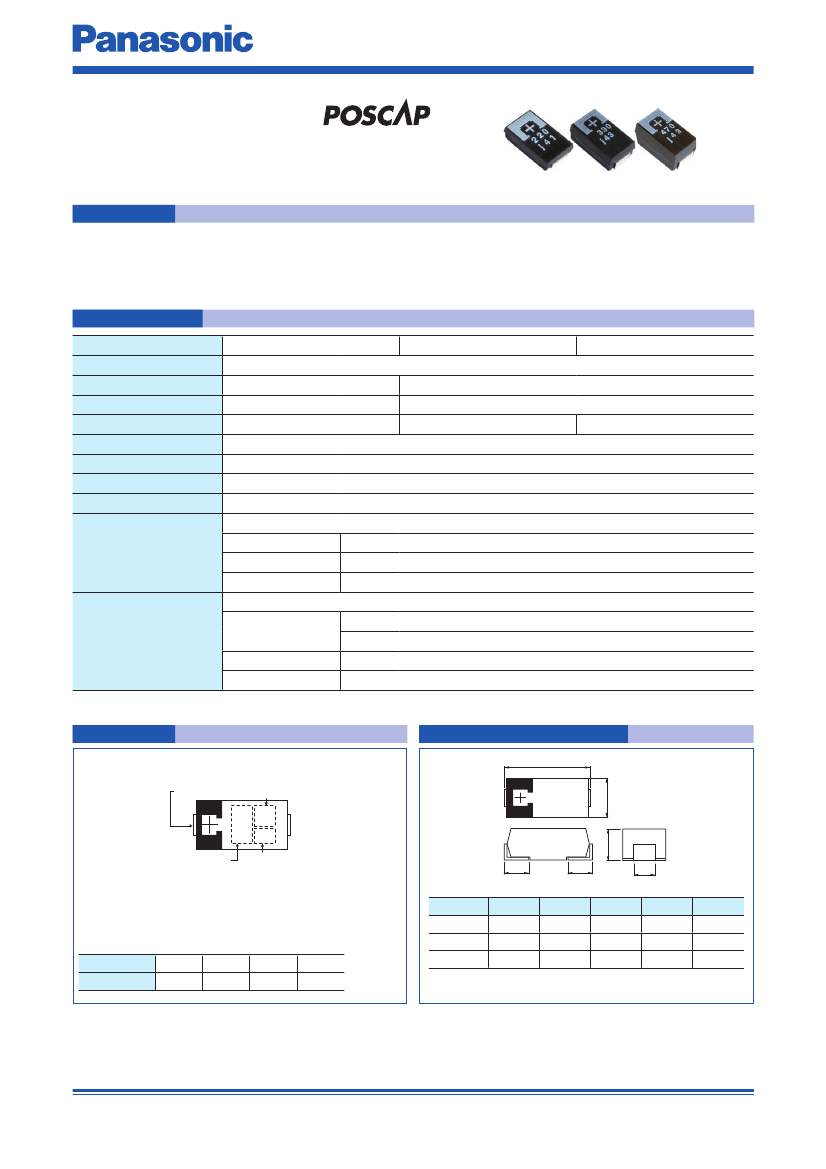

Conductive Polymer Tantalum Solid Capacitors

Surface Mount Type

Series :

TC

Features

●

Guaranteed

at 125 °C

●

RoHS compliance, Halogen free

Specifications

Size code

Category temperature range

Rated voltage range

Category voltage range

Rated capacitance range

Capacitance tolerance

Leakage current

Dissipation factor (tan

d)

Surge voltage (V.DC)

4 V.DC to 6.3 V.DC

3.2 V.DC to 5.0 V.DC

100 µF to 330 µF

D2E

D3L

–55 °C to +125 °C

2.5 V.DC to 10 V.DC

2.0 V.DC to 8.0 V.DC

150 µF to 680 µF

±20 % (120 Hz / + 20 °C)

Please see the attached characteristics list

Rated voltage

×

1.15

+125 °C, 1000 h Category temperature range voltage applied

Endurance

Capacitance change Within ±20 % of the initial value

tan

d

<

2 times of the initial limit

DC leakage current

<

2 times of the initial limit

+60 °C, 90 % to 95 %, 500 h, No-applied voltage

Damp heat

(Steady State)

Capacitance change

tan

d

Within +50 %, −20 % of the initial value (ETCF1000M6H (5H))

Within +40 %, −20 % of the initial value (Except for above model)

<

1.5 times of the initial limit

330 µF to 1000 µF

D4

DC leakage current

<

3 times of the initial limit

Marking

Dimensions (not to scale)

L

Polarity marking(+)

Lot. No.

R.Cap. code

R. Voltage code

S

H

W

W1

Unit : mm

R. Voltage (V.DC)

Code

2.5

e

4.0

g

6.3

j

10.0

A

Size code L±0.3

D2E

7.3

D3L

7.3

D4

7.3

W±0.2 H±0.2

½1

S±0.2

4.3

1.8

1.3

4.3

2.8

1.3

4.3

3.8

1.3

W1±0.1

2.4

½

Externals of ﬁgure are the reference.

½

1 ±0.1 : D2E

Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

02

Jun. 2018
