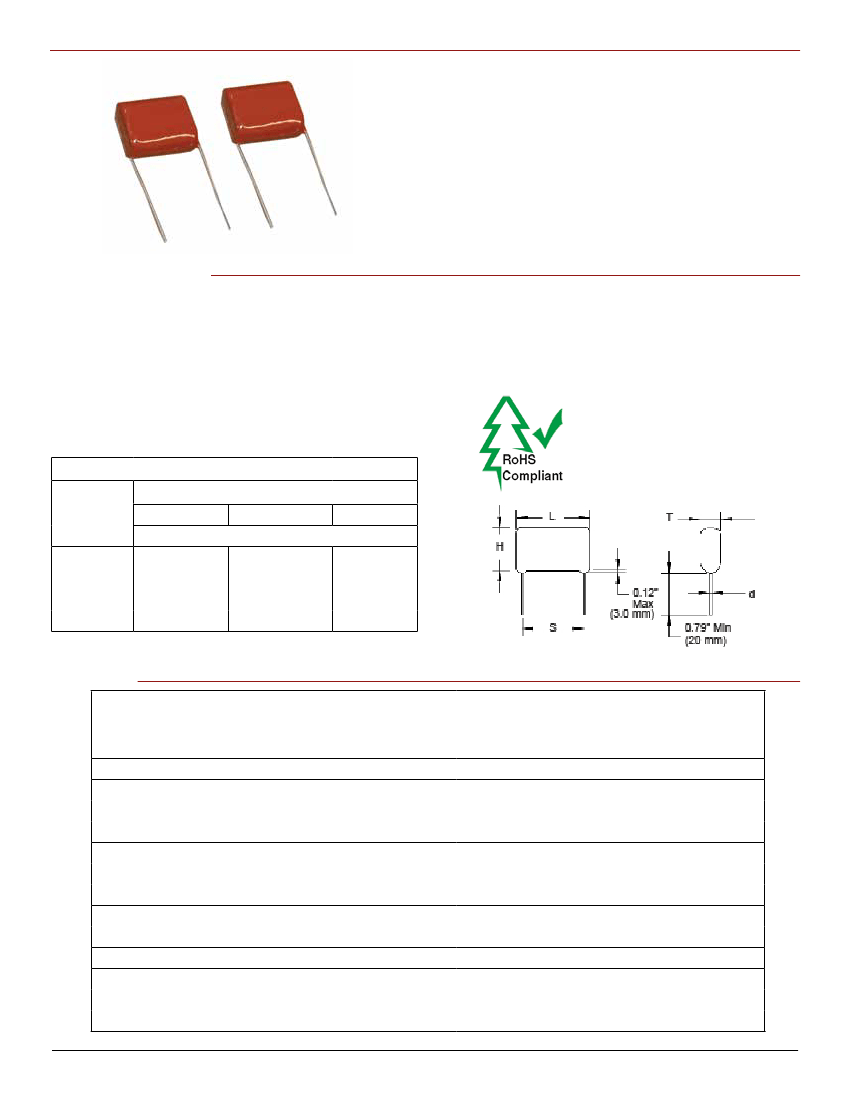

Type DPP
Polypropylene Radial Leaded Film Capacitors
High Frequency
Precise Values
Film/Foil
Radial Leaded
Type DPP
radial leaded polypropylene film/foil
capacitors are non-inductively wound. Very low
dissipation factor and high insulation resistance con-
tribute to excellent performance and long-term sta-
bility characteristics. Low ESR, DF and its inherent
stability make
Type DPP
an ideal choice for tight tol-
erance, pulse and high-frequency applications.
Specifications
Capacitance Range:
0.001 to 0.47 µF
Voltage Range:
100 to 630 Vdc
(70 to 250 Vac, 60 Hz)
Capacitance Tolerance:
±10% standard,
±5% optional
Operating Temperature Range:
–55 ºC to +105 ºC*
Pulse Capability
Body Length
Rated
Volts
100
250
400
630
0.630
4200
6900
19000
60000
.790 - .940
4000
4100
10000
20000
≥1.02
1900
2400
3200
6700
NOTE: Other capacitance values, sizes and performance specifications
are available. Please contact CDE.
Dielectric Strength:
200% (1 minute)
Dissipation Factor:
0.10% Max. (+25 ºC, 1 kHz)
Insulation Resistance:
50,000 MΩ·µF,
100,000 MΩ Min.
Life Test:
1000 hr at 85 ºC at 125% rated voltage
Complies with the EU Directive 2002/95/EC
requirement restricting the use of Lead (Pb), Mer-
cury (Hg), Cadmium (Cd), Hexavalent chromium
(Cr(VI)), PolyBrominated Biphenyls (PBB) and
PolyBrominated Diphenyl Ethers (PBDE).
*Full rated voltage at 85 ºC, derated linearly to 50% rated voltage at +105 ºC
dV/dt — volts per microsecond, max.
Ratings
Catalog
Cap
(µF)
.033
.047
.068
.10
.15
.22
.33
.47
.010
.015
.022
DPP1S33K-F
DPP1S47K-F
DPP1S68K-F
DPP1P1K-F
DPP1P15K-F
DPP1P22K-F
DPP1P33K-F
DPP1P47K-F
DPP2S1K-F
DPP2S15K-F
DPP2S22K-F
Part Number
T Max.
Inches (mm)
0.315 (8.0)
0.335 (8.5)
0.374 (9.5)
0.394 (10.4)
0.433 (11.0)
0.512 (13.0)
0.551 (14.0)
0.630 (16.0)
0.276 (7.0)
0.295 (7.5)
0.315 (8.0)
H Max.
Inches (mm)
0.532 (13.5)
0.610 (15.5)
0.650 (16.5)
0.670 (17.0)
0.748 (19.0)
0.748 (19.0)
0.827 (21.0)
0.945 (24.0)
0.473 (12.0)
0.473 (12.0)
0.512 (13.0)
L Max.
Inches (mm)
0.768 (19.5)
0.768 (19.5)
0.788 (20.0)
1.024 (26.0)
1.024 (26.0)
1.024 (26.0)
1.260 (32.0)
1.260 (32.0)
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
S ±0.06 (±1.5)
Inches (mm)
0.591 (15.0)
0.591 (15.0)
0.591 (15.0)
0.788 (20.0)
0.788 (20.0)
0.788 (20.0)
1.083 (27.5)
1.083 (27.5)
0.394 (10.0)
0.394 (10.0)
0.394 (10.0)
d ±0.05 (1.27)
Inches (mm)
.024 (.6)
.024 (.6)
.024 (.6)
.024 (.6)
.032 (.8)
.032 (.8)
.032 (.8)
.032 (.8)
0.024 (.6)
0.024 (.6)
0.024 (.6)
100 Vdc (70 Vac 60 Hz)
250 Vdc (140 Vac 60 Hz)
