URS1H470MCD datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> URS1H470MCD

Preview

URS1H470MCD: DescriptionAluminum Electrolytic Capacitors - Leaded 47uF 50V 6.3x9; CategoryPassive components capacitor; File Size878KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric Compare View All

URS1H470MCD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	URS1H470MCD	-	-	View	Buy Now

URS1H470MCD Overview

Aluminum Electrolytic Capacitors - Leaded 47uF 50V 6.3x9

URS1H470MCD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.0705 mA
Manufacturer's serial number	RS
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
ripple current	140 mA
surface mount	NO
Delta tangent	0.12
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

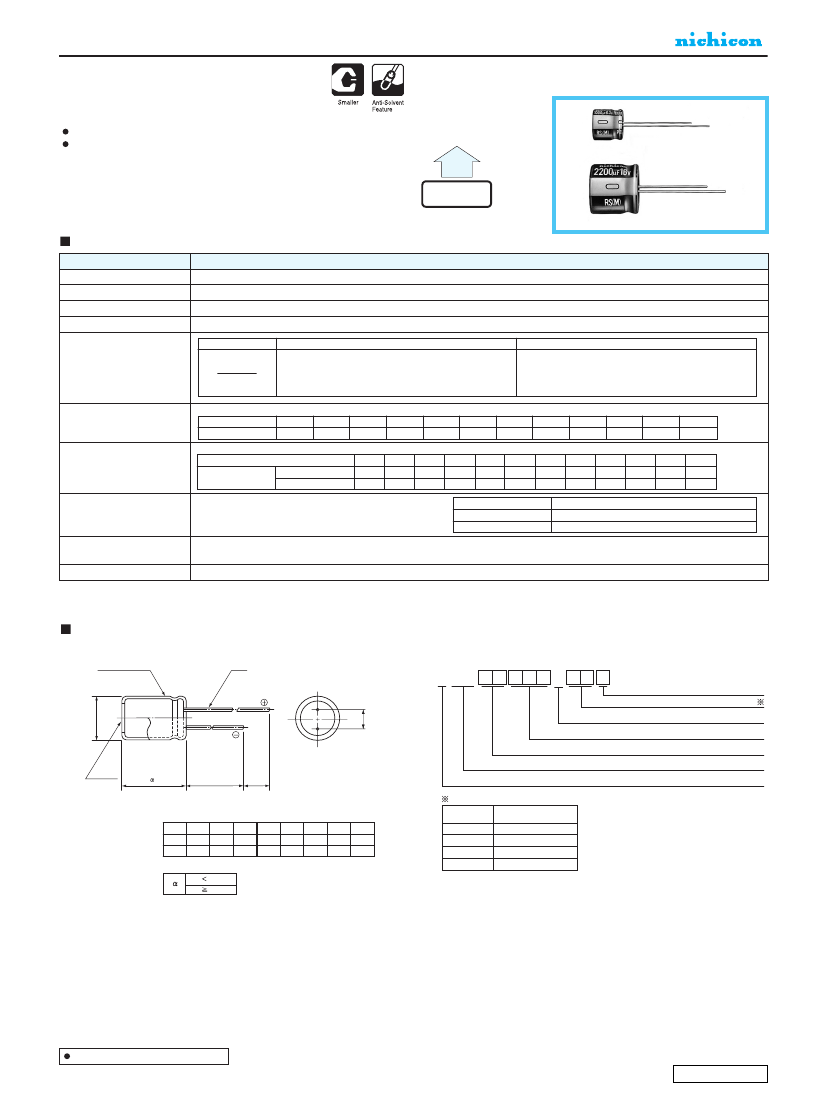

ALUMINUM ELECTROLYTIC CAPACITORS

RS

Compact & Low-profile Sized

series

(Through 100V only)

Compact & low profile case size.

Compliant to the RoHS directive (2011/65/EU).

RZ

High

Temperature

RS

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Performance Characteristics

–40 to +85˚C

6.3 to 400V

0.1 to 10000µF

± 20% at 120Hz, 20˚C

Rated voltage

(

V

)

6.3 to 100

After 1 minute's application of rated voltage at 20°C, leakage current

is not more than 0.03CV or 4 (µA), whichever is greater.

After 2 minutes' application of rated voltage at 20°C, leakage current

is not more than 0.01CV or 3 (µA), whichever is greater.

6.3

0.28

10

0.24

16

0.20

6.3

5

12

25

0.16

10

4

10

35

0.14

16

3

8

25

2

5

50

0.12

35

2

4

63

0.10

50

2

3

160 to 400

Leakage Current

After 1 minute's application of rated voltage at 20°C,

I

= 0.04CV+100 (µA) or less

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF.

Measurement frequency : 120Hz at 20˚C

Tangent of loss angle (tan

δ)

Rated voltage (V)

tan

δ

(

MAX.

)

100

0.08

63

2

3

160

0.20

100

2

3

200

0.20

160

3

4

200

3

4

250

0.20

250

3

6

400

0.25

400

6

10

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z– 25˚C / Z+20˚C

Impedance ratio

ZT / Z20 (MAX.

)

Z– 40˚C / Z+20˚C

Endurance

The specifications listed at right shall be met when

the capacitors are restored to 20°C after the rated

voltage is applied for 2000 hours at 85°C.

Capacitance change

tan

δ

Leakage current

Within ±20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Shelf Life

Marking

After storing the capacitors under no load at 85˚C for 1000 hours and then performing voltage treatment based on JIS C 5101-4

clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.

Printed with white color letter on black sleeve.

Radial Lead Type

Sleeve (P.E.T.)

Type numbering system (Example : 10V 330µF)

φ

d

1

2

3

4

5

6

7

8

9 10 11

12

Size code

Configuration

P ±

0.5

URS 1 A 3 3 1 MPD

Capacitance tolerance (±20%)

Rated capacitance (330µF)

Rated voltage (10V)

φD

+

0.5 MAX

Pressure

relief vent

(φ8up)

Series name

L+

MAX

15

MIN

4

MIN

Type

Configuration

(mm)

φ

D

5 · 6.3

8 · 10

12.5 to 18

20

Pb-free leadwire

Pb-free PET sleeve

φD

P

φd

5

2.0

0.5

6.3

2.5

0.5

8

3.5

0.6

10

5.0

0.6

12.5

5.0

0.6

16

7.5

0.8

18

7.5

0.8

20

10.0

1.0

DD

PD

HD

RD

(φD 20) 1.5

(φD 20) 2.0

•

Please refer to page 20 about the end seal configuration.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.

CAT.8100D

URS1H470MCD Related Products

	URS1H470MCD	URS2E680MHA1TN	URS1H222MRA
Description	Aluminum Electrolytic Capacitors - Leaded 47uF 50V 6.3x9		Aluminum Electrolytic Capacitors - Leaded
Product Category	-	Aluminum Electrolytic Capacitors - Leaded	Aluminum Electrolytic Capacitors - Leaded
Manufacturer	-	Nichicon	Nichicon
RoHS	-	No RoHS Version Available	No RoHS Version Available
Termination Style	-	Radial	Axial
Capacitance	-	68 uF	2200 uF
Voltage Rating DC	-	250 VDC	50 VDC
Tolerance	-	20 %	20 %
Maximum Operating Temperature	-	+ 85 C	+ 85 C
Diameter	-	18 mm	20 mm
Length	-	20 mm	25 mm
Lead Spacing	-	7.5 mm	10 mm
Product	-	General Purpose Electrolytic Capacitors	General Purpose Electrolytic Capacitors
Minimum Operating Temperature	-	- 40 C	- 40 C
Factory Pack Quantity	-	250	50
