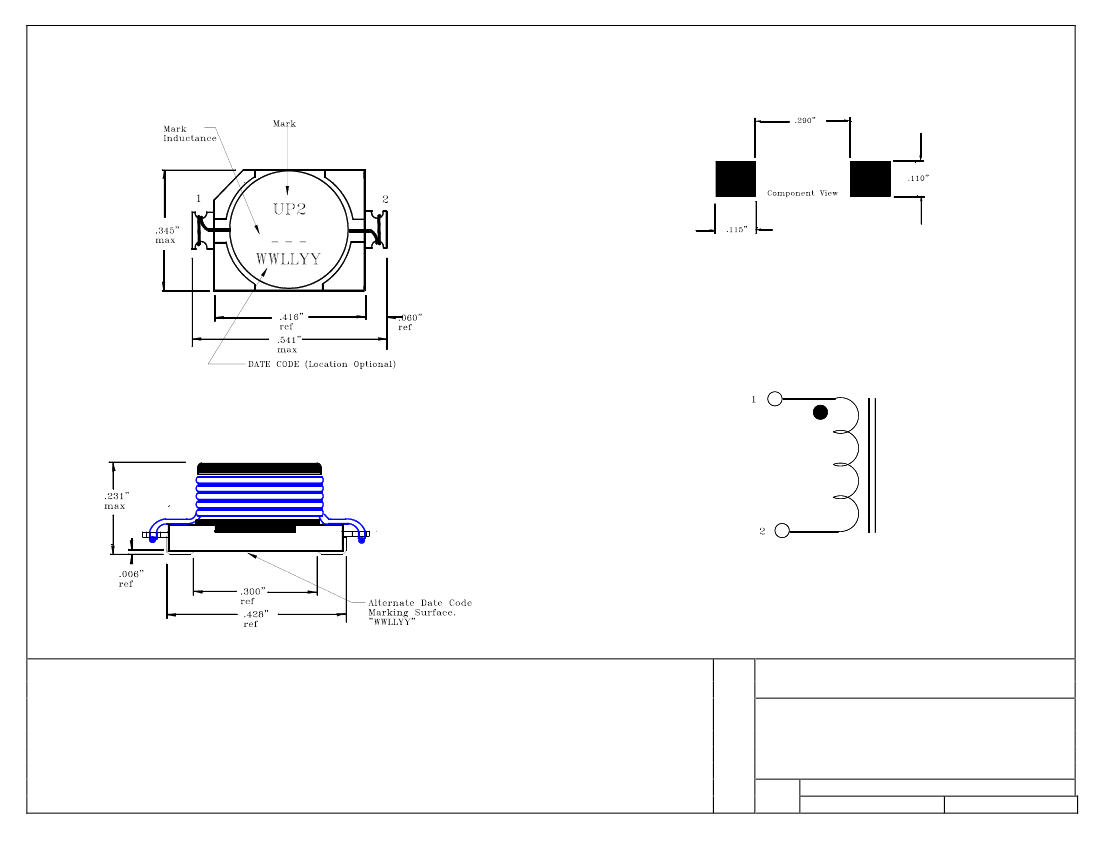

RECOMMENDED PCB PAD LAYOUT
TOP VIEW
SCHEMATIC
FRONT VIEW
Notes:
1) Tolerances +/- .005” unless otherwise specified.
2) Stamping: Stamp unit on top of core as shown
Line 1 UP2 ; line 2 Inductance (per family table chart ).
This Document Subject To Change Without Notice
Uncontrolled Document
Cooper Electronic Technologies
3601 Quantum Boulevard, Boynton Beach FL. 33426
UnipAc 2 Data Sheet
SIZE
A
Drawing Number:
Revision Level:
J
UP2 Inductor Line
UniPac2 Family Table
PN
UP2-R47
UP2-1R0
UP2-1R5
UP2-2R2
UP2-3R3
UP2-4R7
UP2-6R8
UP2-8R2
UP2-100
UP2-150
UP2-220
UP2-330
UP2-470
UP2-680
UP2-820
UP2-101
UP2-151
UP2-221
UP2-331
UP2-471
Customer Information
Rated
OCL
Inductance nominal
+/-20%
µH
µH
Note(1)
.47
.595
1.0
1.00
1.5
1.46
2.2
2.39
3.3
3.3
4.7
4.77
6.8
6.63
8.2
8.71
10
9.73
15
15.43
22
22.50
33
33.13
47
48.65
68
68.17
82
85.60
100
102.60
150
152.70
220
230.00
330
338.00
471
471.8
I rms
Amperes
Note(2)
10.1
9.0
8.1
6.9
6.5
5.7
5.0
4.7
4.3
3.6
2.9
2.4
1.9
1.7
1.5
1.4
1.1
.93
.76
.55
Isat
Amperes
Note(3)
11.4
9.9
7.9
6.1
5.1
4.2
3.6
3.2
3.3
2.4
2.0
1.7
1.4
1.2
1.0
.95
.78
.62
.51
.44
DCR
ohms (Ω)
maximum.
@ 20°C.
.0049
.0081
.0103
.0115
.0138
.0173
.0230
.0245
.0299
.0449
.0644
.0989
.1461
.1898
.2473
.2772
.4244
.6360
.9775
1.31
Part number definition:
First 3 characters = Product code and size.
Last 3 characters = Inductance in
µH.
R=decimal point.
If no R is present third character = # of zeros.
THis Document Subject To Change Without Notice
Uncontrolled Document
Notes:
(1) Test parameters: 0.250Vrms, 100KHz, and 0.0Adc.
(2) Rms current for a
∆T
of 40°C. at an ambient temeperature of 85°C..
(3) Peak current for approximateley a 10% rolloff.
(4) Units supplied in tape and reel (600 units per 13” reel) packaging. EIA481 compliant.
(5) OCL= Open circuit inductance .
(6) Hipot: winding to core 300Vdc min.
Cooper Electronic Technologies
3601 Quantum Boulevard,Boynton Boulevard,FL 33426
UniPAc 2 Data Sheet
SIZE Drawing Number:
A
Revision Level:
J
UP2 Inductor Line
