533B1202JC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 533B1202JC

533B1202JC: DescriptionHeaders u0026 Wire Housings HSG 2P SINGLE ROW POSITIVE LATCH; CategoryPassive components; File Size87KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

533B1202JC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	533B1202JC	-	-	View	Buy Now

533B1202JC Overview

Headers u0026 Wire Housings HSG 2P SINGLE ROW POSITIVE LATCH

533B1202JC Parametric

Parameter Name	Attribute value
Product Category	Precision Potentiometers
Manufacturer	Vishay
RoHS	Details
Termination Style	Solder Lug
Product	Precision Potentiometers
Type	Rotary Metal
Mounting Style	Panel
Linearity	+/- 0.25 %
Number of Turns	3 Turn
Number of Gangs	1 Gang
Resistance	2 kOhms
Shaft Diameter	6 mm
Shaft Length	20.62 mm
Voltage Rating	44.7 V
Element Type	Wirewound
Shaft Type	Slotted
Tolerance	5 %
Operating Temperature Range	- 55 C to + 125 C
Packaging	Bulk
Diameter	22.22 mm
Length	19.05 mm
Power Rating	1 W
Factory Pack Quantity	50
Taper	Linear
Temperature Coefficient	20 PPM / C
Unit Weight	0.749924 oz

Preview

Download Datasheet

View All

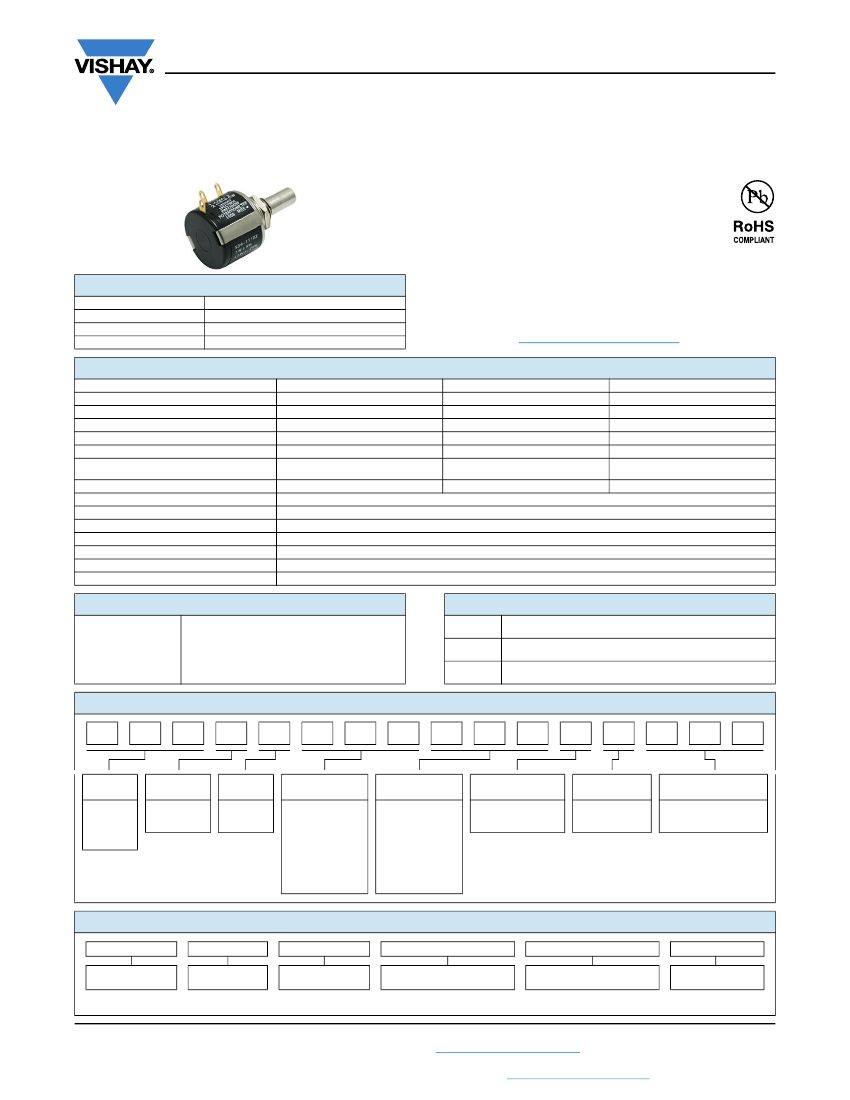

Model 533, 534, 535

www.vishay.com

Vishay Spectrol

(22.2 mm) Multi Turn Wirewound Potentiometer -

533: 3 Turns / 534: 10 Turns / 535: 5 Turns

FEATURES

•

Bushing and servo mount designs available

Linearitry ± 0.25 %, down to 0.05 % on request

Special resistance tolerances to 1 %

Rear shaft extensions and support bearing

Metric shaft available

Dual gang configuration and concentric shafts

High torque, center tap, slipping clutch on request

Special markings and front shaft extensions

Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

QUICK REFERENCE DATA

Sensor type

Output type

Market appliance

Dimensions

ROTATIONAL, multi turn wirewound

Output by turrets

Industrial

/ " (22.2 mm)

ELECTRICAL SPECIFICATIONS

PARAMETER

Resistance range - standard values

Capability range

Standard tolerance

Linearity (independent)

Noise

Rotation (electrical and mechanical)

Power rating (at 70 °C)

Insulation resistance

Dielectric strength

Absolute minimum resistance

Temperature coefficient

End voltage

Phasing

Taps

MODEL 533



to 20 k



to 60 k

±5%

± 0.25 %

100



ENR

1080°

+10°

-0°

MODEL 534

100



to 100 k



to 200 k

±5%

± 0.25 %

100



ENR

3600°

+10°

-0°

MODEL 535



to 50 k



to 100 k

±5%

± 0.25 %

100



ENR

1800°

+10°

-0°

1.0 W

2.0 W

1.5 W

1000 M minimum 500 V

1000 V

RMS

minimum 60 Hz

Not to exceed linearity x total resistance or 1

,

whichever is greater

20 ppm/°C (standard values, wire only)

0.25 % of total applied voltage, maximum

CCW end points - section 2 phased to section 1 within ± 2°

Center tap only

MARKING

Unit identification

Manufacturer’s name and model number,

resistance value and tolerance, linearity

specification date code and terminal

identification.

Example of a marking for a standard part:

534-11103

RESISTANCE VALUES

533

(

534

(

535

(

50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K

100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K, 100K

50, 100, 200, 500, 1K, 2K, 5K, 10K, 20K, 50K

ORDERING INFORMATION

MODEL

533

534

535

STYLE

Bushing

Servo

GANGS

OHMIC VALUE

GANGS N

470

= 47



222

= 2.200



103

= 10 k

For ohmic value

range see

electrical

specification

OHMIC VALUE

GANGS N

470

= 47



222

= 2.200



103

= 10 k

For ohmic value

range see

electrical

specification

TOLERANCE ON

OHMIC VALUE

=±5%

=±1%

LINEARITY

= ± 0.25 %

= ± 0.2 %

SPECIAL REQUEST

Special code

xxxx

PART NUMBER DESCRIPTION

(for information only)

534-

MODEL

STYLE

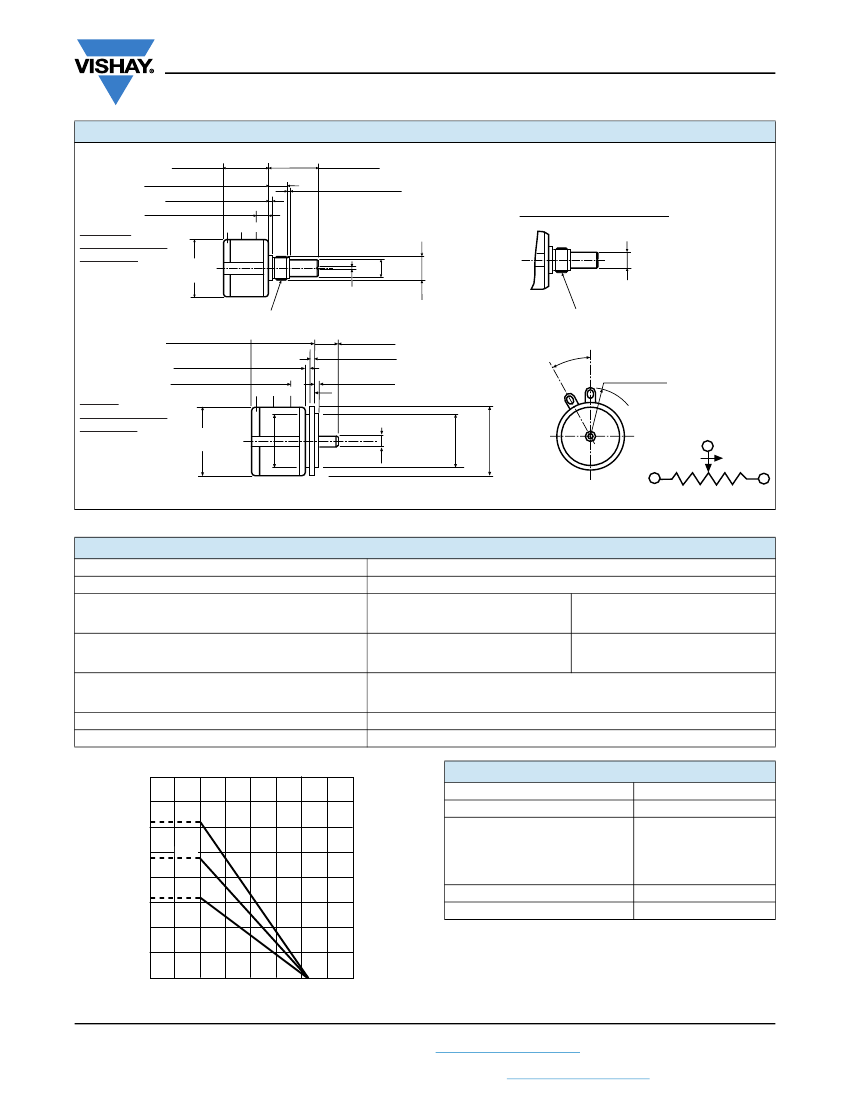

Revision: 25-Sep-17

Document Number: 57065

For technical questions, contact:

sferprecisionpot@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

GANGS

103

OHMIC VALUE

GANGS N

203

OHMIC VALUE

GANGS N

xxxx

SPECIAL

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000
