UUA1A101MCL1GS

Description
Analog to Digital Converters - ADC Low-Power Low-Noise 24-Bit ADC
CategoryPassive components    capacitor
File Size382KB,2 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric View All

UUA1A101MCL1GS Online Shopping

Suppliers Part Number Price MOQ In stock
UUA1A101MCL1GS - - View Buy Now

UUA1A101MCL1GS Overview

Analog to Digital Converters - ADC Low-Power Low-Noise 24-Bit ADC

UUA1A101MCL1GS Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerNichicon
package instruction, 2626
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance100 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
high7.7 mm
JESD-609 codee6
leakage current0.01 mA
length7 mm
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
Package formSMT
method of packingTape
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)10 V
ripple current81 mA
seriesUA
size code2626
surface mountYES
Delta tangent0.24
Terminal surfaceTin/Bismuth (Sn/Bi)
Terminal shapeFLAT
width6.6 mm

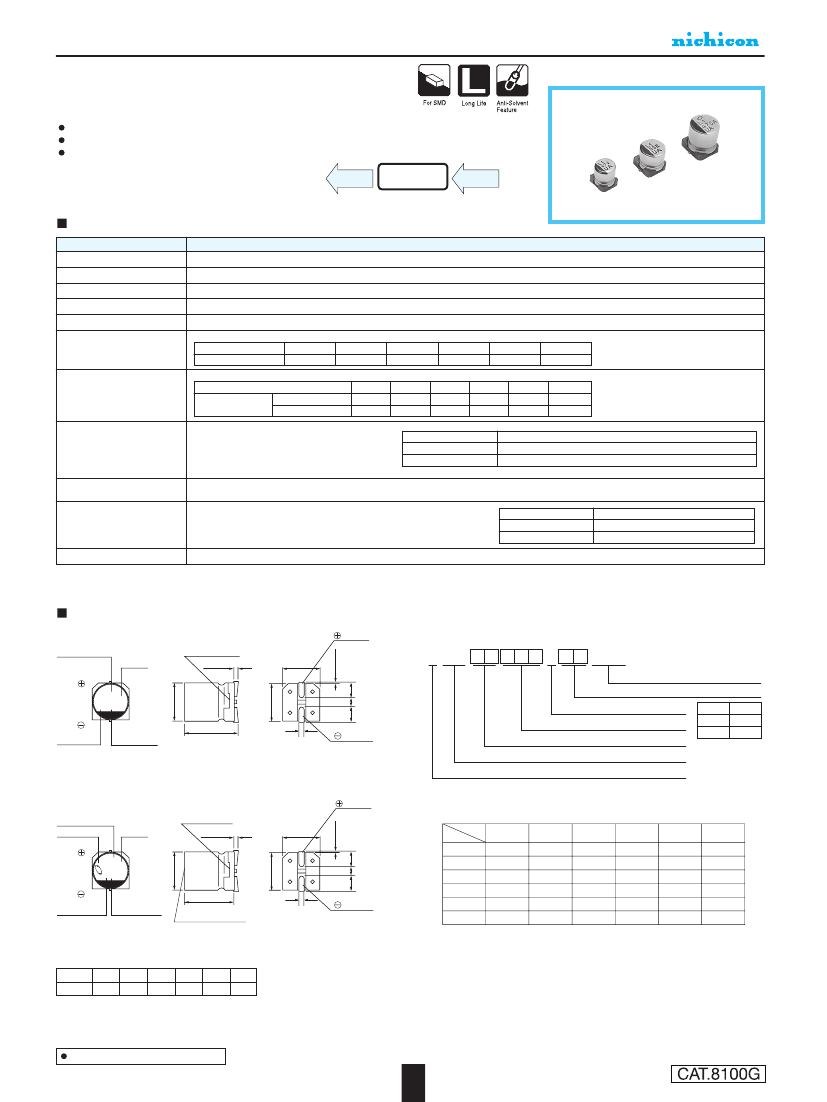

ALUMINUM ELECTROLYTIC CAPACITORS
UUA
Specifications
Item
6mmL Chip Type, Long Life Assurance
Chip type with load life of 3000 to 5000 hours at +105
°C
.
Designed for surface mounting on high density PC board.
Compliant to the RoHS directive (2011/65/EU).
UUL
Long Life
UUA
Long Life
UUT
Performance Characteristics
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan
δ)
–55 to +105°C
6.3 to 50V
1 to 1000µF
± 20% at 120Hz, 20°C
After 2 minutes' application of rated voltage at 20°C, leakage current is not more than 0.01 CV or 3 (µA) , whichever is greater.
Measurement frequency : 120Hz at 20°C
Rated voltage (V)
tan
δ
(MAX.)
6.3
0.28
10
0.24
6.3
4
10
16
0.20
10
3
7
25
0.16
16
2
5
25
2
3
35
0.13
35
2
3
50
0.12
50
2
3
Measurement frequency : 120Hz
Stability at Low Temperature
Rated voltage (V)
Z– 25°C / Z+20°C
Impedance ratio
ZT / Z20 (MAX.)
Z– 55°C / Z+20°C
Endurance
Shelf Life
Resistance to soldering
heat
Marking
The specifications listed at right shall be met
Within ±30% of the initial capacitance value
Capacitance change
when the capacitors are restored to 20°C
300% or less than the initial specified value
tan
δ
after the rated voltage is applied for 5000
Less than or equal to the initial specified value
Leakage current
φ
D = 4, 5 and 6.3) at
hours (3000 hours for
105°C.
After storing the capacitors under no load at 105°C for 1000 hours and then performing voltage treatment based on JIS C 5101-4
clause 4.1 at 20°C, they shall meet the specified values for the endurance characteristics listed above.
The capacitors are kept on a hot plate for 30 seconds, which is
Capacitance change
Within ±10% of the initial capacitance value
maintained at 250°C. The capacitors shall meet the characteristic
Less than or equal to the initial specified value
tan
δ
requirements listed at right when they are removed from the plate
Less than or equal to the initial specified value
Leakage current
and restored to 20°C.
Black print on the case top.
Chip Type
(φ4 to
φ6.3)
0.5MAX.
Voltage ( j : 6.3V)
Series
φD±0.5
Plastic platform
0.3MAX.
C±0.2
Positive
Type numbering system (Example : 16V 10
µ
F)
1
2
3
4
5
6
7
8
9 10 11 12 13 14
UU A 1 C 1 0 0 MC L 1 GS
Taping code
A±0.2 E A±0.2
B±0.2
A2
33 j
UA
Configuration
Capacitance tolerance (±20%)
Rated capacitance (10 µF)
Rated voltage (16V)
Series name
Type
φD
4 to 6.3
8
10
L±0.3
Lot No.
Capacitance
H
Negative
Code
CL
NL
(φ8,φ10)
0.5MAX.
Voltage ( V : 35V)
Trade mark
Plastic platform
Series
φD±0.5
0.3MAX.
C±0.2
Positive
(mm)
φD
×
L
4 × 5.8
1.8
4.3
4.3
1.0
5.8
0.5 to 0.8
5 × 5.8
2.1
5.3
5.3
1.3
5.8
0.5 to 0.8
6.3 × 5.8
2.4
6.6
6.6
2.2
5.8
0.5 to 0.8
6.3 × 7.7
2.4
6.6
6.6
2.2
7.7
0.5 to 0.8
8 × 10
2.9
8.3
8.3
3.1
10
0.8 to 1.1
10 × 10
3.2
10.3
10.3
4.5
10
0.8 to 1.1
A±0.2 E A±0.2
A
B
C
E
L
H
A2
100V
UA
B±0.2
L±0.5
H
Lot No.
Capacitance
Negative
Pressure relief vent
Voltage
V
6.3
Code
j
10
A
16
C
25
E
35
V
50
H
Dimension table in next page.
