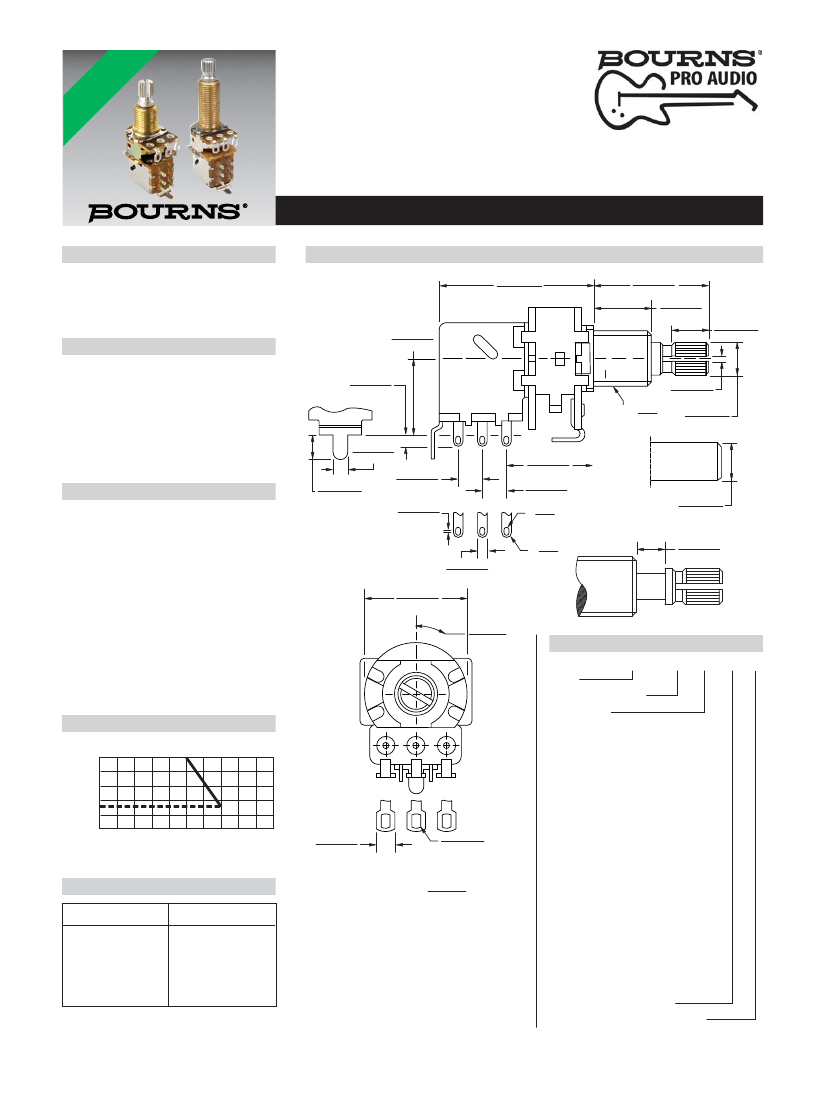

PDB183-GTR - 17 mm Guitar Potentiometer w/Push-Pull Switch
Electrical Characteristics
Taper.................................. Linear, audio
Standard Resistance Range
........................10K ohms to 1M ohms
Standard Resistance Tolerance....±20 %
Residual Resistance ................ 1 % max.
Environmental Characteristics
Operating Temperature
..................................-10 °C to +50 °C
Power Rating
Linear ..................................... 0.2 watt
Audio ...................................... 0.1 watt
Maximum Operating Voltage
Linear .........................................200 V
Audio ..........................................150 V
Sliding Noise........................47 mV max.
Mechanical Characteristics
Mechanical Angle ................... 300 ° ±5 °
Rotational Torque ...........30 to 100 g-cm
Stop Strength..................... 5 kg-cm min.
Rotational Life...................15,000 cycles
Switch Life ........................15,000 cycles
Switch Type .................................. DPDT
Switch Travel ..................... 4.3 ± 0.2 mm
(.169 ± .008 in.)
Soldering Condition
Manual/Wave
.........260 °C max. for 3 seconds max.
Wash ..................... Not recommended
Hardware .............. Two
fl
at washers and
two mounting nuts supplied per
potentiometer
Derating Curve

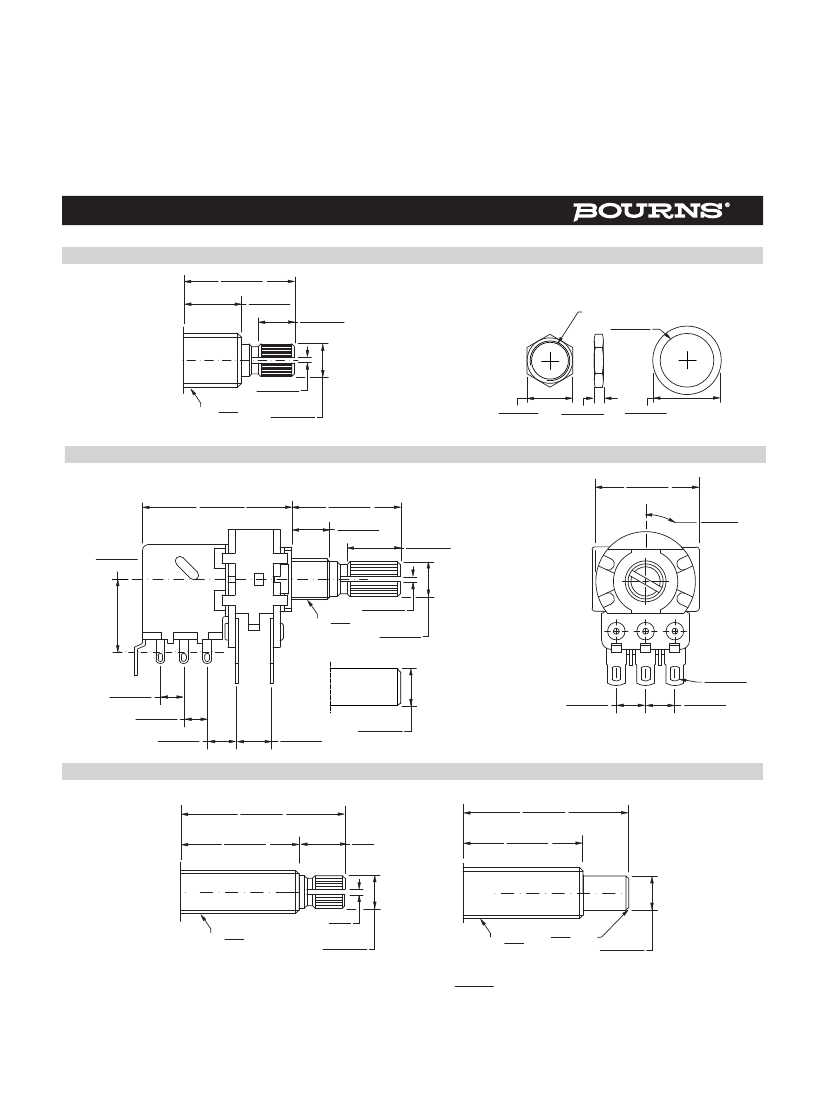

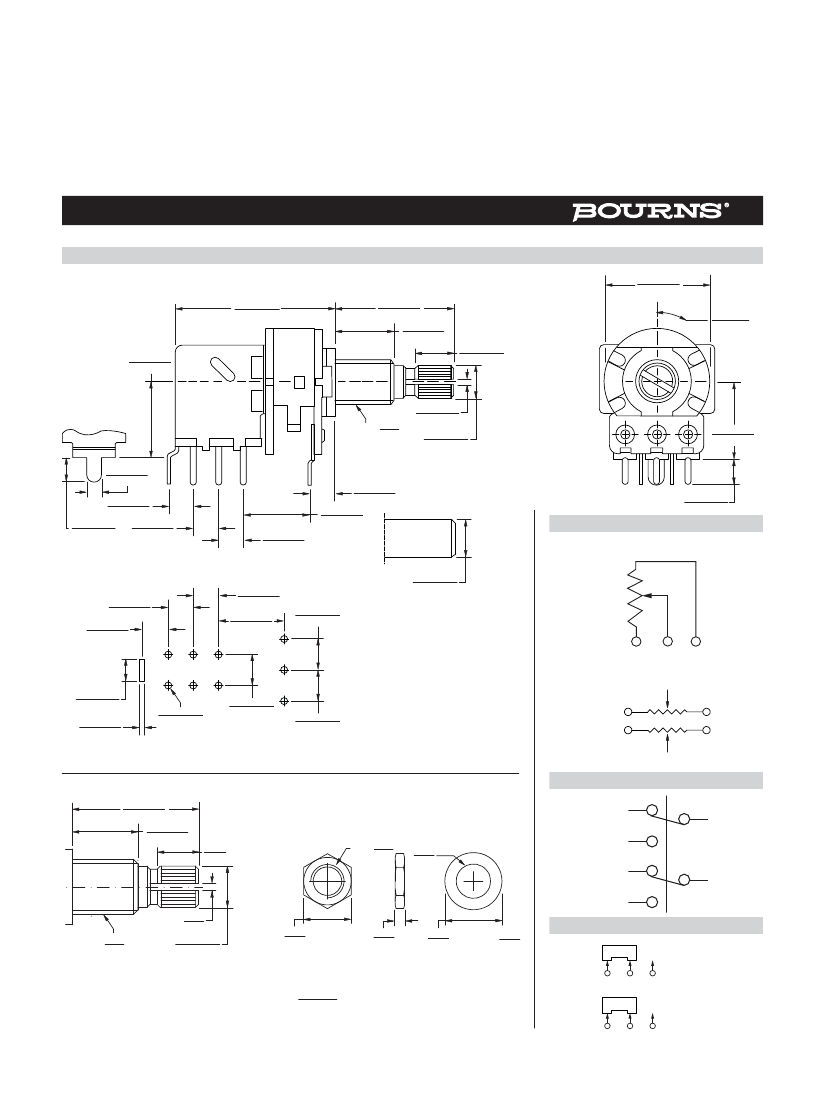

Product Dimensions
PDB183-GTR01,
PDB183-GTR02
26.2 ± 0.5
(1.031 ± .020)
19.0 ± 0.5
(.748 ± .020)
9.5 ± 0.3
(.374 ± .012)
6.0 ± 0.3
(.236 ± .012)
(18 TEETH)
12.5 ± 0.5
(.492 ± .020)
2.0 ± 0.3
(.079 ± .012)
3/8 ” X 0.75
(.030)
1.0 ± 0.3
(.039 ± .012)
6.0 ± 0.3
DIA.
(.236 ± .012)
2.5 ± 0.3
(.098 ± .012)
4.1 ± 0.3
(.161 ± .012)
4.0 ± 0.3
(.157 ± .012)
0.6 ± 0.3
(.024 ± .012)
14.45 ± 0.5
(.569 ± .020)
4.0 ± 0.3
(.157 ± .012)
R 0.4
(.016)
R 0.8
(.031)
1.5 ± 0.3
(.059 ± .012)
DIA.
6.0 ± 0.3
(.236 ± .012)
SWITCH TRAVEL
4.3 ± 0.2
(.169 ± .008)
(PLAIN
SHAFT)
17.0 ± 0.5
(.669 ± .020)
30 °
FULL CCW
How To Order
PDB183 - GTR 01 - 504 A2
Model
Guitar Pot Designator
Configuration
• 01 = Knurled Shaft (18 Tooth) /
Solder Lugs
• 02 = Plain Shaft / Solder Lugs
• 03 = Knurled Shaft (18 Tooth) /
PC Pins
• 04 = Plain Shaft/PC Pins
• 05 = Knurled Shaft (18 Tooth) /
Solder Lugs,
8 mm Bushing Diameter
3.0 ± 0.3
(.118 ± .012)
1.4 X 2.4
3 PLCS.
(.055 X .094)
Rating Power Ratio (%)
100
80
60
40
33
20
0
0
10 20 30 40 50 60 70 80 90 100
Ambient Temperature (°C)
• 11 = Knurled Shaft (24 Tooth) /
Solder Lugs
• 13 = Knurled Shaft (24 Tooth) /
PC Pins
• 21 = Knurled Shaft (18 Tooth) /
Solder Lugs / Dual Gang
• 22 = Plain Shaft / Solder Lugs/
Dual Gang
• 31 = Knurled Shaft (18 Tooth) /
Solder Lugs, Long Bushing
• 32 = Plain Shaft / Solder Lugs /
Long Bushing
Resistance Code (See table)
Resistance Taper (See taper charts)
Standard Resistance Table
Resistance
(Ohms)
10,000
25,000
50,000
100,000
250,000
300,000
500,000
1,000,000
Resistance
Code
103
253
503
104
254
304
504
105
DIMENSIONS:
MM
(INCHES)
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
PDB183-GTR - 17 mm Guitar Potentiometer w/Push-Pull Switch
Tapers
A Series Tapers
100
90
80
Terminal 1-2 Output Voltage
X 100 (%)
Terminal 1-3 Input Voltage
70
60
50
40
30
20
10
A3
A):
(15
A2
A):
(10
B0 Taper
100
90
80
Terminal 1-2 Output Voltage
X 100 (%)
Terminal 1-3 Input Voltage
70
60
50
40
30
20
10
C2 Taper
100
90
80
Terminal 1-2 Output Voltage
X 100 (%)
Terminal 1-3 Input Voltage
70
60
50
40
30
20
10
0
10
20
30
40
50
60
70
80
90
100
0
10
20
30
40
50
60
70
80
90
100
0
10
20
30
40
50
60
70
80
90
100
Rotational Travel (%)
Rotational Travel (%)
Rotational Travel (%)
Typical Part Marking
4.87
(.192)
4.99
(.197)
DIMENSIONS:
MM
(INCHES)
REV. 09/16
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
