LAQ2D102MELB45

Description
Aluminum Electrolytic Capacitors - Snap In 1000uF 200 Volts 0.2
CategoryPassive components    capacitor
File Size321KB,2 Pages
ManufacturerNichicon
Websitehttp://www.nichicon.co.jp
Environmental Compliance
Download Datasheet Parametric View All

LAQ2D102MELB45 Online Shopping

Suppliers Part Number Price MOQ In stock
LAQ2D102MELB45 - - View Buy Now

LAQ2D102MELB45 Overview

Aluminum Electrolytic Capacitors - Snap In 1000uF 200 Volts 0.2

LAQ2D102MELB45 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance1000 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter30 mm
dielectric materialsALUMINUM (WET)
JESD-609 codee3
leakage current1.34 mA
length45 mm
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
Package shapeCYLINDRICAL PACKAGE
Package formSnap-in
method of packingBulk
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)200 V
ripple current2400 mA
surface mountNO
Delta tangent0.2
Terminal surfaceMatte Tin (Sn)
Terminal pitch10 mm
Terminal shapeSNAP-IN
Base Number Matches1

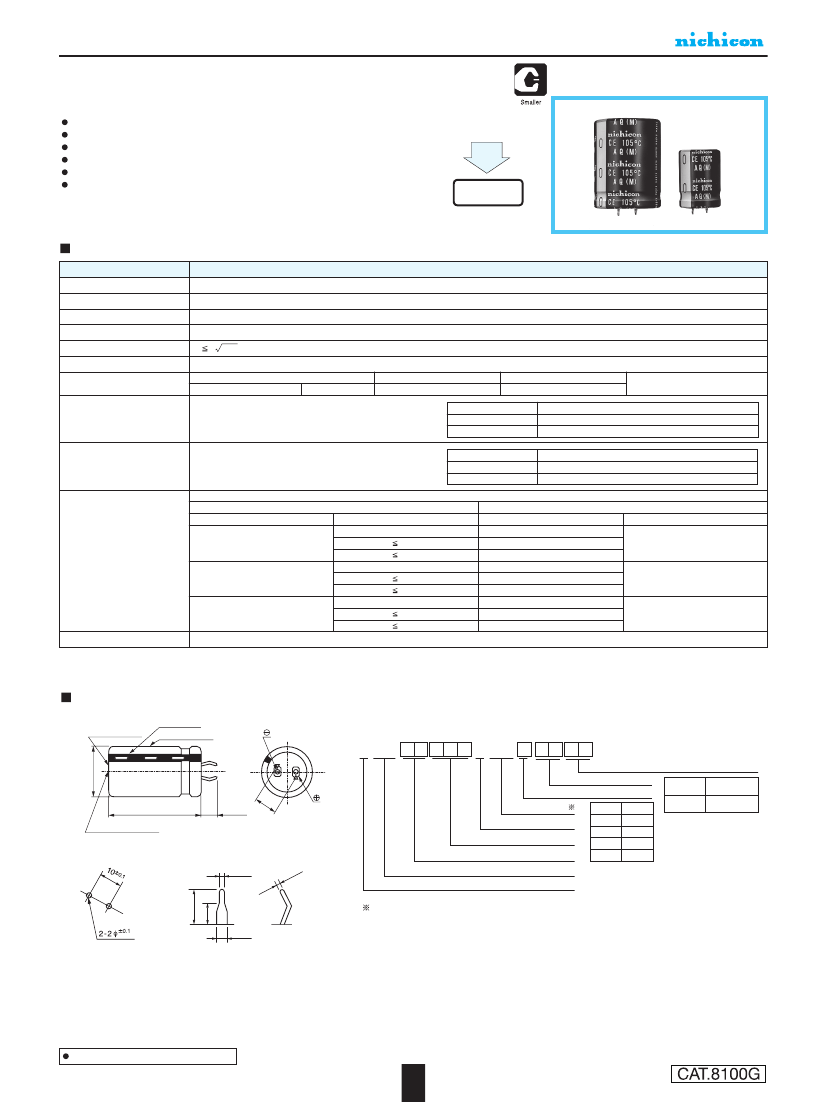

ALUMINUM ELECTROLYTIC CAPACITORS
LAQ
Snap-in Terminal Type, 105°C Permissible Abnormal Voltage,
Smaller-sized
Withstanding 2000 hours application of rated ripple current of 105
°C
.
Extended voltage range at 200V, 220V and 400V.
Smaller case sizes and higher ripple current than LAK.
Improved safety features for abnormally excessive voltage.
Ideally suited for the equipment used at voltage fluctuating area.
Compliant to the RoHS directive (2011/65/EU).
LAK
Smaller
LAQ
Specifications
Item
Category Temperature Range
Rated Voltage Range
Rated Capacitance Range
Capacitance Tolerance
Leakage Current
Tangent of loss angle (tan
δ)
Stability at Low Temperature
–25
to +105°C
Performance Characteristics
200
220
400V
33 to 1500µF
3
CV
± 20% at 120Hz, 20°C
3 CV
I
3 CV (µA) (After 5 minutes' application of rated voltage) [C : Rated Capacitance (µF) V : Voltage (V)]
Rated voltage(V)
Impedance ratio (MAX)
Z
25°C/Z+20°C
200
220
8
400
8
0.20MAX. 120Hz at 20°C
Measurement frequency : 120Hz
Endurance
The specifications listed at right shall be met when the
capacitors are restored to 20°C after D.C. bias plus rated
ripple current is applied for 2000 hours at 105°C, the
peak voltage shall not exceed the rated voltage.
After storing the capacitors under no load at 105°C for 1000
hours and then performing voltage treatment based
on JIS C 5101-4 clause 4.1 at 20°C,
they shall meet the requirements listed at right.
Capacitance change
tan
δ
Leakage current
Within ±20% of the initial capacitance value
200% or less than the initial specified value
Less than or equal to the initial specified value
Within ±15% of the initial capacitance value
150% or less than the initial specified value
Less than or equal to the initial specified value
Capacitance change
tan
δ
Leakage current
Shelf Life
Safety Performance
The pressure relief vent will operate in normal conditions, with no dangerous conditions such as flames, ignitions or dispersion of pieces of the capacitor and / or case.
Test conditions
Rating
Voltage (V)
Rated Capacitance (µF)
Limited DC current
Test voltage
4A
330
C < 330
330
C < 470
300VDC and 375VDC
200
5A
470
C
< 470
7A
4A
330
C < 330
320VDC and 405VDC
220
5A
C < 470
330
7A
470
C
< 470
2A
330
C < 100
4A
500VDC and 600VDC
400
C < 220
100
C
< 470
220
7A
Printed with white color letter on black sleeve
Marking
Drawing
Bottom plate
(code ZB only)
Polarity bar
Sleeve (P.E.T.)
Type numbering system (Example : 200V 680
µ
F)
1
2
3
4
5
6
7
8
9
10 11 12
13 14
15 16
L AQ 2 D 6 8 1 M E L A 4 0
φD
+1MAX.
Bottom Plate
Case length code
1
0
Case dia. code
Configuration
Capacitance tolerance (±20%)
Rated capacitance (680µF)
Rated voltage (200V)
.2
+0 .1
.8
-0
ZB
code less
2
4.0±0.5
Pressure relief vent
φD
22
25
30
35
Code
Z
A
B
C
With Bottom
Plate
Without
Bottom Plate
0.8
+0.2
-0.1
0
Series name
Type
4.0
±
0.5
(2.5)
Please contact to us if other configurations are required.
1.5
+0.2
-0.1
(PC board hole dimensions)
(Terminal dimensions)
Minimum order quantity : 50pcs.
Dimension table in next page.
