UHC1C331MPD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UHC1C331MPD

UHC1C331MPD: DescriptionAluminum Electrolytic Capacitors - Leaded 16volts 330uF 10x12.5 u002720% 5LS; CategoryPassive components; File Size38KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

UHC1C331MPD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	UHC1C331MPD	-	-	View	Buy Now

UHC1C331MPD Overview

Aluminum Electrolytic Capacitors - Leaded 16volts 330uF 10x12.5 u002720% 5LS

UHC1C331MPD Parametric

Parameter Name	Attribute value
Product Category	Aluminum Electrolytic Capacitors - Leaded
Manufacturer	Nichicon
RoHS	Details
Termination Style	Radial
Capacitance	330 uF
Voltage Rating DC	16 VDC
Tolerance	20 %
Ripple Current	1230 mA
Maximum Operating Temperature	+ 105 C
Diameter	12.5 mm
Length	25 mm
Lead Spacing	5 mm
Product	Low Impedance Electrolytic Capacitors
Packaging	Bulk
Lead Style	Cut
Leakage Current	52.8 uA
Minimum Operating Temperature	- 40 C
Factory Pack Quantity	100

Preview

Download Datasheet

View All

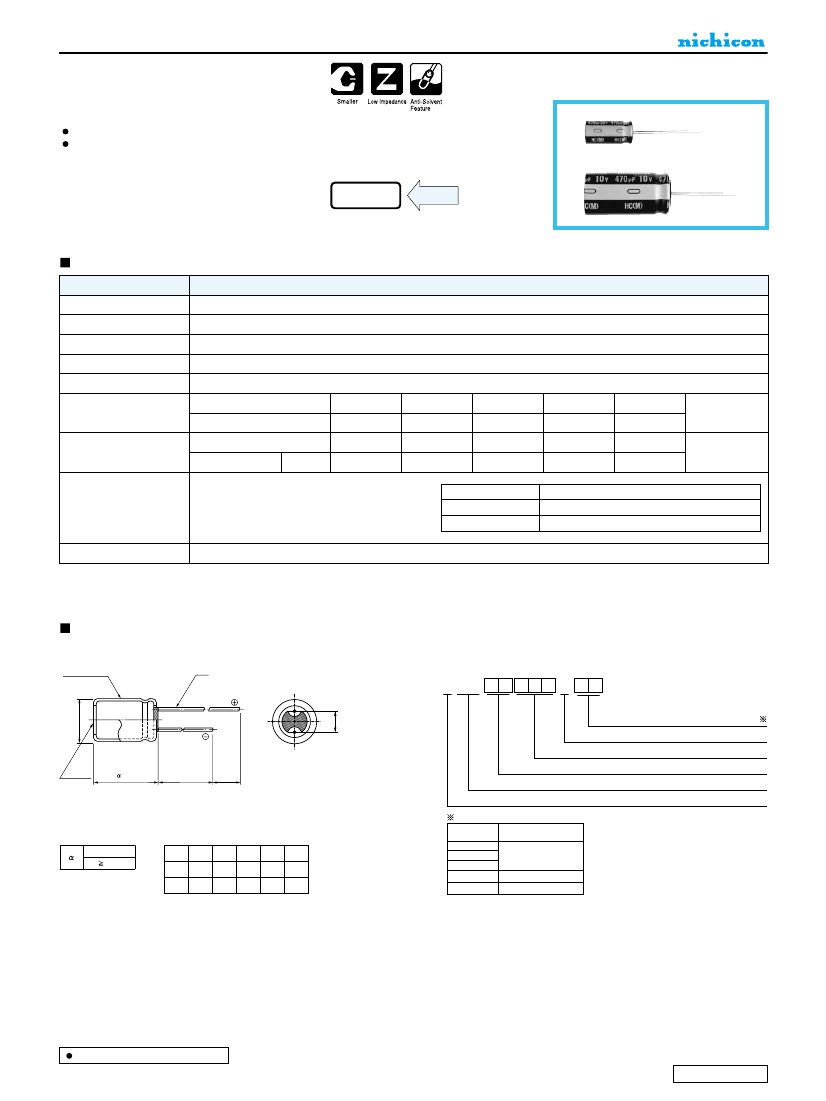

ALUMINUM ELECTROLYTIC CAPACITORS

Low Impedance

series

Approved by Reliability Center for Electronic

Component, Japan-Certification No. RCJ-03-23C

Lower impedance than HD series.

Compliant to the RoHS directive (2002/95/EC).

Low

Impedance

Specifications

ltem

Category Temperature Range

– 40 to +105˚C

Rated Voltage Range

6.3 to 35V

Performance Characteristics

Rated Capacitance Range

4.7 to 1000µF

Capacitance Tolerance

Leakage Current

Tangent of loss angle (tan

δ)

± 20% at 120Hz, 20˚C

After 2 minutes' application of rated voltage, leakage current is less than 0.01CV or 3 (µA), whichever is greater.

Rated voltage (V)

tan

(MAX.)

Rated voltage (V)

6.3

0.15

6.3

0.13

0.12

Capacitance change

tan

Leakage current

0.10

120Hz 20˚C

Stability at Low Temperature

Impedance ratio ZT / Z20 (MAX.) Z–40˚C / Z+20˚C

The specifications listed at right shall be met when the

capacitors are restored to 20

˚C

after D.C. bias plus

rated ripple current is applied for 2000 hours (1000

hours for

φD=4,

5 and 6.3) at 105

˚C

, the peak voltage

shall not exceed the rated voltage.

Printed with white color letter on black sleeve.

120Hz

Within ± 20% of the initial capacitance value

200% or less than the initial specified value

Less than or equal to the initial specified value

Endurance

Marking

Radial Lead Type

Type numbering system (Example : 10V 470µF)

Sleeve (P.E.T.)

10 11

UHC 1 A 4 7 1 M PD

φD

0.5 MAX.

0.5

Configuration

Capacitance tolerance (± 20%)

Rated capacitance (470µF)

Pressure

relief vent

(φ6.3up)

L+

MAX.

MIN

Rated voltage (10V)

Series name

Type

Configuration

(mm)

(No pressure relief vent for 7mmL products)

6.3 (7L)

6.3 (11L)

8 · 10

Pb-free leadwire

Pb-free PET sleeve

(L = 7) 1.0

(L 11) 1.5

φD

φd

1.5

0.45

2.0

6.3

3.5

0.6

5.0

0.6

2.5

0.5

0.45 (0.45)

( ) : Applied to 7mmL products

•

Please refer to page 20 about the end seal configulation.

Please refer to page 20, 21, 22 about the formed or taped product spec.

Please refer to page 4 for the minimum order quantity.

Dimension table in next page.

CAT.8100Y

UHC1C331MPD Related Products

	UHC1C331MPD	UHC1A330MDD	UHC0J470MDD
Description	Aluminum Electrolytic Capacitors - Leaded 16volts 330uF 10x12.5 u002720% 5LS		Aluminum Electrolytic Capacitors - Leaded 6.3volts 47uF 5x7 20% 2LS
Is it lead-free?	-	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to
Maker	-	Nichicon	Nichicon
Reach Compliance Code	-	compliant	compliant
ECCN code	-	EAR99	EAR99
capacitance	-	33 µF	47 µF
Capacitor type	-	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	-	5 mm	5 mm
dielectric materials	-	ALUMINUM (WET)	ALUMINUM (WET)
JESD-609 code	-	e3	e3
leakage current	-	0.0033 mA	0.003 mA
length	-	7 mm	7 mm
Manufacturer's serial number	-	HC	HC
Installation features	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	-	20%	20%
Number of terminals	-	2	2
Maximum operating temperature	-	105 °C	105 °C
Minimum operating temperature	-	-40 °C	-40 °C
Package shape	-	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
Package form	-	Radial	Radial
method of packing	-	Bulk	Bulk
polarity	-	POLARIZED	POLARIZED
positive tolerance	-	20%	20%
Rated (DC) voltage (URdc)	-	10 V	6.3 V
ripple current	-	140 mA	164.5 mA
series	-	HC	HC
surface mount	-	NO	NO
Delta tangent	-	0.13	0.15
Terminal surface	-	Matte Tin (Sn)	Matte Tin (Sn)
Terminal pitch	-	2 mm	2 mm
Terminal shape	-	WIRE	WIRE
