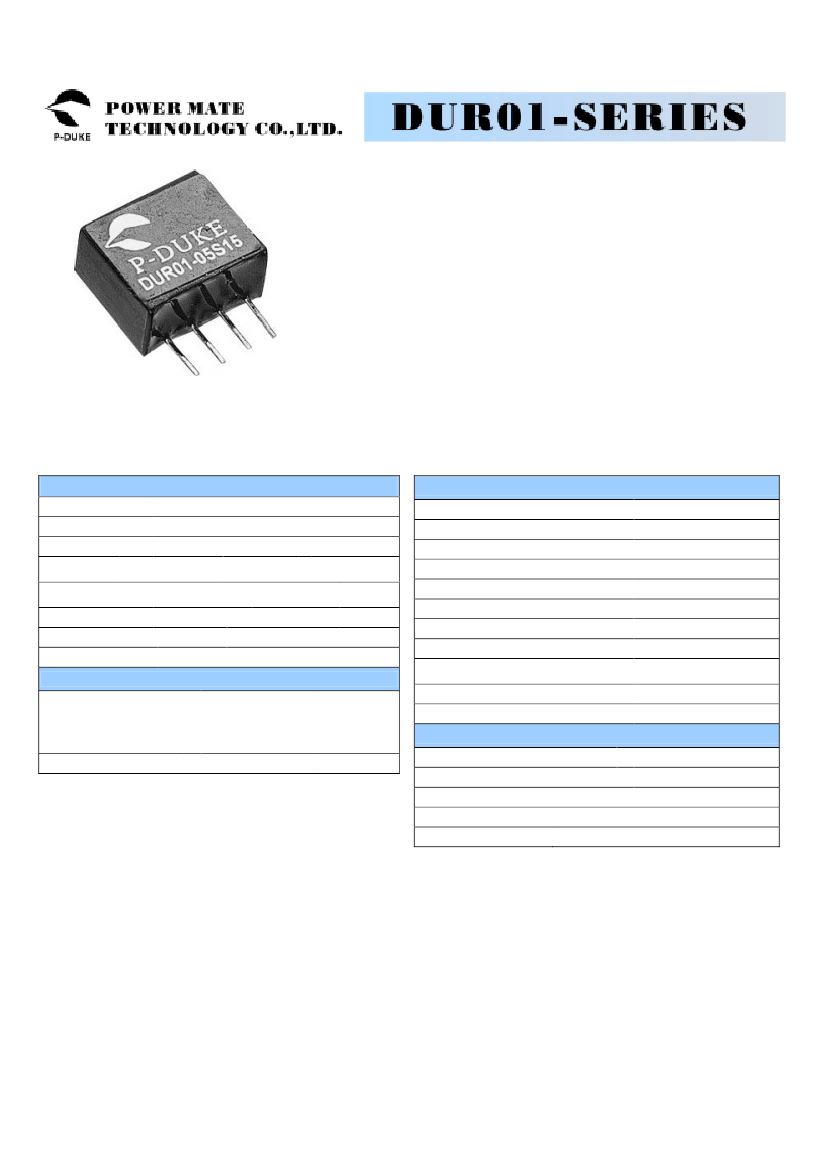

1 WATT UNREGULATED OUTPUT POWER
•
4 PIN SINGLE-IN-LINE PACKAGE (SIP)
•
HIGH EFFICIENCY FOR LOW POWER APPLICATION
•
UL 94-V0 NON-CONDUCTED CASE
•
INTERNAL INPUT & OUTPUT FILTER
•
INPUT / OUTPUT ISOLATION UP TO 1KVDC
The DUR01 series are the standard building blocks for on-board distributed power
systems. They are ideally suited to providing single and dual supplies on primarily
digital boards with added benefit of galvanic isolation to reduce switching noise. All
of the rated power may be drawn from a single pin provided the total load does not
exceed 1 watt.
T E C H N I C A L S P E C I F I C AT I O N
OUTPUT SPECIFICATIONS
Output power
Voltage accuracy
Minimum load (Note 1)
Line regulation LL to HL at Full Load
Load regulation
Ripple and noise
Temperature coefficient
Short circuit protection
Full load and nominal Vin
All specifications are typical at nominal input, full load and 25ºC otherwise noted
GENERAL SPECIFICATIONS
1 Watt max
± 5%
10% of FL
of Vin
of Vin
± 15%
± 10%
Efficiency
Isolation voltage
Isolation resistance
Isolation capacitance
Switching frequency
Design meet safety standard
Case material
Potting material
Dimensions
9
See table
1000VDC, min
10 ohms, min
80pF, typ.
90KHz, typ
UL1950, EN60950
Non-conducted black plastic
Epoxy (UL94-V0)
0.45 X 0.24 X 0.40 Inch
(11.5 X 6.0 X 10.2 mm)
1.5g (0.053oz)
1.137 x 10
9
hrs
3.3V & 5V output 1.3%/1%
others
1.2%/1%
3.3V & 5V output
10% to 100% FL
others
20MHz bandwidth
100mVp-p
I0.1%
/ ºC, max
Short term
INPUT SPECIFICATIONS
Input voltage range
3.3V nominal input
5V nominal input
12V nominal input
15V nominal input
24V nominal input
3.0 – 3.6VDC
4.5 – 5.5VDC
10.8 – 13.2VDC
13.5 – 16.5VDC
21.6 – 26.4VDC
Capacitor
Weight
MTBF (Note 2)
ENVIRONMENTAL SPECIFICATIONS
Operating temperature range
Storage temperature range
Thermal shock
Vibration
Relative humidity
-40ºC ~ +85ºC (with derating)
-55ºC ~ +105ºC
MIL-STD-810D
10~55Hz, 2G, 30minutes along X,Y and Z
5% to 95% RH
Input filter
Model
Number
DUR01-33S33
DUR01-33S05
DUR01-33S12
DUR01-33S15
DUR01-05S33
DUR01-05S05
DUR01-05S12
DUR01-05S15
DUR01-12S33
DUR01-12S05
DUR01-12S12
DUR01-12S15
DUR01-15S33
DUR01-15S05
DUR01-15S12
DUR01-15S15
DUR01-24S33
DUR01-24S05
DUR01-24S12
DUR01-24S15
Input
Range
3.0 – 3.6 VDC
3.0 – 3.6 VDC
3.0 – 3.6 VDC
3.0 – 3.6 VDC
4.5 – 5.5 VDC
4.5 – 5.5 VDC
4.5 – 5.5 VDC
4.5 – 5.5 VDC
10.8 – 13.2 VDC
10.8 – 13.2 VDC
10.8 – 13.2 VDC
10.8 – 13.2 VDC
13.5 – 16.5 VDC
13.5 – 16.5 VDC
13.5 – 16.5 VDC
13.5 – 16.5 VDC
21.6 – 26.4 VDC
21.6 – 26.4 VDC
21.6 – 26.4 VDC
21.6 – 26.4 VDC
Output
Voltage
3.3 VDC
5 VDC
12 VDC
15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
Output
Current
303mA
200mA
84mA
66mA
303mA
200mA
84mA
66mA
303mA
200mA
84mA
66mA
303mA
200mA
84mA
66mA
303mA
200mA
84mA
66mA
Input
(3)
Current
473mA
451mA
449mA
423mA
312mA
303mA
272mA
262mA
131mA
126mA
113mA
109mA
105mA
101mA
91mA
87mA
64mA
63mA
57mA
54mA
Eff
(%)
68
70
72
75
68
70
78
80
68
70
78
80
68
70
78
80
70
70
78
80
(4)
Capacitor
(5)
Load max
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
6.2uF
Note
1.
The DUR01 series required a minimum 10% loading on the output to
maintain specified regulation. Operation under no-load condition will not
damage these devices, however they may not meet all listed
specification
BELLCORE TR-NWT-000332. Case I: 50% Stress, Temperature at 40ºC.
(Ground fixed and controlled environment)
Maximum value at nominal input voltage and full load of standard type.
Typical value at nominal input voltage and full load.
Test by minimum Vin and constant resistor load.

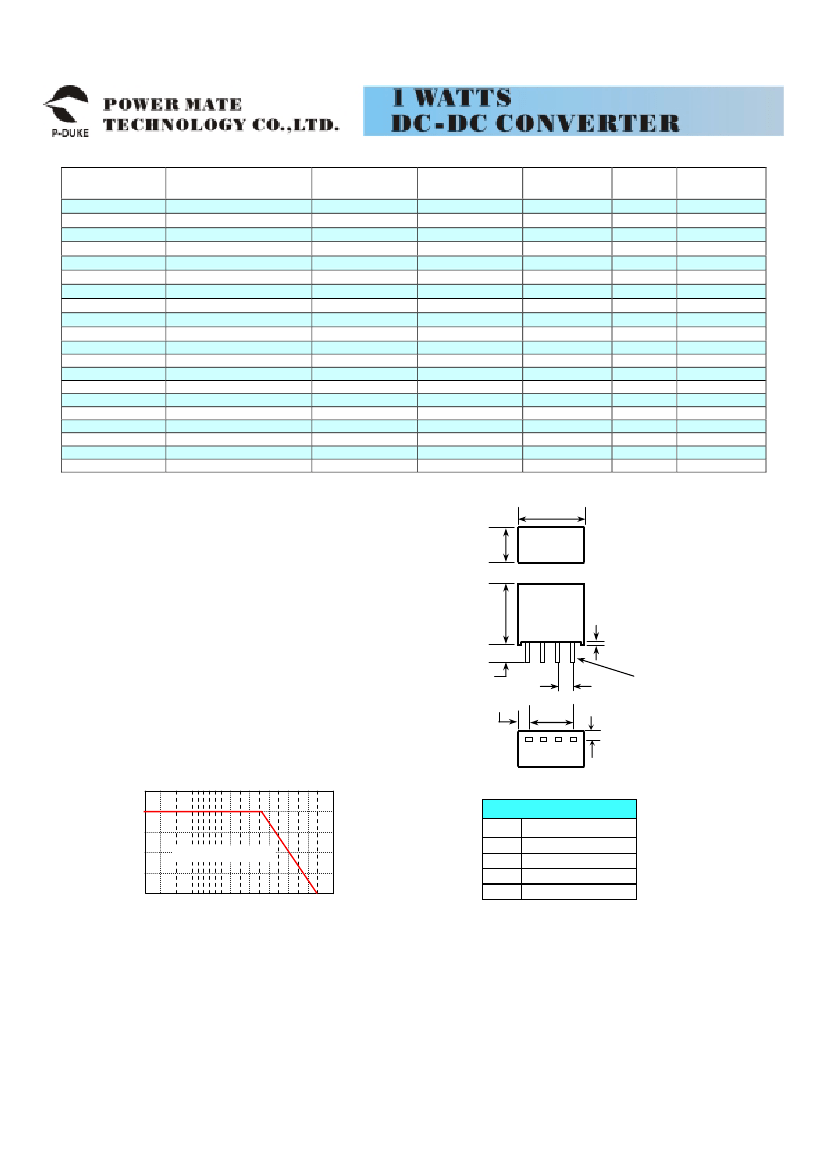

0.45(11.5)
0.24(6.0)
2.
3.
4.
5.
0.40(10.2)
FRONT VIEW
0.02(0.5)
0.16(4.1)
0.08(2.03)
0.30(7.6)
1 2 3 4
0.10(2.5)
0.01x 0.02 ( 0.25 x 0.5)
Rectangular Pin
BOTTOM VIEW
All dimensions in Inches (mm)
Pin pitch tolerance
I0.014(0.35)
0.05(1.2)
OUTPUT POWER (%)
DUR01-24S05 Derating Curve
100
75
50
25
0
-40 -25 -10 0
50 60 70 80 90 100
STANDARD
PIN
SINGLE
- INPUT
+ INPUT
- OUTPUT
+ OUTPUT
1
2
3
4
Nature convection
AMBIENT TEMPERATURE (ºC)
