LFXTAL062900Reel

Description
Crystals 20MHz 10pF -20C 70C
CategoryPassive components
File Size271KB,1 Pages
ManufacturerIQD
Download Datasheet Parametric Compare View All

LFXTAL062900Reel Online Shopping

Suppliers Part Number Price MOQ In stock
LFXTAL062900Reel - - View Buy Now

LFXTAL062900Reel Overview

Crystals 20MHz 10pF -20C 70C

LFXTAL062900Reel Parametric

Parameter NameAttribute value
Product CategoryCrystals
ManufacturerIQD
RoHSDetails
Termination StyleSMD/SMT
Package / Case5 mm x 3.2 mm
Load Capacitance10 pF
Frequency20 MHz
Tolerance30 PPM
Frequency Stability30 PPM
Drive Level100 uW
Minimum Operating Temperature- 20 C
Maximum Operating Temperature+ 70 C
Length5 mm
Width3.2 mm
Height1 mm
PackagingMouseReel
PackagingCut Tape
PackagingReel
ESR50 Ohms
Lead Spacing-
Mounting StyleSMD/SMT
ProductCrystals
Factory Pack Quantity1000
TypeQuartz Crystal

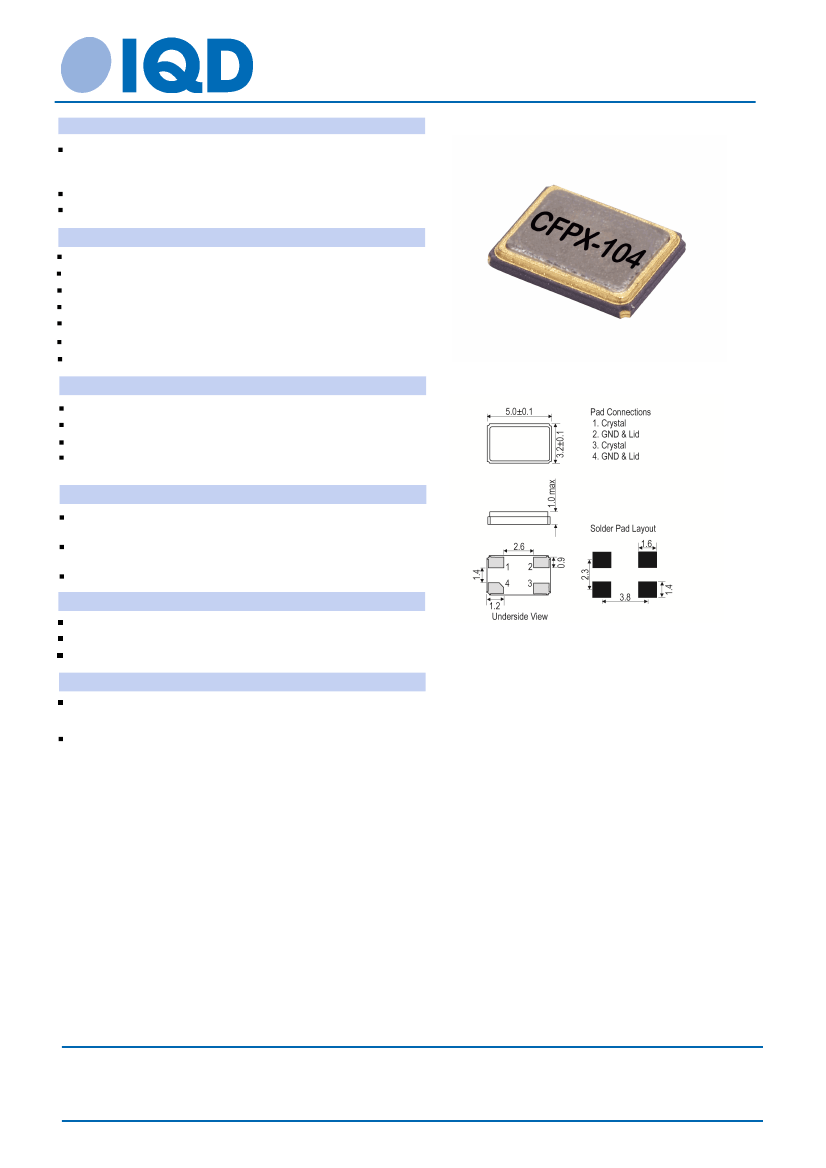

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL062900Reel
Description
Standard 5x3.2mm SMD crystal with four pads.
Ceramic package with a seam sealed metal lid, hermetically
sealed.
Model
CFPX-104
Model Issue number
9
Frequency Parameters
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
20.0MHz
±30.00ppm
@ 25°C
±
30.00ppm
-20.00 to 70.00°C
Fundamental
±3ppm max per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
10.00pF
7pF max
100µW max
50.00Ω max
Shock: 1500G, 0.5ms, 3 times in each of 3 mutually
perpendicular planes
Vibration: 20G (20Hz-2000Hz), 1.52mm amplitude, 20mins in
3 mutually perpendicular planes, 4 cycles
Storage Temperature Range: -55 to 125°C
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
Printed on 28 Sep 16 16:32 using Part Data Sheet V1.00014
