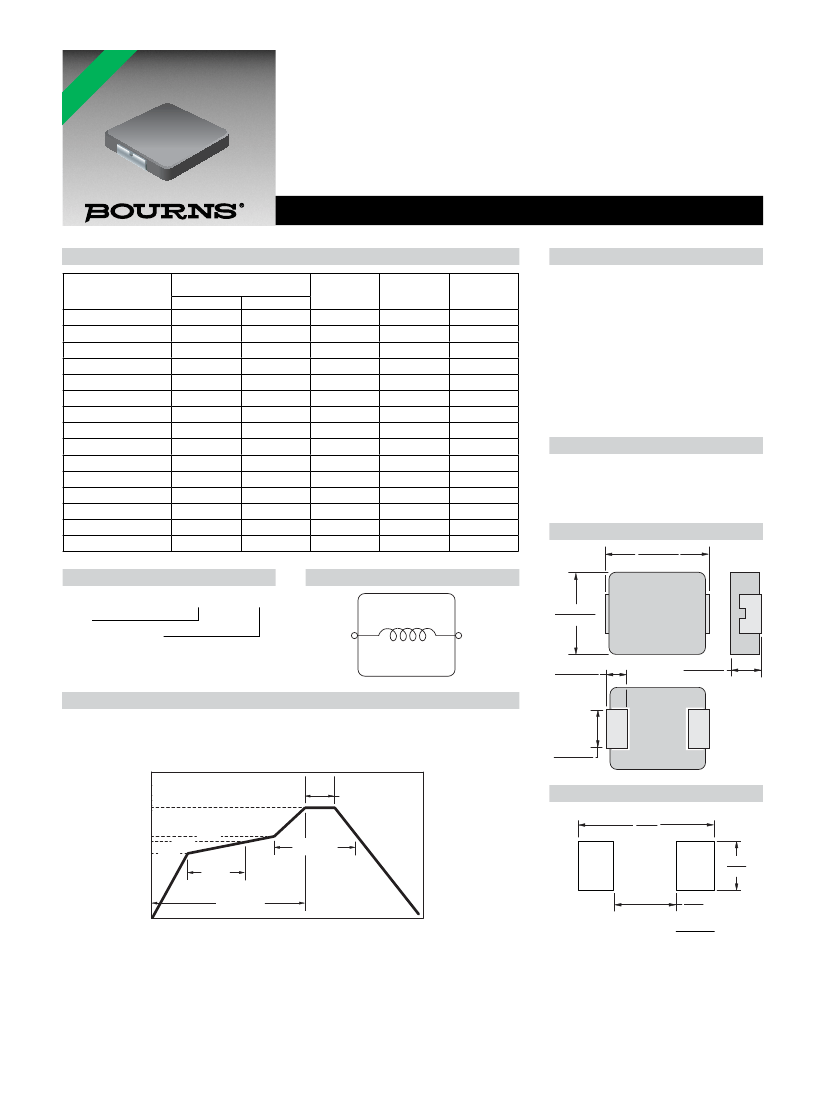

Features
■
Shielded construction
Applications
■
Automotive systems:
R7
4
Inductance
@ 100 KHz / 1 V
L (µH)
Tol. (%)
■
Carbonyl powder core
■
High saturation current
■
Low profile - 1.0 mm
■
Inductance range: 0.10 to 10 µH
■
AEC-Q200 qualified
■
RoHS compliant* and halogen free**
- Driver assistant
- Information
- Entertainment
- Lighting
■
DC/DC converters
■
Power supplies
SRP4012TA Series - Shielded Power Inductors
Electrical Specifications @ 25 °C
Bourns
Part Number
DCR
(mΩ) Max.
Irms
(A)
Isat
(A)
General Specifications
Test Voltage ....................................1.0 V
Test Frequency ......................... 100 KHz
Operating Temperature
................................-40 °C to +150 °C
(Temperature rise included)
Storage Temperature
................................-40 °C to +125 °C
Rated Current
............ Inductance drops 20 % at Isat
Temperature Rise .....40 °C at rated Irms
Resistance to Soldering Heat
........................ +260 °C, 40 sec. max.
Materials
Core .............................Carbonyl powder
Wire ............................Enameled copper
Terminal Finish ...................................Sn
Packaging ..... 4000 pcs. per 13-inch reel
Product Dimensions
4.45 ± 0.25
(.175 ± .010)
SRP4012TA-R10Y
SRP4012TA-R22M
SRP4012TA-R36M
SRP4012TA-R47M
SRP4012TA-R60M
SRP4012TA-1R0M
SRP4012TA-1R2M
SRP4012TA-1R5M
SRP4012TA-2R2M
SRP4012TA-3R3M
SRP4012TA-4R7M
SRP4012TA-5R6M
SRP4012TA-6R8M
SRP4012TA-8R2M
SRP4012TA-100M
0.10
0.22
0.36
0.47
0.60
1.0
1.2
1.5
2.2
3.3
4.7
5.6
6.8
8.2
10.0
±30
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
±20
5.5
8
18
20
26
47
56
63.3
80
97
145
208
360
376
463
11.5
8.5
6.5
6.0
5.3
4.0
3.5
3.0
2.8
2.3
2.0
1.7
1.5
1.4
1.3
25
20
8.5
6.5
6
6
5
4
3.5
3
2.5
2.3
1.7
1.6
1.4
How to Order
Electrical Schematic
SRP4012TA - 100M
Model
Value Code (see table)
1.0 ± 0.2
(.039 + .008)
4.06 ± 0.25
(.042 ± .010)
2R2
0.76 ± 0.3
(.030 ± .012)
Soldering Profile
Peak Temperature 260
max.
Max. Peak Temperature 260
40 sec. max.
Max. Time Above 217 : 60~150 sec. max.
Preheating
Soldering
Natural Cooling
2.0 ± 0.2
(.079 ± .008)
Temperature (°C)
Peak Temperature (260 °C, 40 Sec. Max.)
20~40 Sec.
Recommended Layout
5.2
(.205)
200 °C
150°C
217 °C
60~150 Sec.
60~180
Sec.
480 Sec. Max.
2.3
(.091)
2.2
(.087)
25
Time (Seconds)
Reflow Times: 3 Times Max.
DIMENSIONS:
MM
(INCHES)
* RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
** Bourns follows the prevailing definition of “halogen free” in the industry. Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less;
(b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
SRP4012TA Series Shielded Power Inductors
SRF0504 Series -
-
Line Filter

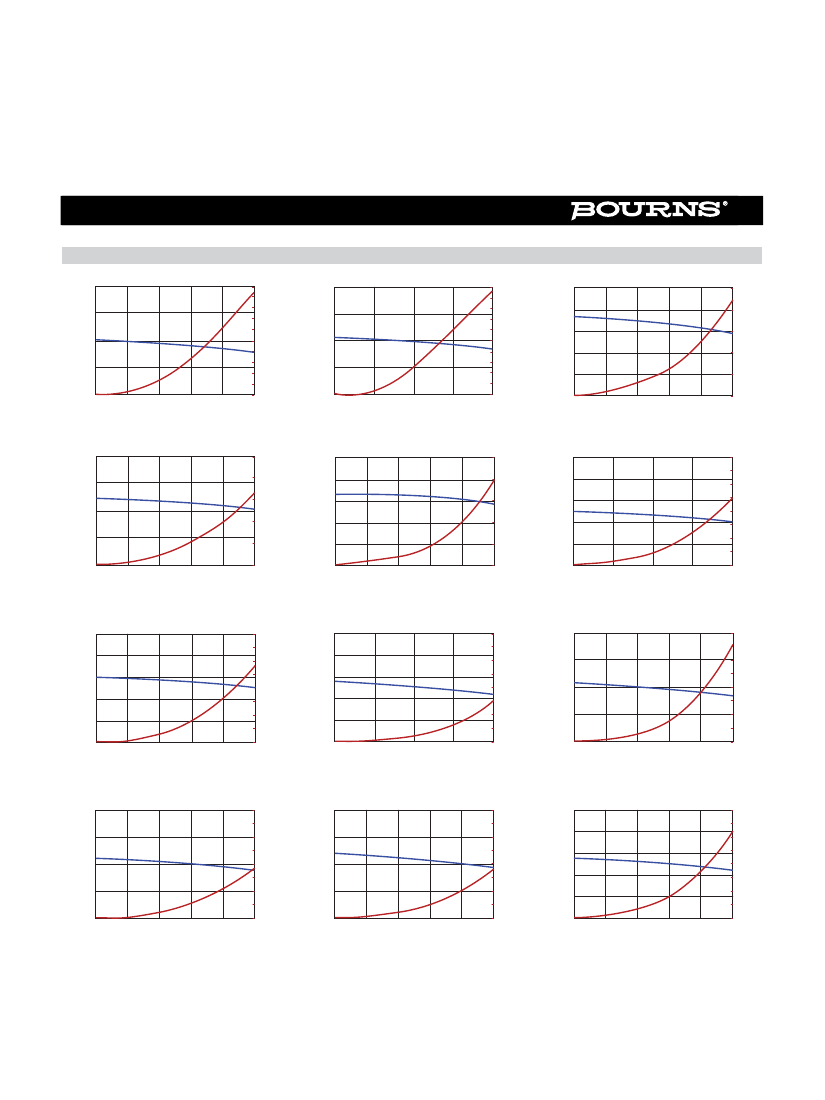

L vs. I Charts
0.20
SRP4012TA-R10Y
100
90
0.4
SRP4012TA-R22M
100
90
0.5
SRP4012TA-R36M
80
54
48
32
16
0
10
Temperature Rise (°C)
Inductance (μH)
Inductance (μH)
70
60
50
40
30
20
10
0
25
70
60
50
40
30
20
10
0
20
Inductance (μH)
0.15
0.3
Temperature Rise (°C)
0.4
0.3
0.2
0.1
0
0
2
4
6
8
0.10
0.2
0.05
0.1
0
0
5
10
15
20
0
0
5
10
15
DC Current (A)
DC Current (A)
DC Current (A)
0.8
SRP4012TA-R47M
15
1.0
SRP4012TA-R60M
40
32
24
16
8
0
6.0
2.0
SRP4012TA-1R0M
80
70
Temperature Rise (°C)
Inductance (μH)
Inductance (μH)
Inductance (μH)
0.6
0.8
0.6
0.4
0.2
0
0
1.2
2.4
3.6
4.8
Temperature Rise (°C)
60
50
40
9
0.4
6
0.2
3
0
6.0
1.2
0.8
0.4
0
0
1.5
3.0
4.5
30
20
10
0
0
1.2
2.4
3.6
4.8
0
6.0
DC Current (A)
DC Current (A)
DC Current (A)
2.0
1.6
SRP4012TA-1R2M
80
70
3.0
SRP4012TA-1R5M
80
70
4
SRP4012TA-2R2M
80
70
Temperature Rise (°C)
Temperature Rise (°C)
Inductance (μH)
Inductance (μH)
Inductance (μH)
60
50
40
2.4
1.8
1.2
0.6
0
0
1.075
2.150
3.225
60
50
40
30
20
10
0
4.300
3
60
50
1.2
0.8
0.4
0
0
1
2
3
4
5
2
40
30
30
20
10
0
1
20
10
0
0
1
2
3
4
5
0
DC Current (A)
DC Current (A)
DC Current (A)
6.0
SRP4012TA-3R3M
80
70
8
SRP4012TA-4R7M
80
70
10
SRP4012TA-5R6M
80
70
Temperature Rise (°C)
Inductance (μH)
Inductance (μH)
50
3.0
40
30
1.5
20
10
0
0
0.7
1.4
2.1
2.8
0
3.5
50
4
40
30
2
20
10
0
0
0.6
1.2
1.8
2.4
0
3.0
Inductance (μH)
4.5
60
6
60
Temperature Rise (°C)
60
50
40
6
4
2
0
0
0.5
1.0
1.5
2.0
30
20
10
0
2.5
DC Current (A)
DC Current (A)
DC Current (A)
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
Temperature Rise (°C)
8
Temperature Rise (°C)
Temperature Rise (°C)
12
1.6
Temperature Rise (°C)
80
80
SRP4012TA Series - Shielded Power Inductors
L vs. I Charts
12
SRP4012TA-6R8M
80
70
16
SRP4012TA-8R2M
80
70
20
SRP4012TA-100M
80
70
Temperature Rise (°C)
Temperature Rise (°C)
Inductance (μH)
Inductance (μH)
50
6
40
30
3
20
10
0
0
0.475
0.950
1.425
0
1.900
50
8
40
30
4
20
10
0
0
0.45
0.90
1.35
0
1.80
Inductance (μH)
9
60
12
60
60
50
40
12
8
4
0
0
0.3
0.6
0.9
1.2
30
20
10
0
1.5
DC Current (A)
DC Current (A)
DC Current (A)

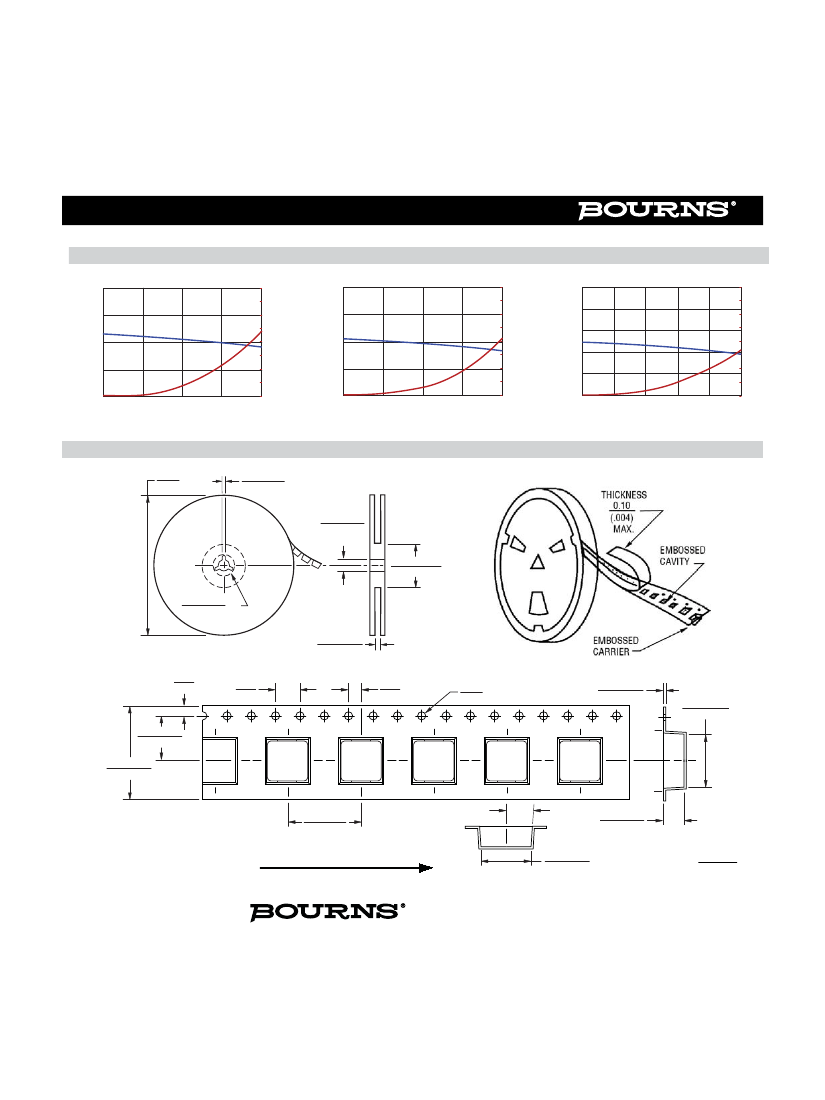

Packaging Specifications
330
DIA.
(12.99)
2.0 ± 0.5
(.079 ± .020)
13.5 ± 0.5
(.531 ± .020)
DIA.
100.0 ± 2.0
(3.937 ± .079)
13.5 ± 0.5
DIA.
(.531 ± .020)
12.0 ± 0.5
(.472 ± .020)
1.75
(.069)
4.0
(.157)
2.0
(.079)
1.5
DIA.
(.059)
0.35 ± 0.05
(.014 ± .002)
5.0 ± 0.1
(.197 ± .004)
5.5 ± 0.1
(.217 ± .004)
Marking
Marking
Marking
Marking
Marking
Marking
12.0 ± 0.3
(.472 ± .012)
8.0 ± 0.1
(.315 ± .004)
3°
1.5 ± 0.1
(.059 ± .004)
USER DIRECTION OF FEED
4.5 ± 0.1
(.177 ± .004)
DIMENSIONS:
MM
(INCHES)
QTY: 4000 PCS. PER REEL
Asia-Pacific:
Tel: +886-2 2562-4117 • Fax: +886-2 2562-4116
EMEA:
Tel: +36 88 520 390 • Fax: +36 88 520 211
The Americas:
Tel: +1-951 781-5500 • Fax: +1-951 781-5700
www.bourns.com
06/14
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
Temperature Rise (°C)
16
