0009503111 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0009503111

0009503111: DescriptionHeaders u0026 Wire Housings KK .156" HSG 11P F/RAMP; CategoryThe connector The connector; File Size41KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

0009503111 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	0009503111	-	-	View	Buy Now

0009503111 Overview

Headers u0026 Wire Housings KK .156" HSG 11P F/RAMP

0009503111 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LOW HALOGEN, ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	9 weeks
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	CRIMP
Total number of contacts	11
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 11/29/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

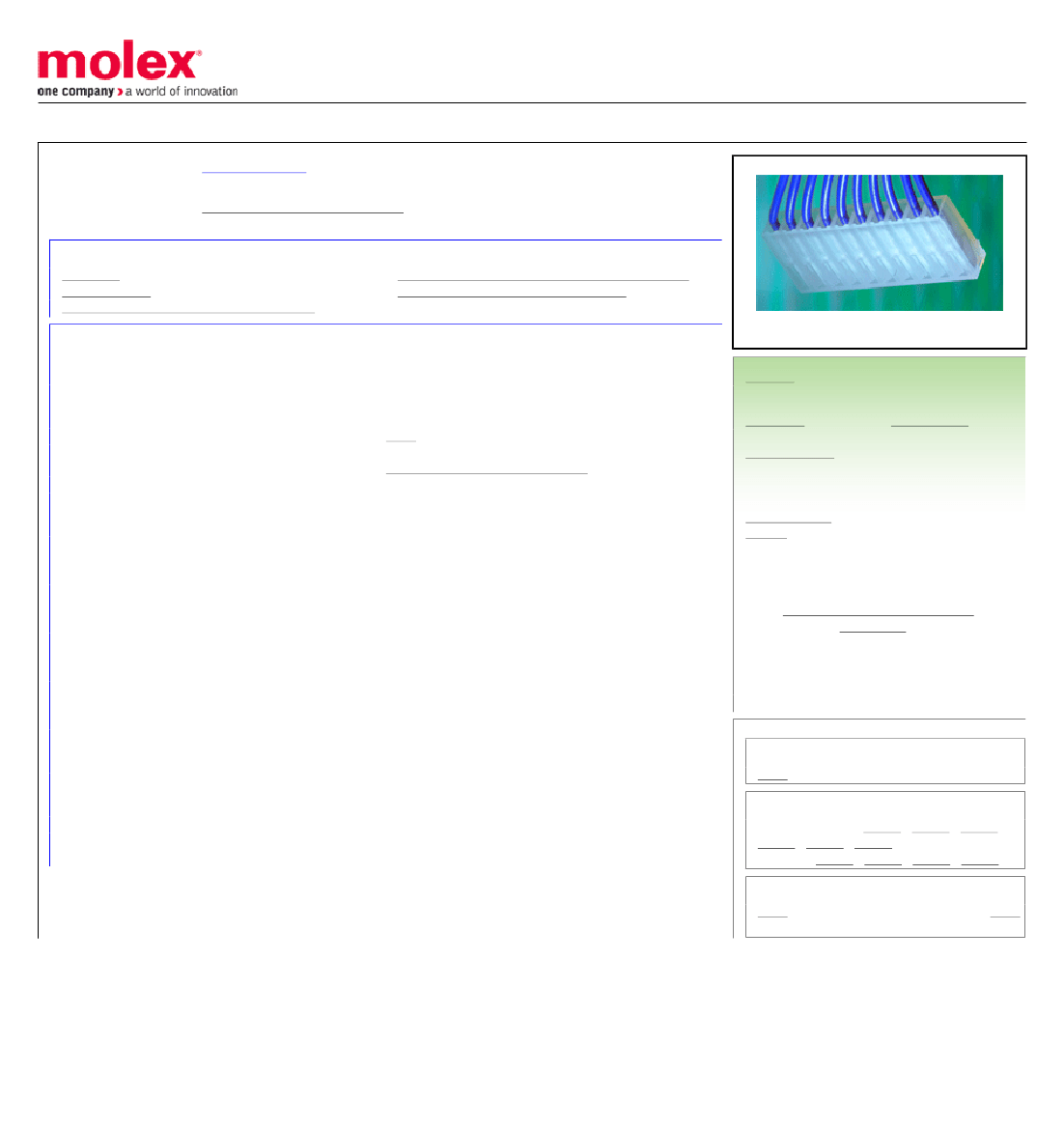

Part Number:

Status:

Overview:

Description:

0009503111

Active

KK® Interconnect System - Molex

KK 3.96mm Crimp Terminal Housing, Friction Ramp, 11 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-08-50-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (maximum)

Color - Resin

Flammability

Gender

Glow-Wire Compliant

Lock to Mating Part

Material - Resin

Net Weight

Number of Rows

Packaging Type

Panel Mount

Pitch - Mating Interface

Temperature Range - Operating

Material Info

Engineering Number

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification PK-2139-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

Crimp Housings

2139

Power, Wire-to-Board

KK® Interconnect System - Molex

KK 396

800753614093

Natural

94V-2

Receptacle

Yes

Nylon

2.832/g

Bag

3.96mm

See Product Specification

2139-11A

PK-2139-001-001

PS-08-50-001

SD-2139

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

2139 Series

Mates With

KK 396 Headers: 41771 , 41772 , 41791 ,

41792 , 42491 , 42492 , KK 396 Breakaway

Headers: 41661 , 41662 , 41671 , 41672

Use With

2478 Crimp Terminals for 18-24 AWG, 2578

Crimp Terminals for 22-26 AWG

This document was generated on 11/29/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

0009503111 Related Products

	0009503111	09-50-3111
Description	Headers u0026 Wire Housings KK .156" HSG 11P F/RAMP	Headers u0026 Wire Housings TERMINAL 24-18 BULK
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Molex	Molex
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Is Samacsys	N	N
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Mixed contacts	NO	NO
Installation type	CABLE	CABLE
Number of rows loaded	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	CRIMP	CRIMP
Total number of contacts	11	11
UL Flammability Code	94V-2	94V-2
Base Number Matches	1	1
