LFXTAL061564Reel

Description
Crystals 26MHz 10pF -20C 70C
CategoryPassive components
File Size267KB,1 Pages
ManufacturerIQD
Download Datasheet Parametric View All

LFXTAL061564Reel Online Shopping

Suppliers Part Number Price MOQ In stock
LFXTAL061564Reel - - View Buy Now

LFXTAL061564Reel Overview

Crystals 26MHz 10pF -20C 70C

LFXTAL061564Reel Parametric

Parameter NameAttribute value
Product CategoryCrystals
ManufacturerIQD
RoHSDetails
Termination StyleSMD/SMT
Package / Case3.2 mm x 2.5 mm
Load Capacitance10 pF
Frequency26 MHz
Tolerance10 PPM
Frequency Stability10 PPM
Drive Level100 uW
Minimum Operating Temperature- 20 C
Maximum Operating Temperature+ 70 C
Length3.4 mm
Width2.7 mm
Height0.8 mm
PackagingMouseReel
PackagingCut Tape
PackagingReel
ESR50 Ohms
Lead Spacing-
Mounting StyleSMD/SMT
ProductCrystals
Factory Pack Quantity1000
TypeQuartz Crystal

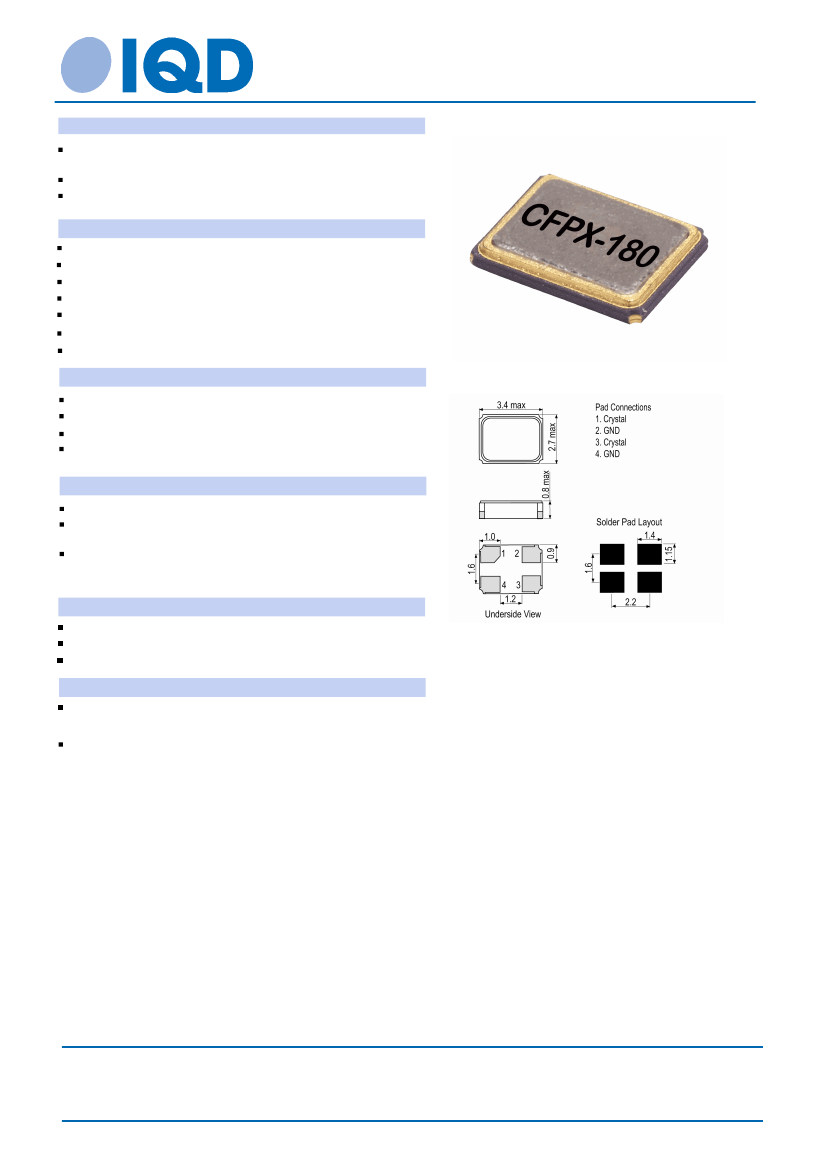

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL061564Reel
Description
Standard 3.2 x 2.5mm SMD crystal in a ceramic package with a
seam sealed metal lid, hermetically sealed.
Model
CFPX-180
Model Issue number
9
Frequency Parameters
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
26.0MHz
±10.00ppm
@ 25°C
±
10.00ppm
-20.00 to 70.00°C
Fundamental
±5ppm max per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
10.00pF
7pF max
100µW max
50.00Ω max
Storage Temperature Range: -55 to 125°C
Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine
wave
Vibration: MIL-STD-202F, Method 204D, Test Condition D:
20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes
(total 12hrs)
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Reel
Pack Size: 1,000
Tape & reel in accordance with EIA-481-D
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1.760.318.2824
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
Printed on 28 Sep 16 15:35 using Part Data Sheet V1.00014
