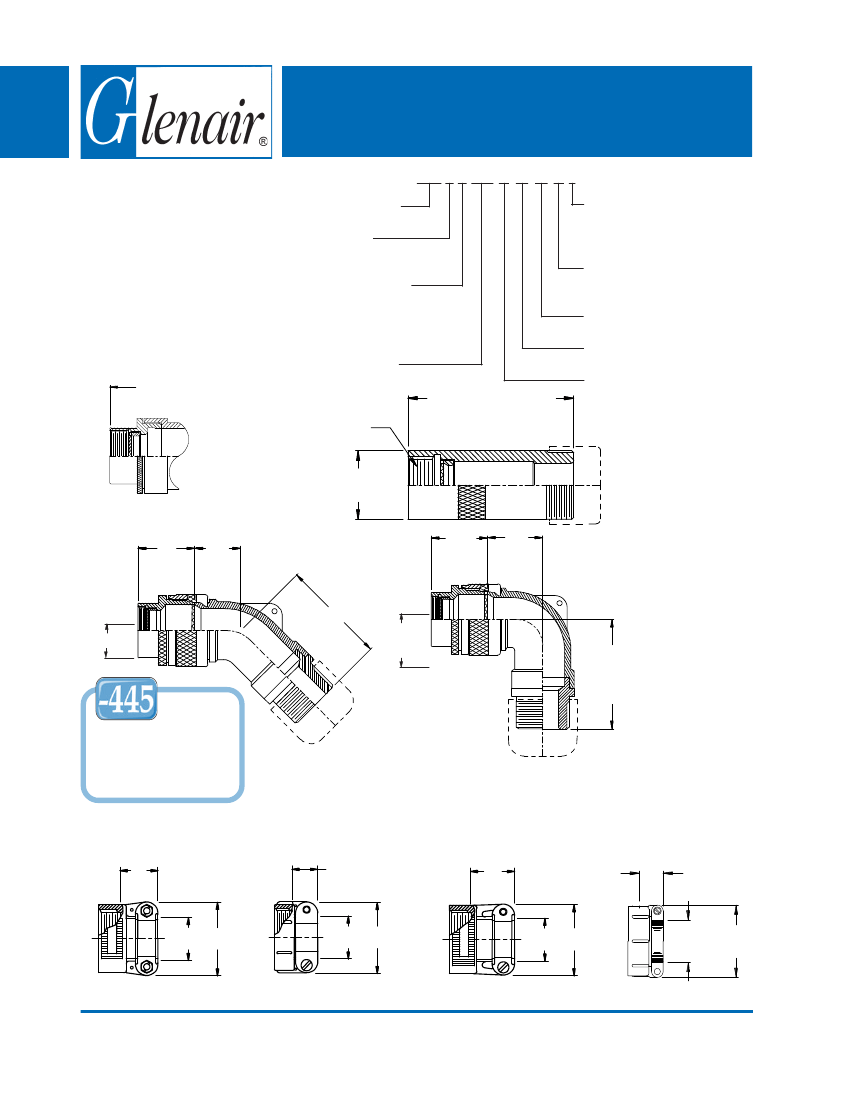

360-002
Non-Environmental Backshell
with Strain Relief
Low Profile - Direct Coupling
360 F S 002 M 16 10 M 6
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
A Thread
(Table I)
Length ± .060 (1.52)
Min. Order Length 1.5 Inch
(See Note 4)
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style
(H, A, M, F)
Cable Entry (Tables X, XI, XII)
Shell Size (Table I)
Finish (Table II)
1. When maximum
cable entry (page
22) is exceeded,
Style 2 will be
supplied. (straight
only.)
2. Metric dimensions
(mm) are indicated in
parentheses.
3. Cable range is
defined as the
accommodations
range for the wire
bundle or cable.
Dimensions shown
are not intended for
inspection criteria.
4. Consult factory for
shorter lengths on
H*
straight backshells.
(Table
5. When using
IV)
Connector Designa-
tor B refer to pages
18 and 19 for part
number develop-
ment.
36
A-B -C-D-E-F
G-H-J-K-L-S
* Conn. Desig. B See Note 5
CONNECTOR
DESIGNATORS
*
DIRECT
COUPLING
Length ± .060 (1.52)
Min. Order Length 2.0 Inch
(See Note 4)
STYLE 2
(STRAIGHT - See Note 1)
J
E
(Table III) (Table
IV)
B
(Table I)
J
G
(Table
IV)
(Table III)
F* (Table IV)
B (Table I)
B
(Table I)
* For Style F light
duty strain relief
use F
1
and H
1
dimensions in
Table V.
Now Available
with the “NESTOR”
Glenair’s Non-Detent, Spring-
Loaded, Self-Locking Coupling.
Add “-445” to Specify This
AS85049 Style “N” Coupling
Interface.
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE F
Light Duty
(Table XII)
Z
.416 (10.5)
Max
Cable
Range
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 36 - Page 4
with Strain Relief
Low Profile - Direct Coupling
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
28/29
32/33
36
40
TABLE III: FRONT ADAPTER
J Max - Conn. Designator
A-E-F
C
J-H-L-S
D-B-G-K
1.180 (30.0) 1.440 (36.6)
1.180 (30.0) 1.440 (36.6)
1.180 (30.0) 1.440 (36.6) 1.735 (44.1)
1.180 (30.0) 1.440 (36.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.560 (39.6) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
1.610 (40.9) 2.190 (55.6) 1.915 (48.6)
See inside back cover fold-out or pages 13 and 14
for unabridged Tables I and II.
TABLE IV: ELBOW DIMENSIONS
Elbow
E
F
G
Size
Max
Max
Max
04
.567 (14.4) 1.187 (30.1) .636 (16.2)
06
.630 (16.0) 1.250 (31.8) .710 (18.0)
08
.692 (17.6) 1.312 (33.3) .731 (18.6)
10
.755 (19.2) 1.655 (42.0) .825 (21.0)
12
.848 (21.5) 1.765 (44.8) .988 (25.1)
16 1.036 (26.3) 1.952 (49.6) 1.087 (27.6)
20 1.130 (28.7) 2.098 (53.3) 1.325 (33.7)
24 1.255 (31.9) 2.155 (54.7) 1.337 (34.0)
28 1.317 (33.5) 2.250 (57.2) 1.827 (46.4)
32 1.348 (34.2) 2.343 (59.5) 2.027 (51.5)
H
Max
1.200 (30.5)
1.320 (33.5)
1.340 (34.0)
1.660 (42.2)
1.950 (49.5)
2.033 (51.6)
2.033 (51.6)
2.200 (55.9)
2.450 (62.2)
2.450 (62.2)
TABLE X: CABLE ENTRY
V
Cable Range
Dash
T
No.
Max
Max
Min
Max
04
.780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9)
06
.780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1)
.780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3)
08
10
.780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9)
12
.811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1)
.905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8)
16
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8)
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
TABLE XII: CABLE ENTRY
Cable Range
Dash
Z
No.
Max
Min
Max
02 .968 (24.6) .125 (3.2) .250 (6.4)
03 1.046 (26.6) .250 (6.4) .375 (9.5)
04 1.156 (29.4) .312 (7.9) .500 (12.7)
05 1.218 (30.9) .437 (11.1) .625 (15.9)
06 1.343 (34.1) .562 (14.3) .750 (19.1)
07 1.468 (37.3) .687 (17.4) .875 (22.2)
08 1.593 (40.5) .812 (20.6) 1.000 (25.4)
10 1.843 (46.8) 1.062 (27.0) 1.250 (31.8)
TABLE V: ELBOW
F
1
Elbow
Size
Max
04
1.550 (39.4)
06
1.610 (40.9)
08
1.670 (42.4)
10
1.760 (44.7)
12
1.870 (47.5)
16
2.060 (52.3)
20
2.210 (56.1)
H
1
Elbow
Max
Size
04 1.560 (39.6)
06 1.680 (42.7)
08 1.700 (43.2)
10 1.770 (45.0)
12 1.860 (47.2)
16 2.030 (51.6)
20 2.140 (54.4)
Printed in U.S.A.
TABLE XI: CABLE ENTRY
Dash
W
Y
X
Cable Range
Min
No.
Max
Max
Max
Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .281 (7.1) .438 (11.1)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) .344 (8.7) .562 (14.3)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) .375 (9.5) .625 (15.9)
12
.750 (19.1)
.563 (14.3) .760 (19.3) 1.500 (38.1) .438 (11.1)
16
.938 (23.8)
.656 (16.7) 1.073 (27.3) 1.719 (43.7) .562 (14.3)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) .750 (19.1) 1.250 (31.8)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp.
© 2005 Glenair, Inc.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 36 - Page 5
