AD578SN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AD578SN

AD578SN: DescriptionA/D Converter, 12-Bit, 1 Func, Hybrid, CDIP32,; CategoryAnalog mixed-signal IC converter; File Size235KB，6 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

AD578SN Overview

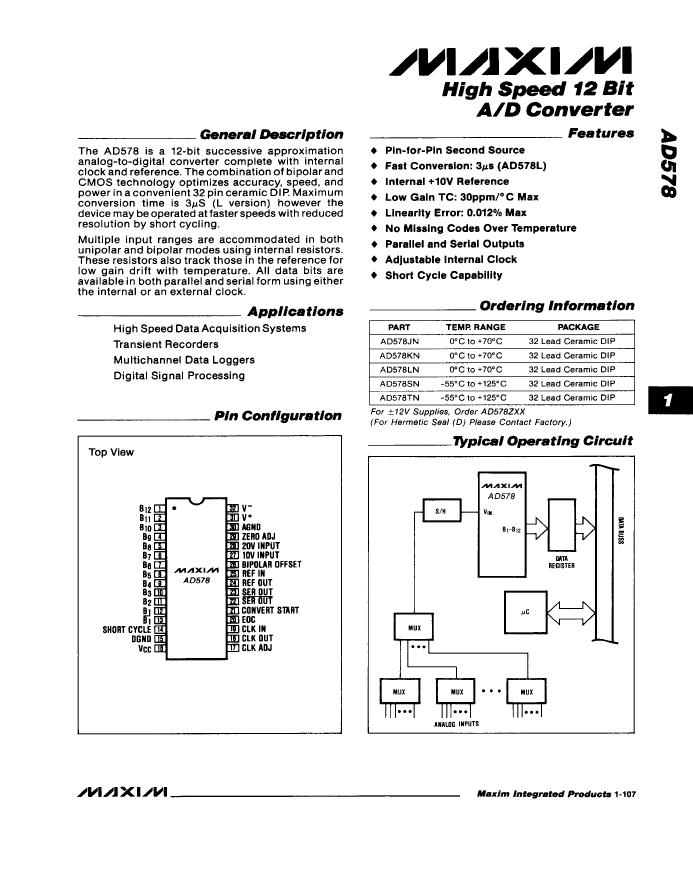

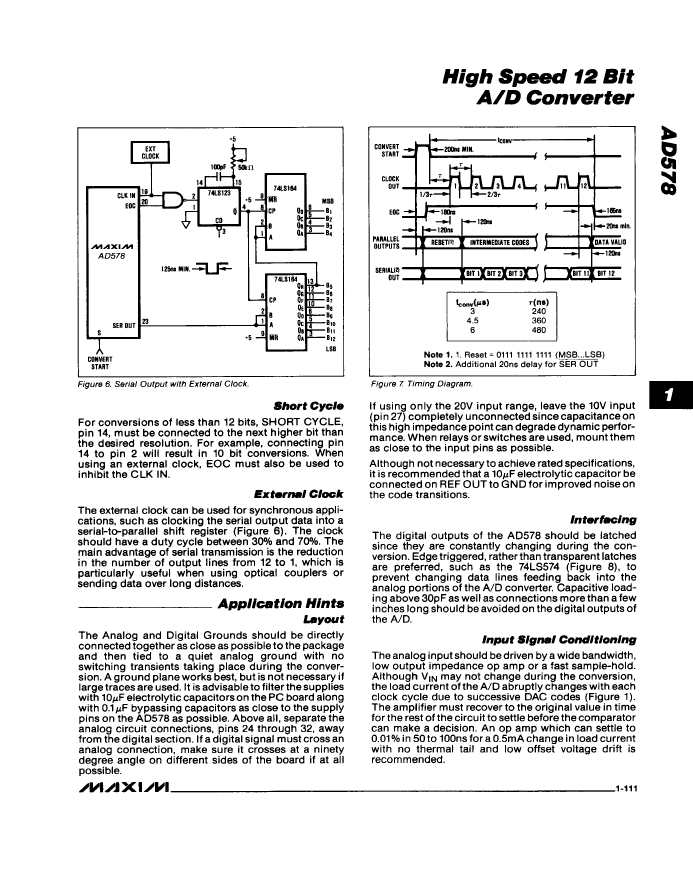

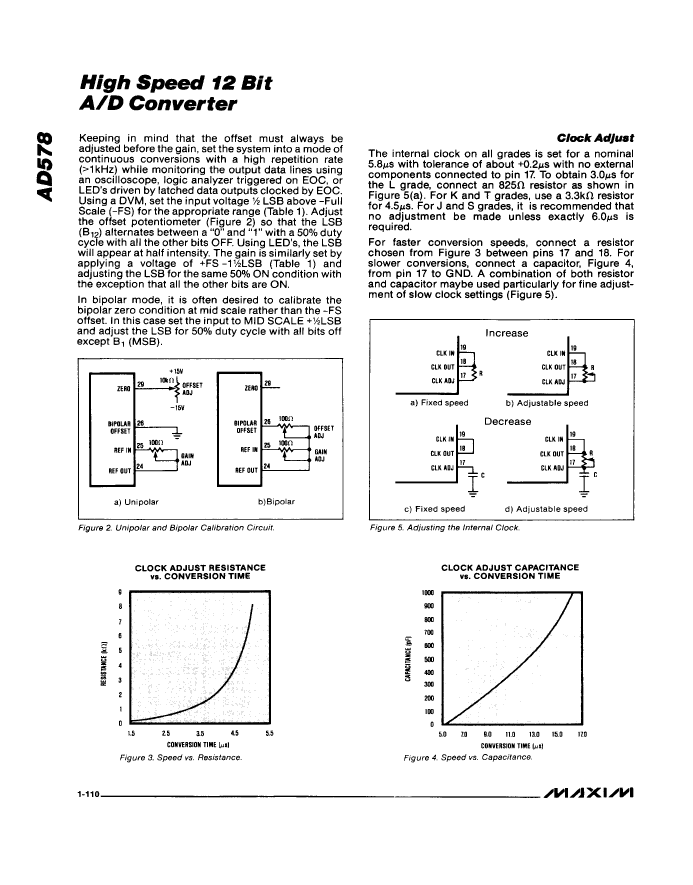

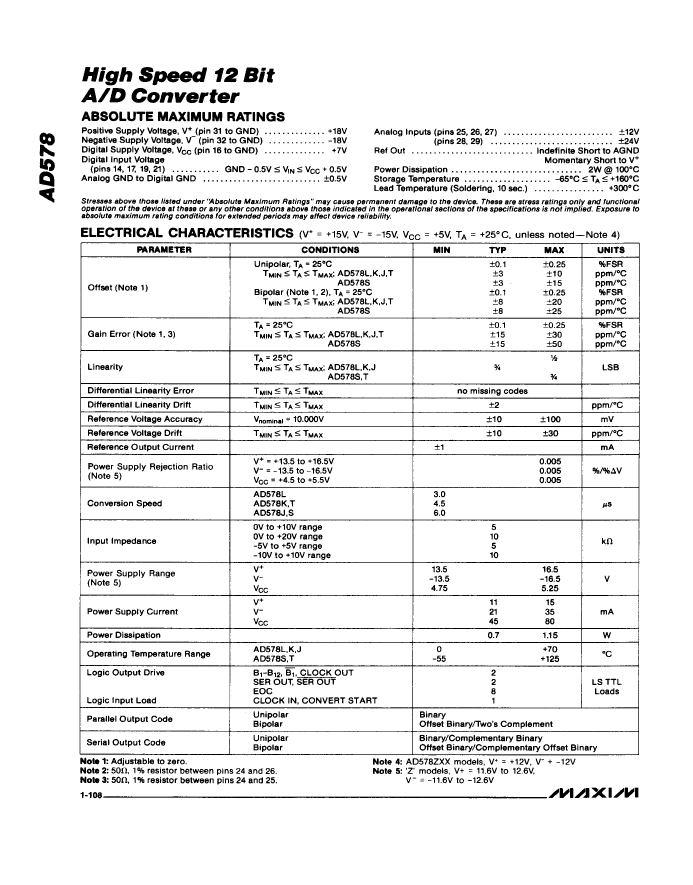

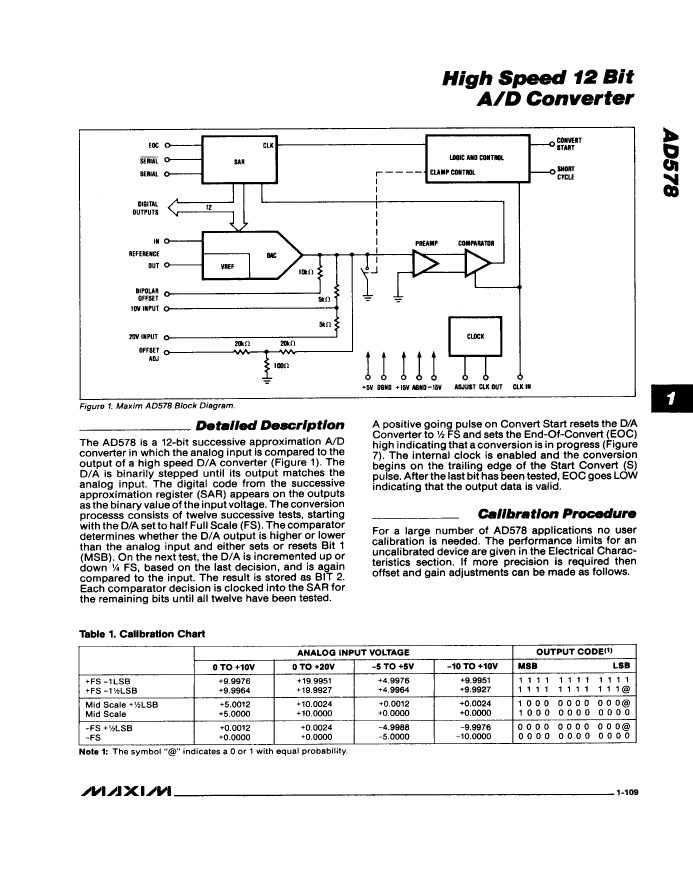

A/D Converter, 12-Bit, 1 Func, Hybrid, CDIP32,

AD578SN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	DIP, DIP32,.6
Contacts	32
Reach Compliance Code	_compli
Maximum analog input voltage	20 V
Converter type	A/D CONVERTER
JESD-30 code	R-XDIP-T32
JESD-609 code	e0
Maximum linear error (EL)	0.012%
Number of digits	12
Number of functions	1
Number of terminals	32
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	OFFSET BINARY
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

Preview

Download Datasheet

View All
