LFSPXO059193BULK datasheet, PDF

Datasheet> All Categories > Passive components> LFSPXO059193BULK

LFSPXO059193BULK: DescriptionStandard Clock Oscillators 64MHz 5V 25ppm -40C +85C; CategoryPassive components; File Size985KB，1 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFSPXO059193BULK Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO059193BULK	-	-	View	Buy Now

LFSPXO059193BULK Overview

Standard Clock Oscillators 64MHz 5V 25ppm -40C +85C

LFSPXO059193BULK Parametric

Parameter Name	Attribute value
Product Category	Standard Clock Oscillators
Manufacturer	IQD
RoHS	Details
Product	Standard Clock Oscillators
Frequency	64 MHz
Frequency Stability	25 PPM
Operating Supply Voltage	5 V
Termination Style	Radial
Package / Case	DIP-4
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	20.7 mm
Width	13.06 mm
Packaging	Bulk
Factory Pack Quantity	100
Type	Ceramic Surface Mount Crystal Oscillator

Preview

Download Datasheet

View All

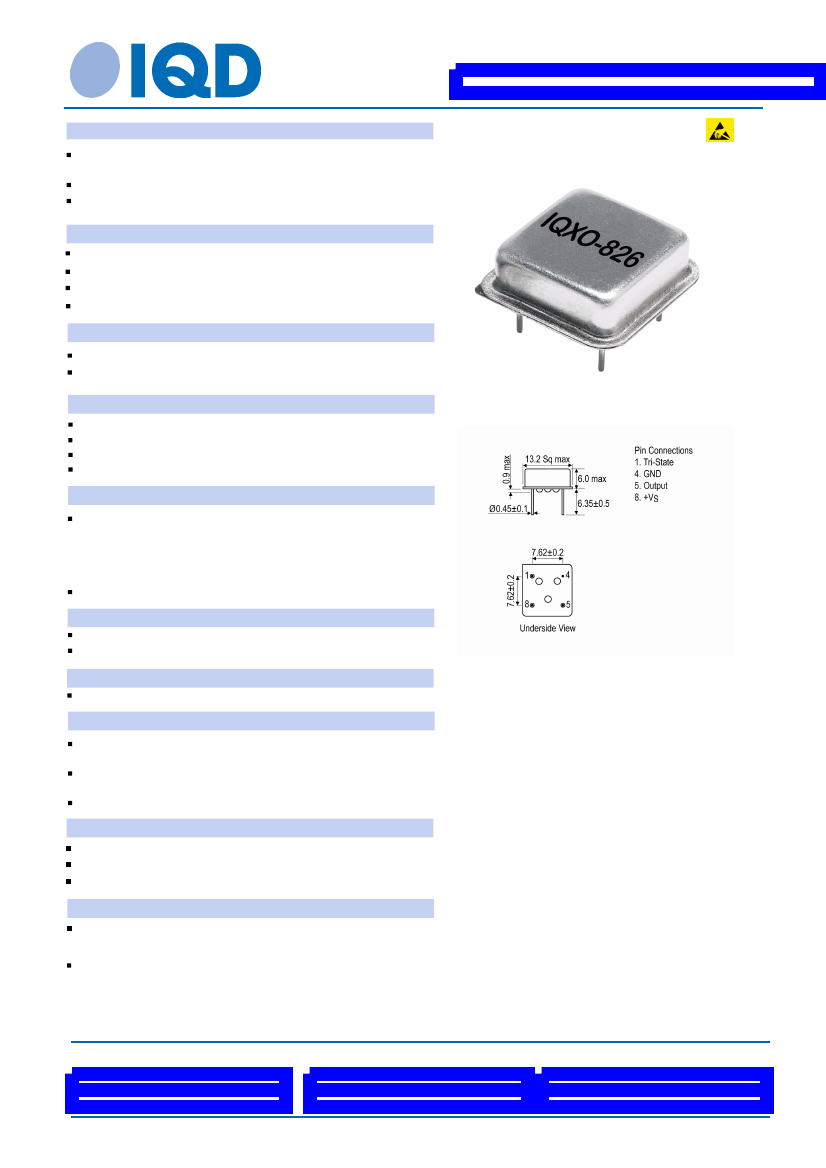

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO059193BULK

Description

Simple package crystal oscillator in a hermetically sealed 8-pin

DIL package with tri-state function

Model

IQXO-826

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

Operating Temperature Range

Ageing

Electrical Parameters

64.0MHz

±25.00ppm

-40.00 to 85.00°C

±5ppm max in 1st yr @ 25°C

Supply Voltage

Current Draw

Output Details

5.0V ±10%

50.00mA

Output Compatability

Drive Capability

Rise and Fall Time

Duty Cycle

Output Control

HCMOS

30pF

4.0ns max

45/55%

Outline (mm)

Tri-state Operation:

Logic '1' to pin 1 enables oscillator output

Logic '0' to pin 1 disables oscillator output, the oscillator output

goes to a high impedance state

No connection to pin 1 enables oscillator output

Start Up Time: 10ms max

Output Levels

VoH: 90% Vs min

VoL: 10% Vs max

Noise Parameters

Phase Jitter (12kHz-20MHz): 1ps rms max

Environmental Parameters

Shock: 1500G, 0.5ms, 5 times in each of 6 directions, along 3

mutually perpendicular planes

Vibration: 20G (20Hz-2000Hz), 1.5mm amplitude, cross-over

frequency 80Hz, in 3 mutually perpendicular planes

Storage Temperature Range: -55 to 125°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 40

Loose in Bulk Pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 3 Oct 16 18:29 using Part Data Sheet V1.00014
