MTSM5100LA-UV

Description
Surface Mount LED Lamps　
CategoryLED optoelectronic/LED    photoelectric
File Size72KB，1 Pages
ManufacturerMarktech
Websitehttps://www.marktechopto.com/
Download Datasheet Parametric Compare View All

MTSM5100LA-UV Overview

Surface Mount LED Lamps　

MTSM5100LA-UV Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMarktech
Reach Compliance Codeunknow
color@wavelengthBlue
Maximum forward current0.03 A
Maximum forward voltage4.7 V
JESD-609 codee0
Lens typeWATER CLEAR
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
total height1.1 mm
peak wavelength430 nm
Maximum reverse voltage5 V
Terminal surfaceTin/Lead (Sn/Pb)
perspective170 deg

Preview

Download Datasheet

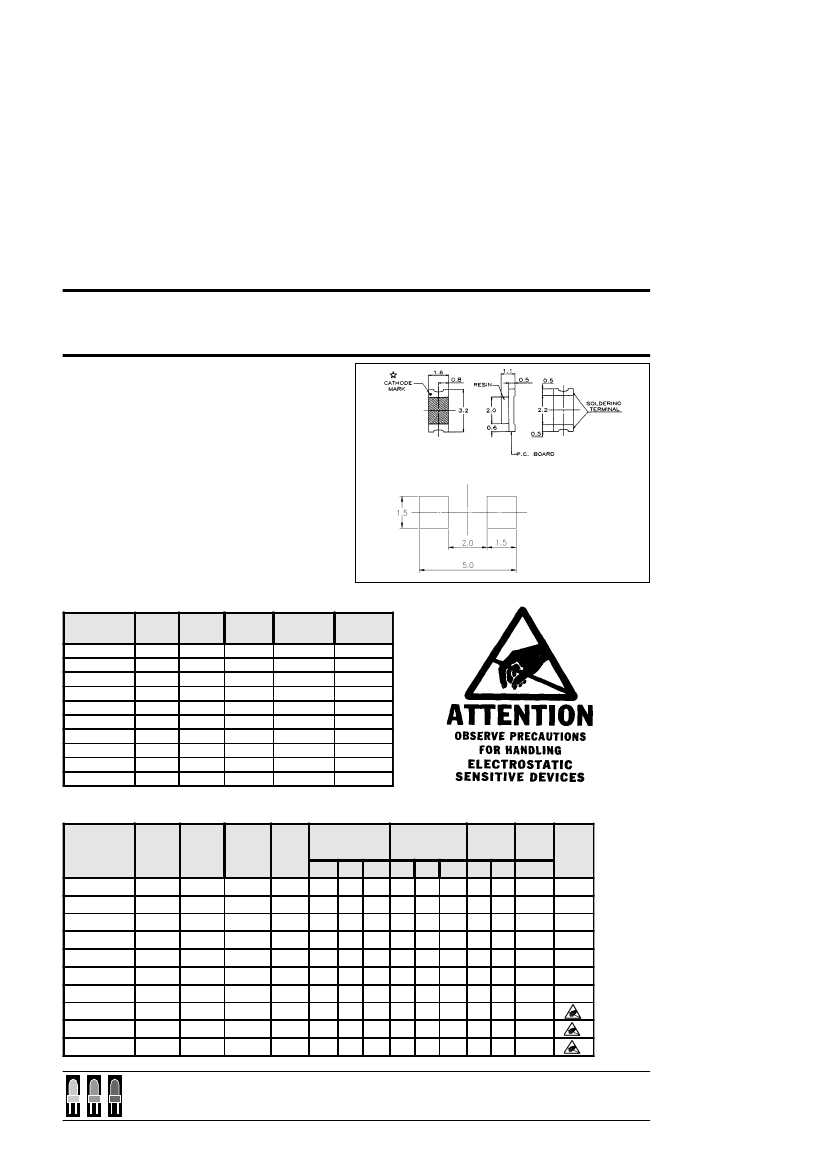

Surface Mount LED Lamps
Surface
FEATURES
FEATURES
• Industry standard footprint
• Compatible with automatic placement
equipment
• Compatible with infrared and vapor phase
reflow solder processes
• Long life solid state reliability
• IC Compatible
• JEDEC Precondition Stress Tested
• Also Available in Water Clear Package
Note: All dimensions are in mm, Tolerance is
±0.1mm unless otherwise noted. (Ultra bright
red has reversed polarity.)
Pad Layout
* Blue/Green/White - incorporates
reflector cap geometry
MAXIMUM RATINGS (Ta = 25°C)
RATINGS (Ta
PART NO.
MTSM5100LA-G
MTSM5100L-UY
MTSM5100LA-UA
MTSM5100LA-UO
MTSM5100LA-UR
MTSM5100L-UG
MTSM5100LB-UR
MTSM5100LA-UBL
MTSM5100LA-UV
MTSM5100LA-WT
FORWARD
CURRENT-
(I
F
) (mA)
30
30
30
30
30
30
30
30
30
30
REVERSE
VOLTAGE
(V
R
) (V)
5
4
4
4
4
4
4
5
5
5
POWER
DISSIPATION
(P
D
) (mW)
70
85
85
85
70
85
85
70
70
70
OPERATING
TEMPERATURE
(T
opr
) (°C)
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
-30~+85
STORAGE
TEMPERATURE
(T
stg
) (ºC)
-30~+100
-30~+100
-30~+100
-30~+100
-30~+100
-30~+100
-30~+100
-30~+100
-30~+100
-30~+100
OPTO-ELECTRICAL CHARACTERISTICS (Ta
OPTO-ELECTRICAL CHARACTERISTICS (Ta = 25°C)
PART NO.
MATERIAL
EMITTING
COLOR
LENS
COLOR
VIEWING
ANGLE
typ.
170°
170°
170°
170°
170°
170°
170°
120°
120°
120°
LUMINOUS
INTENSITY
(mcd)
min.
5
25
25
25
9
15
20
—
—
—
typ.
10
45
45
45
17
30
35
35
12
30
@mA
20
20
20
20
20
20
20
20
20
20
typ.
2.2
2.1
2.1
2.1
1.8
2.2
2.1
3.5
4.0
4.0
FORWARD
VOLTAGE
(V)
max. @mA
2.6
2.8
2.8
2.8
2.2
2.8
2.8
4.2
4.7
4.7
20
20
20
20
20
20
20
20
20
20
REVERSE
CURRENT
µA
100
100
100
100
100
100
100
100
100
100
Vr
5
4
4
4
4
4
4
5
5
5
PEAK
WAVE
LENGTH
nm
570
589
610
636
660
570
640
468
430
—
—
—
—
—
—
—
—
Static
Sensitive
MTSM5100LA-G
MTSM5100L-UY
MTSM5100LA-UA
MTSM5100LA-UO
MTSM5100LA-UR
MTSM5100L-UG
MTSM5100LB-UR
MTSM5100LA-UBL
MTSM5100LA-UV
MTSM5100LA-WT
GaP
InGaAlP
InGaAlP
InGaAlP
AlGaAs
InGaAlP
InGaAlP
InGaN
GaN
InGaN
Green
UR Y
ellow
UR Amber
UR Orange
SB Red
UR Green
UR Red
UR Blue
Blue
White
White Diff.
White Diff.
White Diff.
White Diff.
White Diff.
White Diff.
White Diff.
Water Clear
Water Clear
Water Clear
marktech
optoelectronics
For up-to-date product info visit our web site at www.marktechopto.com
120 Broadway • Menands, New York 12204
Toll Free:
(800) 98-4LEDS
• Fax: (518) 432-7454
All specifications subject to change.
