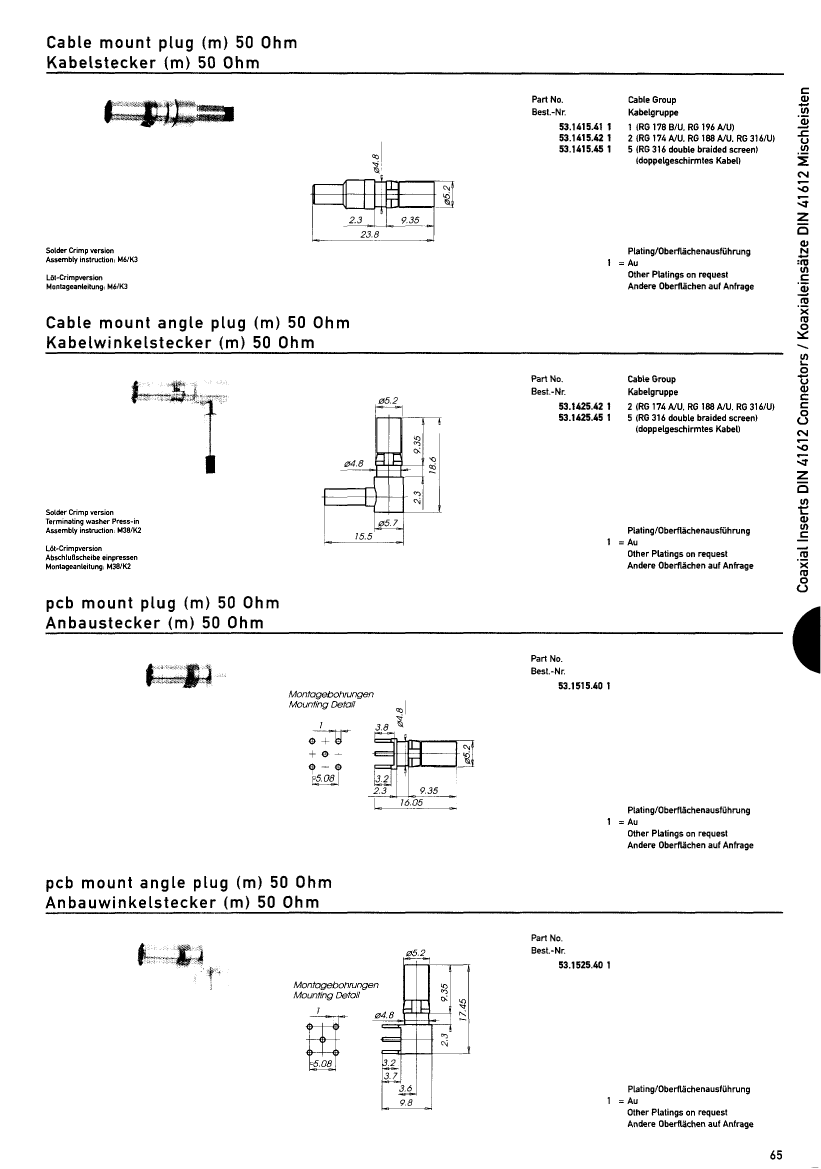

RF Connector, Male, Cable Mount, Crimp Solder Terminal, Plug
| Parameter Name | Attribute value |
| Maker | IMS Connector Systems Gmbh |
| Reach Compliance Code | unknown |
| Other features | STANDARD: DIN 41612, APPLICABLE CABLES: RG 178B/U; RG 196A/U |
| Body/casing type | PLUG |
| Characteristic impedance | 50 Ω |
| Connector type | RF CONNECTOR |
| Contact completed and terminated | GOLD |
| Contact point gender | MALE |
| Coupling type | SLIDE ON |
| DIN compliance | YES |
| Filter function | NO |
| IEC compliance | NO |
| insulator material | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 |
| MIL compliance | NO |
| Manufacturer's serial number | 53.1415 |
| Installation method | STRAIGHT |
| Installation type | CABLE |
| Maximum operating frequency | 10 GHz |
| Options | GENERAL PURPOSE |
| Panel mounting | NO |
| Termination type | CRIMP SOLDER |
| voltage standing wave ratio | 1.27 |
| Base Number Matches | 1 |
| 53.1415.411 | 53.1415.451 | 53.1415.421 | 53.1425.421 | 53.1425.451 | 53.1515.401 | 53.1525.401 | |
|---|---|---|---|---|---|---|---|
| Description | RF Connector, Male, Cable Mount, Crimp Solder Terminal, Plug | RF Connector, Male, Cable Mount, Crimp Solder Terminal, Plug | RF Connector, Male, Cable Mount, Crimp Solder Terminal, Plug | RF Connector, Male, Cable Mount, Crimp Solder Terminal, Plug | RF Connector, Male, Cable Mount, Crimp Solder Terminal, Plug | RF Connector, Male, Board Mount, Solder Terminal, Plug | RF Connector, Male, Board Mount, Solder Terminal, Plug |
| Maker | IMS Connector Systems Gmbh | IMS Connector Systems Gmbh | IMS Connector Systems Gmbh | IMS Connector Systems Gmbh | IMS Connector Systems Gmbh | IMS Connector Systems Gmbh | IMS Connector Systems Gmbh |
| Reach Compliance Code | unknown | unknown | compliant | unknown | unknown | unknown | unknown |
| Other features | STANDARD: DIN 41612, APPLICABLE CABLES: RG 178B/U; RG 196A/U | STANDARD: DIN 41612, APPLICABLE CABLE: RG 316 | STANDARD: DIN 41612, APPLICABLE CABLES: RG 174A/U; RG 188A/U; RG 316/U | STANDARD: DIN 41612, APPLICABLE CABLES: RG 174A/U; RG 188A/U; RG 316/U | STANDARD: DIN 41612, APPLICABLE CABLE: RG 316 | STANDARD: DIN 41612 | STANDARD: DIN 41612 |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG | PLUG |
| Characteristic impedance | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω | 50 Ω |
| Connector type | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR | RF CONNECTOR |
| Contact completed and terminated | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD | GOLD |
| Contact point gender | MALE | MALE | MALE | MALE | MALE | MALE | MALE |
| Coupling type | SLIDE ON | SLIDE ON | SLIDE ON | SLIDE ON | SLIDE ON | SLIDE ON | SLIDE ON |
| DIN compliance | YES | YES | YES | YES | YES | YES | YES |
| Filter function | NO | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO | NO |
| insulator material | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE | POLYTETRAFLUORO ETHYLENE |
| JESD-609 code | e4 | e4 | e4 | e4 | e4 | e4 | e4 |
| MIL compliance | NO | NO | NO | NO | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | RIGHT ANGLE | RIGHT ANGLE | STRAIGHT | RIGHT ANGLE |
| Installation type | CABLE | CABLE | CABLE | CABLE | CABLE | BOARD | BOARD |
| Maximum operating frequency | 10 GHz | 10 GHz | 10 GHz | 10 GHz | 10 GHz | 10 GHz | 10 GHz |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Panel mounting | NO | NO | NO | NO | NO | NO | NO |
| Termination type | CRIMP SOLDER | CRIMP/SOLDER | CRIMP SOLDER | CRIMP/SOLDER | CRIMP/SOLDER | SOLDER | SOLDER |
| voltage standing wave ratio | 1.27 | 1.27 | 1.27 | 1.27 | 1.27 | 1.27 | 1.27 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| ECCN code | - | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
