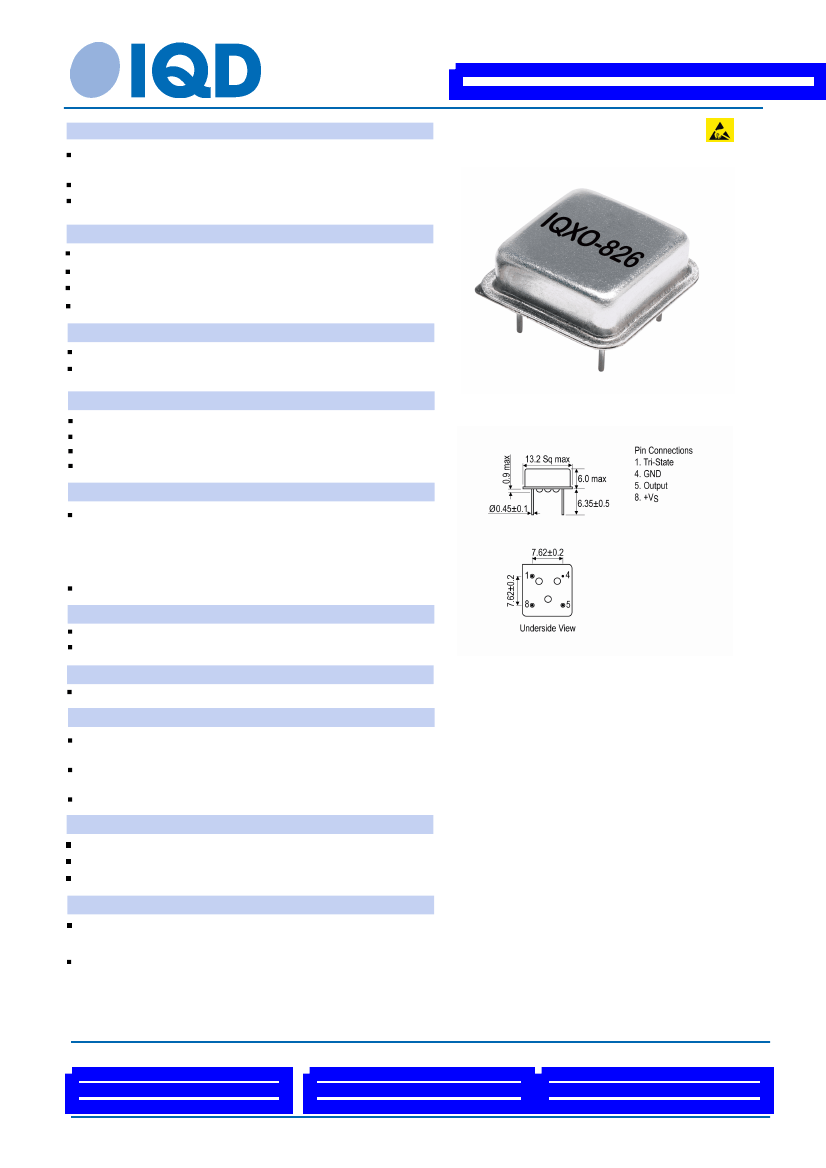

Crystal Clock Oscillator Specification
Part No. + Packaging:
LFSPXO060990Bulk
Description
Simple package crystal oscillator in a hermetically sealed 8-pin
DIL package with tri-state function
Model
IQXO-826
Model Issue number
1
Frequency Parameters
Frequency
Frequency Stability
Operating Temperature Range
Ageing
Electrical Parameters
65.5360MHz
±50.00ppm
-10.00 to 70.00°C
±5ppm max in 1st yr @ 25°C
Supply Voltage
Current Draw
Output Details
5.0V ±10%
50.00mA
Output Compatability
Drive Capability
Rise and Fall Time
Duty Cycle
Output Control
HCMOS
30pF
4.0ns max
45/55%
Outline (mm)
Tri-state Operation:
Logic '1' to pin 1 enables oscillator output
Logic '0' to pin 1 disables oscillator output, the oscillator output
goes to a high impedance state
No connection to pin 1 enables oscillator output
Start Up Time: 10ms max
Output Levels
VoH: 90% Vs min
VoL: 10% Vs max
Noise Parameters
Phase Jitter (12kHz-20MHz): 1ps rms max
Environmental Parameters
Shock: 1500G, 0.5ms, 5 times in each of 6 directions, along 3
mutually perpendicular planes
Vibration: 20G (20Hz-2000Hz), 1.5mm amplitude, cross-over
frequency 80Hz, in 3 mutually perpendicular planes
Storage Temperature Range: -55 to 125°C
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Bulk
Pack Size: 40
Loose in Bulk Pack
Alternative packing option available
