Part Number

Search

1825242

Description
Pluggable Terminal Blocks 5 Pos 10.16mm pitch Thru Hole Invert Hdr
CategoryThe connector    terminals
File Size78KB,5 Pages
ManufacturerPHOENIX CONTACT
Websitehttps://www.phoenixcontact.com
Environmental Compliance
Download Datasheet Parametric View All

1825242 Online Shopping

Suppliers Part Number Price MOQ In stock
1825242 - - View Buy Now

1825242 Overview

Pluggable Terminal Blocks 5 Pos 10.16mm pitch Thru Hole Invert Hdr

1825242 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
Other featuresPA, 94V-0
Manufacturer's serial number1825242
Installation typeBOARD
Number of layers1
Rows1
Number of channels14
Rated current12 A
Rated voltage320 V
safety certificateUL
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Base Number Matches1
https://www.phoenixcontact.com/us/products/1825242

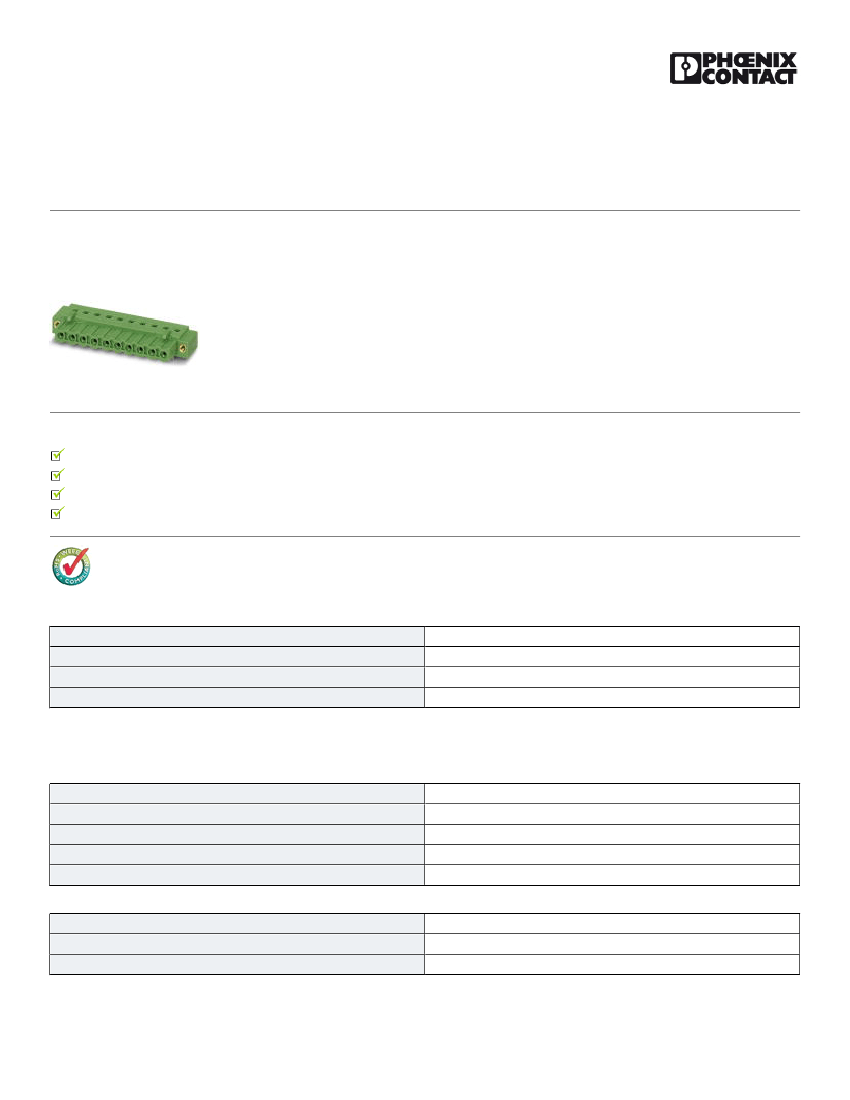

Base strip - IC 2,5/14-GF-5,08 - 1825242
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 14, Pitch: 5.08 mm, Color:
green, Contact surface: Tin, Assembly: Soldering
The figure shows a 10-position
version of the product
Product Features
 Combination with MSTB 2,5 headers for primary/secondary/PCB connection
 Pairs of guide rails can be used as a 90° board-to-board connection
 Use in shock-proof applications
 Clear separation of PCB inputs/outputs

Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
14.32 GRM
85366990
Germany
Technical data
Dimensions
Length
Pitch
Dimension a
Pin dimensions
Hole diameter
19 mm
5.08 mm
66.04 mm
1,2 x 0,5
1.4 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
IC 2,5/..-GF
I
4 kV
10/28/2014   Page 1 / 5
