5787362-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5787362-9

5787362-9: Description100 50SR R/A RCP ASSY,RDSN L/F; CategoryThe connector The connector; File Size201KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5787362-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5787362-9	-	-	View	Buy Now

5787362-9 Overview

100 50SR R/A RCP ASSY,RDSN L/F

5787362-9 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Objectid	1979182172
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	28 weeks
Samacsys Description	100 50SR R/A RCP ASSY,RDSN L/F
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-10 06:33:16
Other features	AMPLIMITE
Board mount options	BOARD LOCK
body width	0.406 inch
subject depth	0.463 inch
body length	3.315 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	YES
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	1A
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	4
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Panel mounting	NO
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	CARBON STEEL
Terminal length	0.12 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	100
UL Flammability Code	94V-0

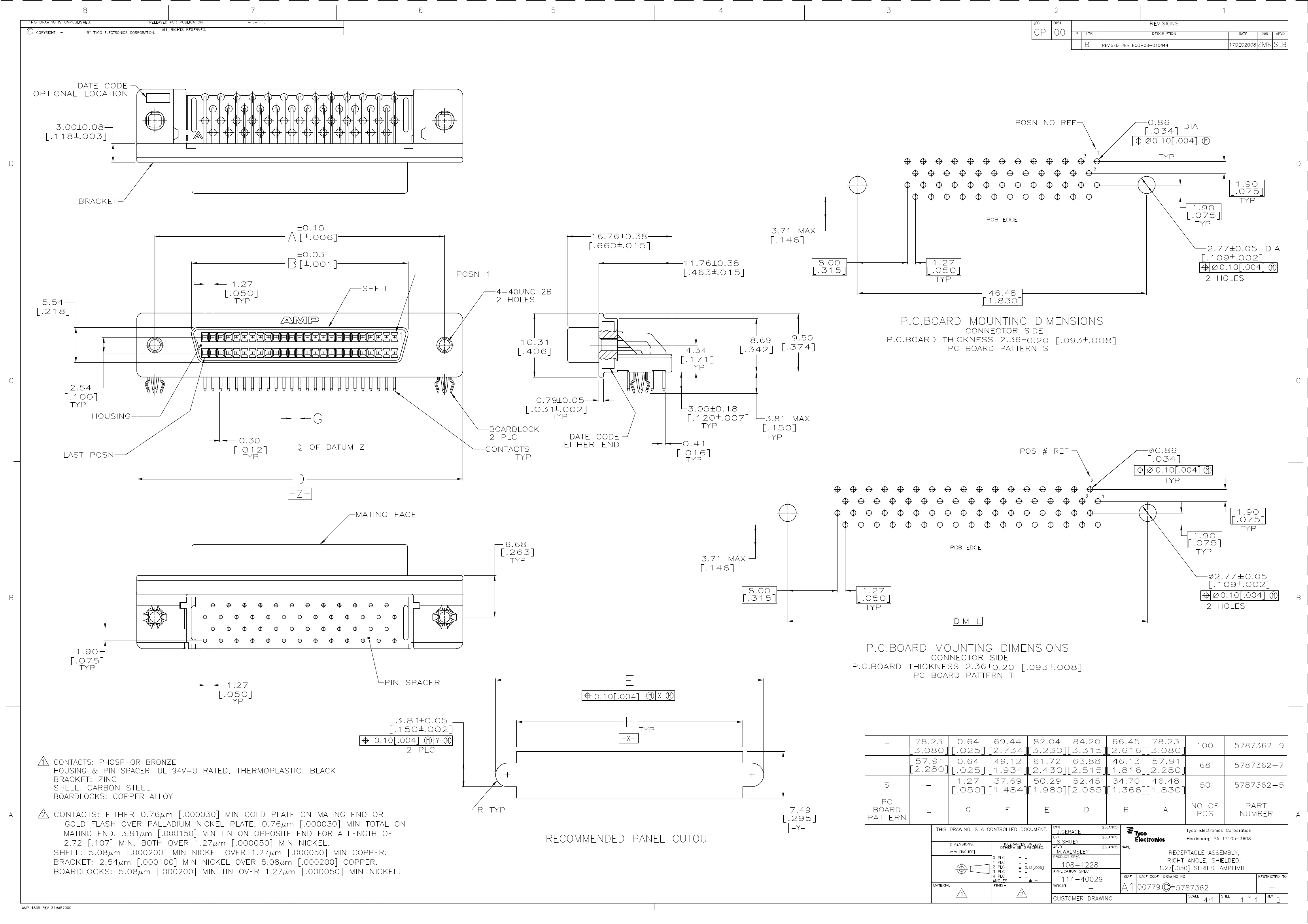

Preview

Download Datasheet
