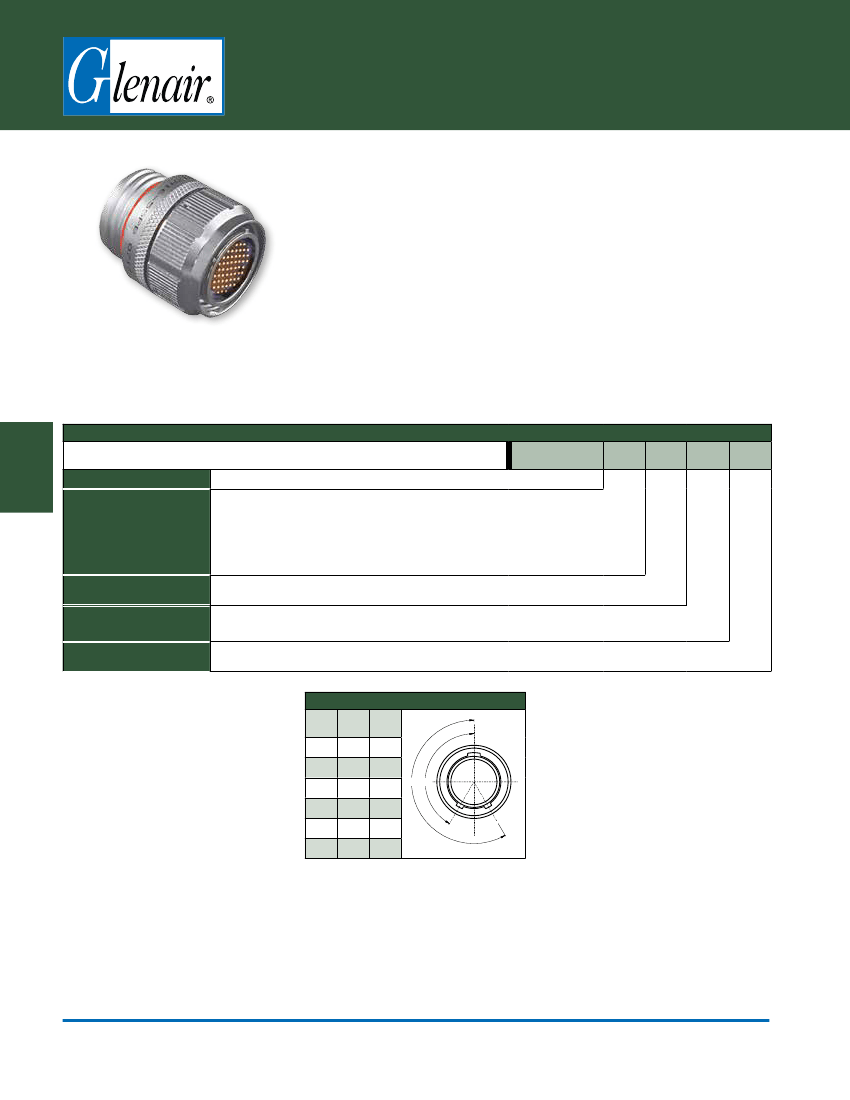

Series 801 Mighty Mouse
Double-Start ACME Thread Sav-Con
®
Saver
801-017 Ordering Information
Glenair Sav-Con® Connector Savers
are designed to protect connectors that
are subject to repeated mating and unmating cycles. Sav-Con® Connector Savers
prevent costly repair or replacement of expensive connectors while preserving the
quality and integrity of the connector by absorbing connect and disconnect abuse.
Protect Equipment.
Equipment connectors that are mated frequently during
manufacturing, test, check-out phases and environmental test programs can be
protected by Glenair Sav-Con® Connector Savers.
Prolong the Service Life of Test Cables.
Glenair Sav-Con® Connector Savers mated
to test-cable connectors take the punishment of repetitive matings and unmatings.
D
Series 801
Sample Part Number
Series
Material and Finish
Shell Size - Insert
Arrangement
Contact Type
Shell Key Positions
(See Table I)
A
= Normal
© 2014 Glenair, Inc.
How To Order
801-017
801-017
= Series 801 Connector Saver
C
= Aluminum / Black Anodize (Non-Conductive) RoHS Compliant
M
= Aluminum / Electroless Nickel RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZN
= Aluminum / Zinc-Nickel with Olive Drab Chromate
Z1
= Stainless Steel / Passivated RoHS Compliant
See Contact Arrangements page D-2
P
= Pin Contact on Plug Side, Socket Contact on Receptacle Side
S
= Socket Contact on Plug Side, Pin Contact on Receptacle Side
B
= Pos. B
C
= Pos. C
D
= Pos. D
E
= Pos. F
F
= Pos. F
M
6-7
P
A
Table I: Key Positions
A°
A
B
C
D
E
F
150°
75°
95°
140°
75°
95°
B°
210°
210°
230°
275°
275°
210°
B° A°
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
D-36
