1mm Pitch, Board to Wire Lock Connector
DF50 Series
It provides clear tactile click and secure mating
Timing of locking function
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Simultaneous timing of locking function and
contact mating provides a clearer tactile click.
Fig.1

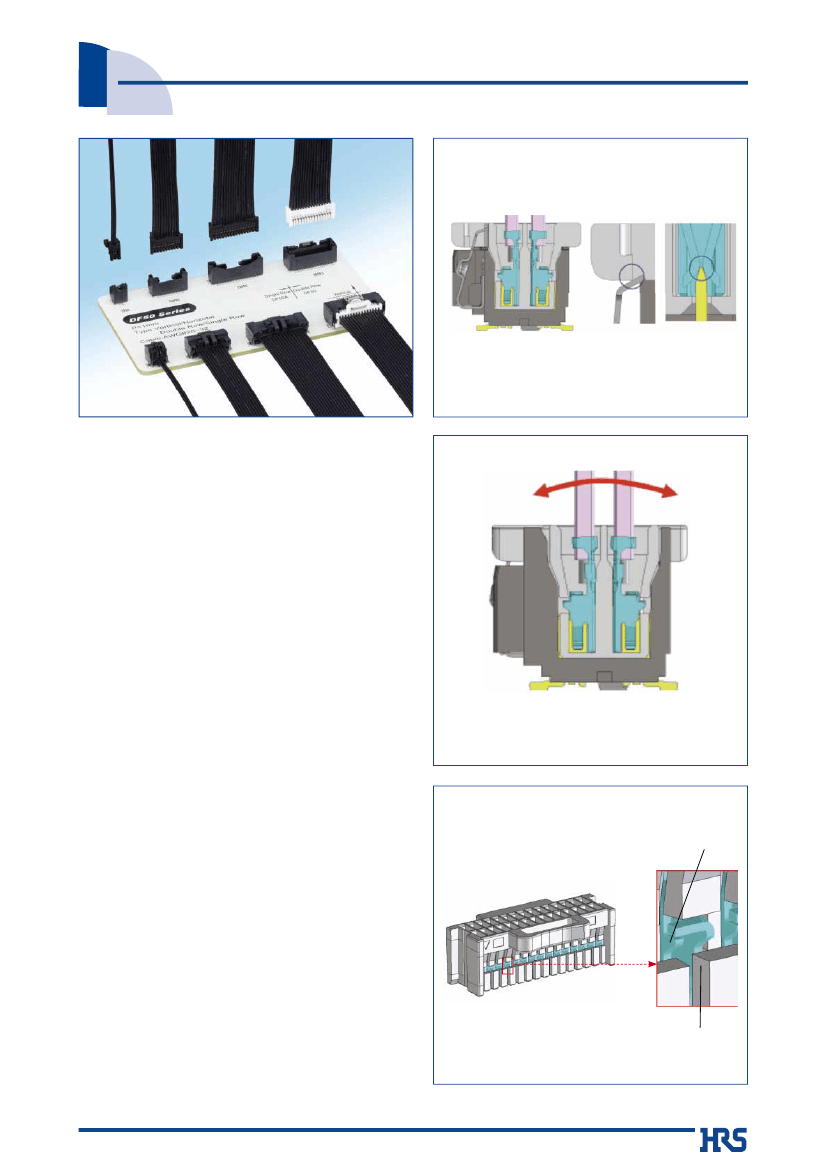

■Features
1. It provides clear tactile click and secure
mating
L o ck i n g f u n c t i o n a n d c o n t a c t m a t i n g o c c u r
simultaneously, for a clearer tactile click.(Fig.1)
Robust structure resistant to wrenching forces
2. Robust structure resistant to wrenching
forces
Thick and robust housing wall provides higher
strength against cracking. Insertion depth for mating
housings protects against wrenching.(Fig.2)
3. Robust and reliable lance structure
High lance strength by mating with crimp contact on
the surface.(Fig.3)
Insertion depth for mating protects against
wrenching.
Thick and robust outer wall provides higher
strength and prevents cracking.
Fig.2
4. Ensured adsorption area eliminates the
need for adsorption cap.
Adequate adsorption area is ensured despite the
small size, allowing for automatic mounting without
adsorption cap.
(*Specifications for adsorption cap may be provided
according to your requirements)
Robust and reliable lance structure
The lance mates with the crimp
contact on the surface.
5. Insulation outer diameter
Ø0.9mm,
compatible with AWG#28
Despite 1 mm Pitch, it is compatible with
Ø0.9mm,
UL1061·AWG#28 Cable (Ø0.127×7)
It is possible to visually inspect
the assembled lance.
Fig.3
2014.8e
1
DF50 Series●1mm Pitch, Board to Wire Lock Connector
■Product
Specifications
Current Rating
Ratings
Voltage Rating
Items
1.Insulation resistance
2.Withstand voltage
500Mø min.
No flashover or breakdown
30mø max.
No electrical discontinuity of 1µs or longer
No electrical discontinuity of 1µs or longer
Contact resistance: 50mø max.
Insulation resistance: 100Mø min.
Contact resistance: 50mø max.
Insulation resistance: 500Mø min.
Contact resistance: 50mø max.
No deformation of components affecting
performance.
AC/DC 100V
Specifications
100V DC
300V AC/1min.
20mV max., at 1 mA.
Frequency 10-55 Hz, single amplitude of 0.75 mm
3 directions, 10 cycles in each direction.
Acceleration: 490m/s for 11ms, half sine wave in 3 directions,
3 times for each direction
Temperature: 40±2°C; humidity: 90 to 95%, left for 96 hours
(-55°C: 30 min.
→
5 to 35°C: 2 to 3 min.
→
85°C: 30 min.
→
5 to 35°C: 2 to 3 min.) 5 cycles
30 times (Number of insertion and withdrawal)
Reflow: according to the recommended temperature profile
Hand soldering: 350°C for 3 to 4 sec.
2
1A
Operating Temperature Range
Operating Humidity Range
Storage Temperature Range
Storage Humidity Range
-35 to + 85°C (Note 1)
20 to 80%
-10 to + 60°C (Note 2)
40 to 70% (Note 2)
Conditions
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3.Contact resistance
4.Vibration
5.Shock
6.Humidity
7.Temperature cycles
8.Durability
9.Resistance to
soldering heat
(Note 1) Including the temperature rise by current.
(Note 2) Apply to the condition of long term storage for unused products before PCB on board.
After PCB board, operating temperature and humidity range is applied for interim storage during transportation.
■Materials
Product
Pin header
(on the board side)
Part
Insulator
Contact
Metal fitting
Locking metal fitting (DF50)
Insulator
Contact
Materials
LCP
Brass
Brass (Note 1)
Stainless steel
PBT
Phosphor Bronze
Color / Treatment
Black
Gold plating
Tin Plating
---------
Black (DF50A)
White (DF50S)
Gold plating
UL Regulation
UL94V-0
---------
---------
---------
UL94V-0
---------
Crimp socket
Crimp contact
(Note 1) Phosphor bronze is applied a material for only to the single-row straight pin header.
■Product
Number Structure
●
Connector
●
Crimp contact
DF 50
❶
❷
❸
❶
Series Name: DF
❷
Series No.: 50
−
*
DP − 1 V
**
❹
❺
❻
❼
½
DF 50
❶
❷
❸
❼
Mounting style / Wiring type
V: SMT Straight Type
H: SMT Right Angle Type
C: Crimp socket
− 2830 SCF A
❾
❸
Form Type:
Blank: Double-row pin header
S: Double-row crimp socket
A: Single-row
❹
Number of contacts: 20, 30, 40, 50 (Double-row)
: 2 to 16 (Single-row)
❺
Connector type
DP: Double-row pin header
DS: Double-row crimp socket
P: Single-row pin header
S: Single-row crimp socket
❻
Contact Pitch: 1mm
½
Specifications
51: SMT Embossed packaging
52: SMT Embossed packaging (with cap, DF50)
❾
Applicable wire size
2830: AWG#28, 30
3032: AWG#30, 32 (Under development)
Packaging style
SCF: Socket contact reel
Plating specifications
A: Gold plating
2
DF50 Series●1mm Pitch, Board to Wire Lock Connector

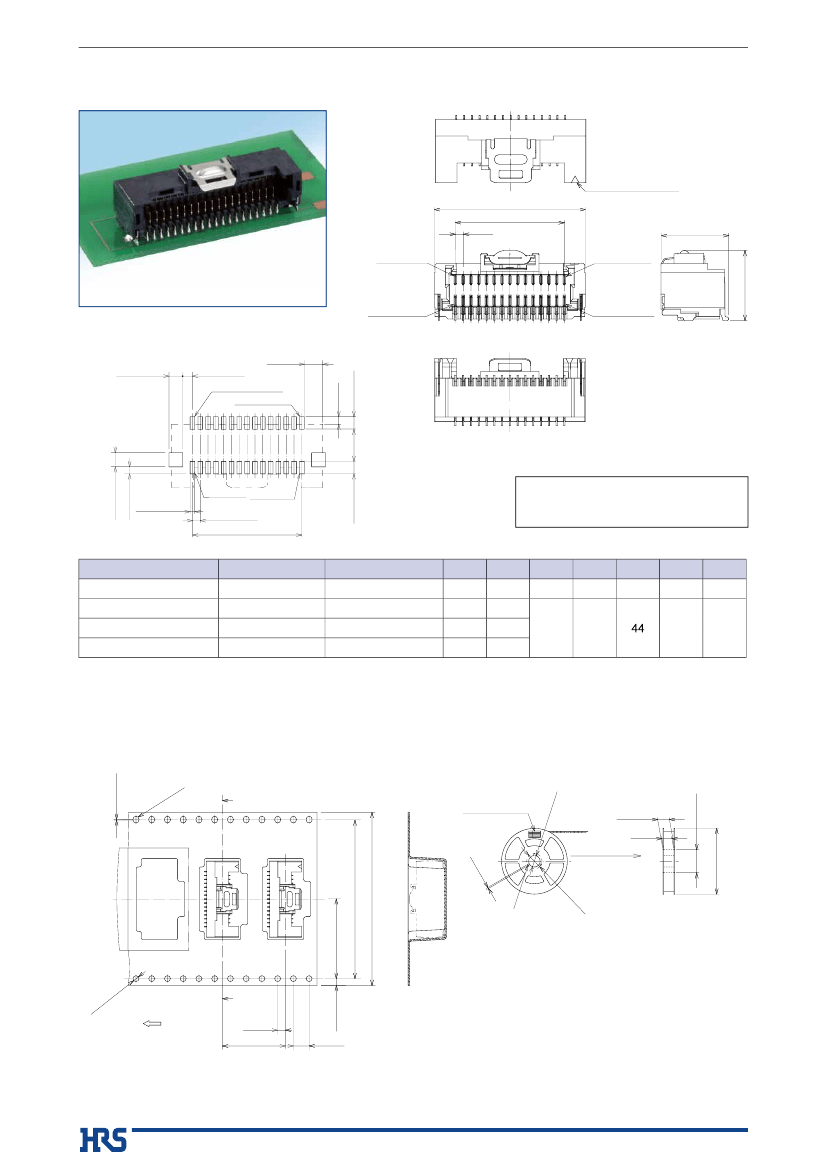

■Double-row
straight pin header
*: No. of Contacts
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
BRecommended
PCB Dimensions
[Specification Number :
**,
(**) ]
(51): Gold plating, embossed packaging
(52): Gold plating, embossed packaging,
with adsorption cap
Unit : mm
Part No.
DF50-20DP-1V (**)
DF50-30DP-1V (**)
DF50-40DP-1V (**)
DF50-50DP-1V (**)
HRS No.
665-0019-3 **
665-0001-8 **
665-0005-9 **
665-0011-1 **
No. of Contacts
20
30
40
50
A
13.18
18.18
23.18
28.18
B
9
14
19
24
C
14.2
20.2
D
28.4
40.4
E
32
44
F
38.4
50.4
G
32.4
44.4
(Note) Please place orders for embossed packaged products by the multiple of the number of reels. (1,000 pcs/reel)
B
Emboss tape dimensions
(JIS C 0806 compliant)
Contact No.1
B
Reel Condition Dimensions
Ø1
3±
Product Label
R1
Unreeling direction
(
)
Ø380±2
F MAX
Ø1.5 sprocket
hole far side
+2
G
0
Unreeling direction
Ø80±1
0.2
0
2±
.5
Ø2
1±
0.
8
3
DF50 Series●1mm Pitch, Board to Wire Lock Connector

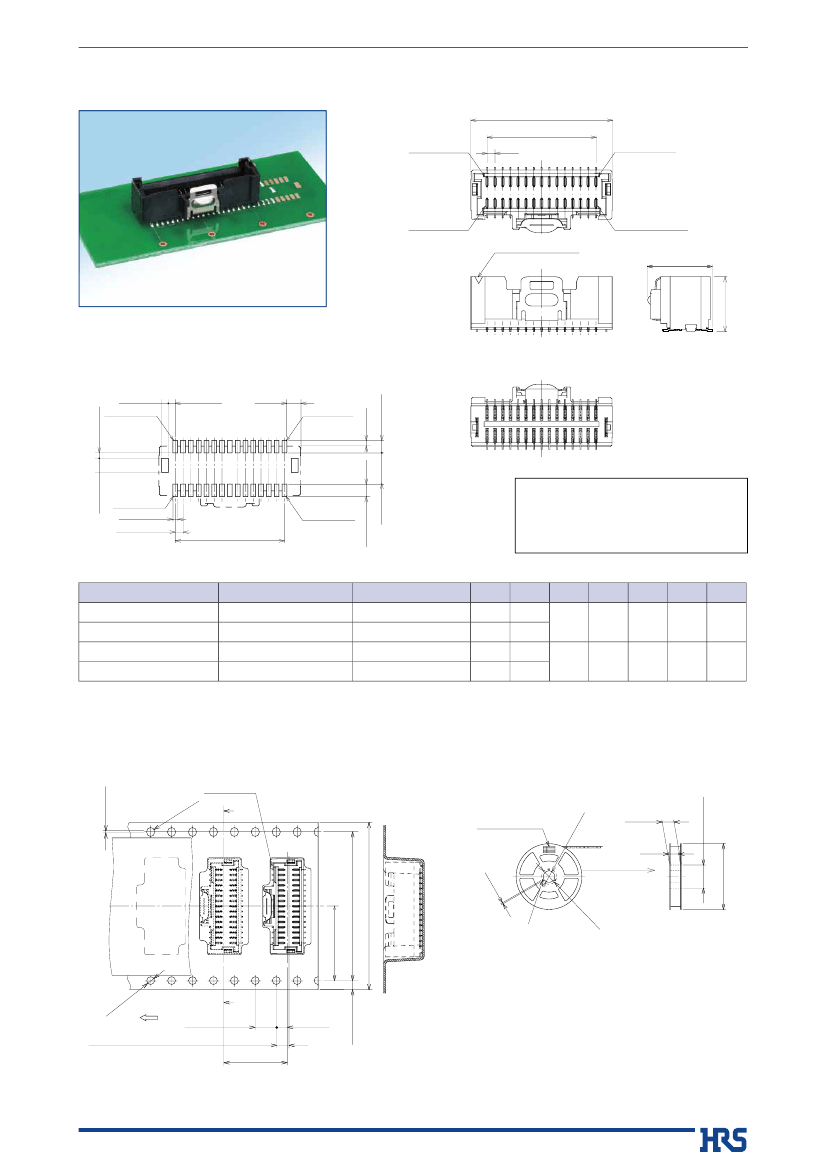

■Double-row
right angle pin header
*: No. of Contacts
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
BRecommended
PCB Dimensions
[Specification Number:
**,
(**)]
(51): Gold plating, embossed packaging
Unit : mm
Part No.
DF50-20DP-1H(**)
DF50-30DP-1H(**)
DF50-40DP-1H(**)
DF50-50DP-1H(**)
HRS No.
665-0016-5 **
665-0015-2 **
665-0014-0 **
665-0013-7 **
No. of Contacts
20
30
40
50
A
14.35
19.35
24.35
29.35
B
9
14
19
24
C
14.2
20.2
D
28.4
40.4
E
32
F
38.4
50.4
G
32.4
44.4
(Note) Please place orders for embossed packaged products by the multiple of the number of reels. (600 pcs/reel)
B
Emboss tape dimensions
(JIS C 0806 compliant)
B
Reel Condition Dimensions
2
Product Label
Ø13
±0.
Ø1.5 sprocket
F MAX
hole far side
+2
G
0
Unreeling direction
Ø80±1
Ø380±2
R1
2±
0.5
1
Ø2
±
8
0.
4
DF50 Series●1mm Pitch, Board to Wire Lock Connector

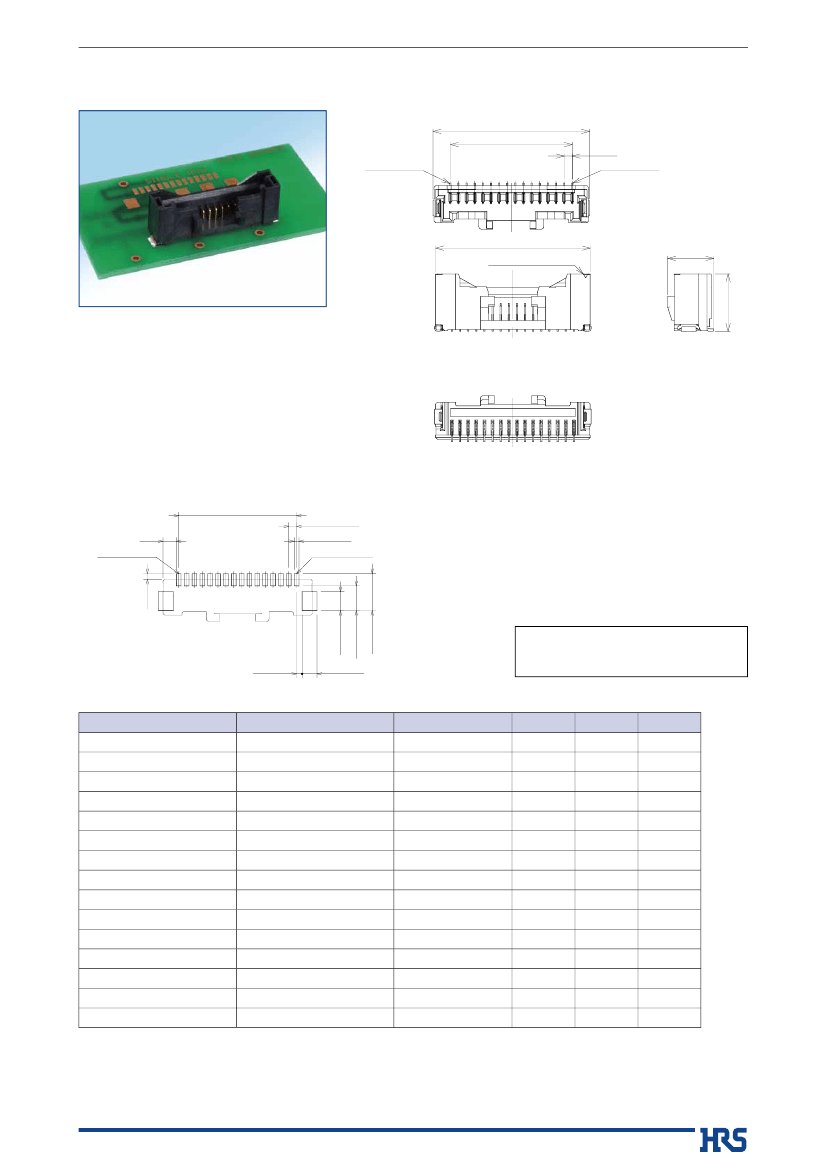

■Single-row
straight pin header
*: No. of Contacts
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
BRecommended
PCB Dimensions
[Specification Number:
**,
(**) ]
(51): Gold plating, embossed packaging
Unit : mm
Part No.
DF50A-2P-1V (**)
DF50A-3P-1V (**)
DF50A-4P-1V (**)
DF50A-5P-1V (**)
DF50A-6P-1V (**)
DF50A-7P-1V (**)
DF50A-8P-1V (**)
DF50A-9P-1V (**)
DF50A-10P-1V (**)
DF50A-11P-1V (**)
DF50A-12P-1V (**)
DF50A-13P-1V (**)
DF50A-14P-1V (**)
DF50A-15P-1V (**)
DF50A-16P-1V (**)
HRS No.
665-1001-3 **
665-1004-1 **
665-1006-7 **
665-1008-2 **
665-1010-4 **
665-1012-0 **
665-1014-5 **
665-1016-0 **
665-1017-3 **
665-1019-9 **
665-1021-0 **
665-1023-6 **
665-1025-1 **
665-1027-7 **
665-1029-2 **
No. of Contacts
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
A
5.25
6.25
7.25
8.25
9.25
10.25
11.25
12.25
13.25
14.25
15.25
16.25
17.25
18.25
19.25
B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
C
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
(Note) Please place orders for embossed packaged products by the multiple of the number of reels. (1,000 pcs/reel)
5
