F10-2950446R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> F10-2950446R

F10-2950446R: DescriptionFFC u0026 FPC Connectors 4 WAY SMT VERT 1000/REEL; CategoryThe connector The connector; File Size594KB，2 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

F10-2950446R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	F10-2950446R	-	-	View	Buy Now

F10-2950446R Overview

FFC u0026 FPC Connectors 4 WAY SMT VERT 1000/REEL

F10-2950446R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	LEAD FREE
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	ZIF
subject depth	0.22 inch
body length	0.433 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN (16) OVER NICKEL (8)
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.0988 mm
Plating thickness	16u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

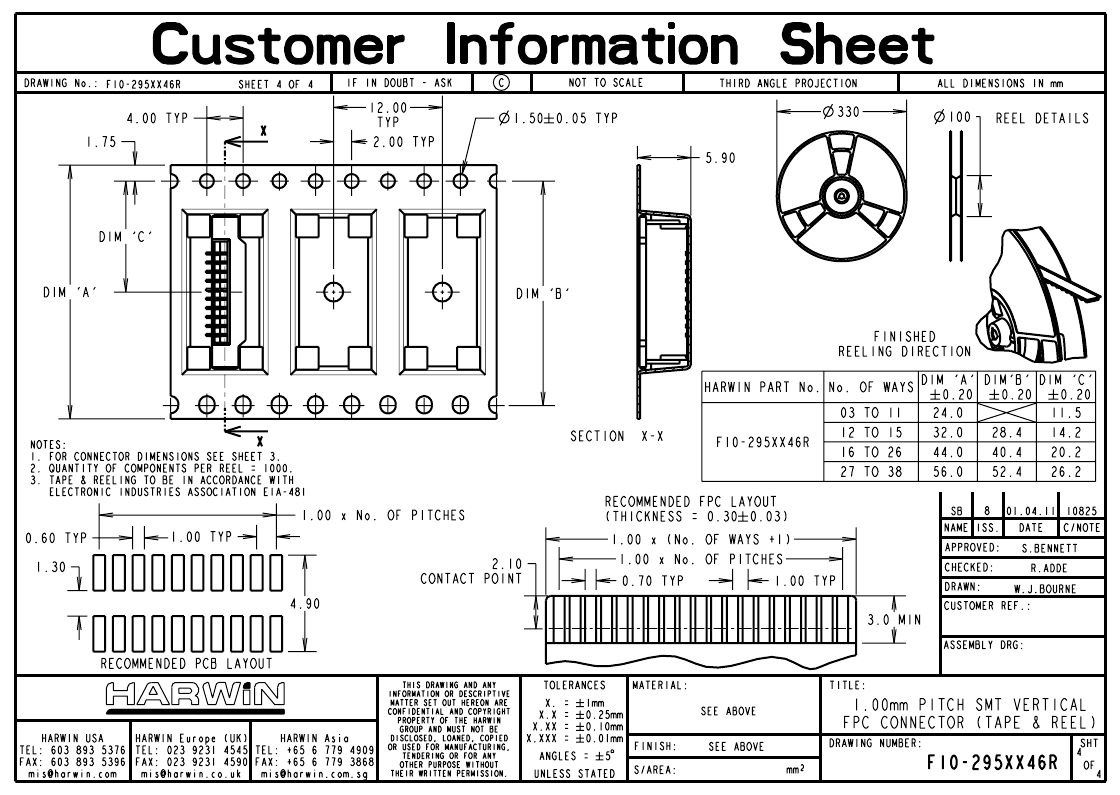

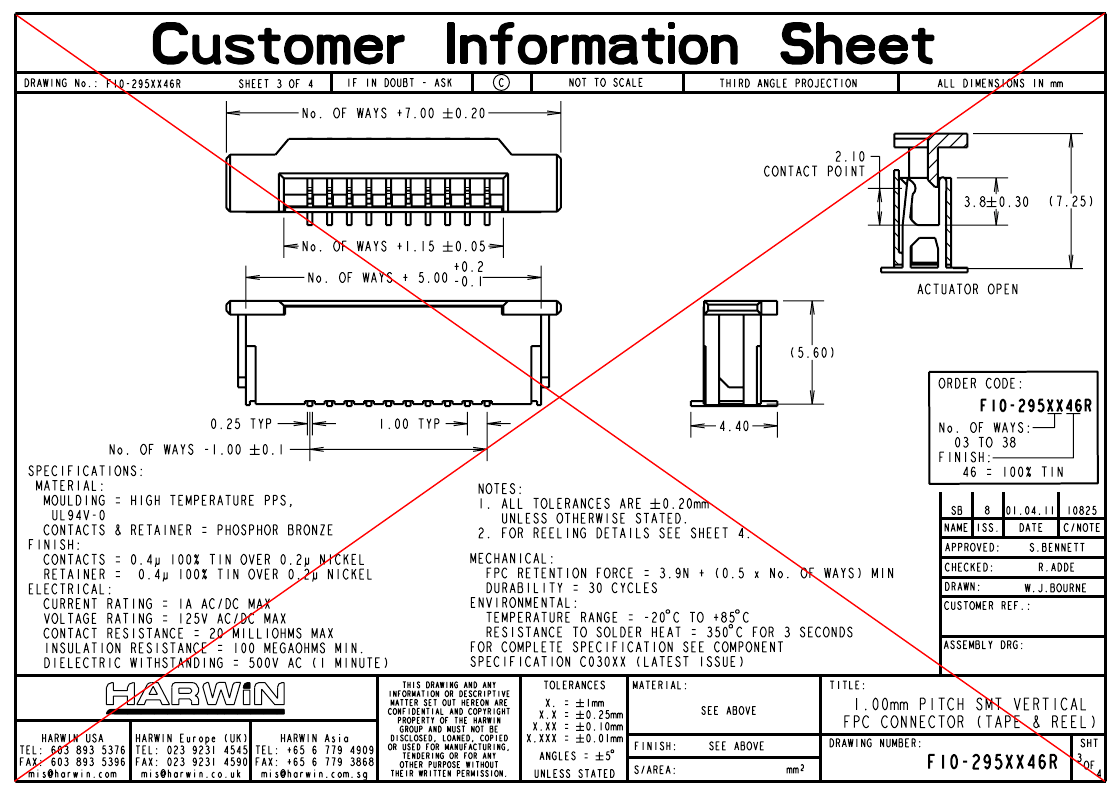

Preview

Download Datasheet

View All

OBSOLETE

F10-2950446R Related Products

	F10-2950446R	F10-2952646R	F10-2950846R	F10-2952246R	F10-2951946R	F10-2951446R	F10-2952546R	F10-2950746R	F10-2951546R
Description	FFC u0026 FPC Connectors 4 WAY SMT VERT 1000/REEL	FFC u0026 FPC Connectors 26 WAY SMT VERT FPC CONN 1K/RL		FFC u0026 FPC Connectors 22 WAY SMT VERT 1000/REEL	FFC u0026 FPC Connectors 19 WAY SMT VERT 1000/REEL	FFC u0026 FPC Connectors 14 WAY SMT VERT FPC CONN 1K/RL	FFC u0026 FPC Connectors 25 WAY SMT VERT FPC CONN 1K/RL	FFC u0026 FPC Connectors 7 WAY SMT VERT 1000/REEL	FFC u0026 FPC Connectors 15 WAY SMT VERT FPC CONN 1K/RL
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF	ZIF
subject depth	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch	0.22 inch
body length	0.433 inch	1.299 inch	0.591 inch	1.142 inch	1.024 inch	0.827 inch	1.26 inch	0.551 inch	0.866 inch
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN (16) OVER NICKEL (8)	TIN (16) OVER NICKEL (8)	TIN (16) OVER NICKEL (8)	TIN (16) OVER NICKEL (8)	TIN (16) OVER NICKEL (8)	TIN (16) OVER NICKEL (8)	TIN (16) OVER NICKEL (8)	TIN (16) OVER NICKEL (8)	TIN (16) OVER NICKEL (8)
Contact completed and terminated	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	2	2	2	2	2	2	2	2
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	3.0988 mm	3.0988 mm	3.0988 mm	3.0988 mm	3.0988 mm	3.0988 mm	3.0988 mm	3.0988 mm	3.0988 mm
Plating thickness	16u inch	16u inch	16u inch	16u inch	16u inch	16u inch	16u inch	16u inch	16u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	4	26	8	22	19	14	25	7	15
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	Harwin	Harwin	Harwin	-	Harwin	Harwin	Harwin	Harwin	Harwin
