390DS004NF1004C3 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 390DS004NF1004C3

390DS004NF1004C3: DescriptionCircular MIL Spec Backshells WATER TIGHT CBL SEAL DC LOW STRT MED DTY; CategoryThe connector Connector bracket; File Size378KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

390DS004NF1004C3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	390DS004NF1004C3	-	-	View	Buy Now

390DS004NF1004C3 Overview

Circular MIL Spec Backshells WATER TIGHT CBL SEAL DC LOW STRT MED DTY

390DS004NF1004C3 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	unknown
Factory Lead Time	8 weeks
Connector bracket type	CONNECTOR ACCESSORY
Base Number Matches	1

Preview

Download Datasheet

View All

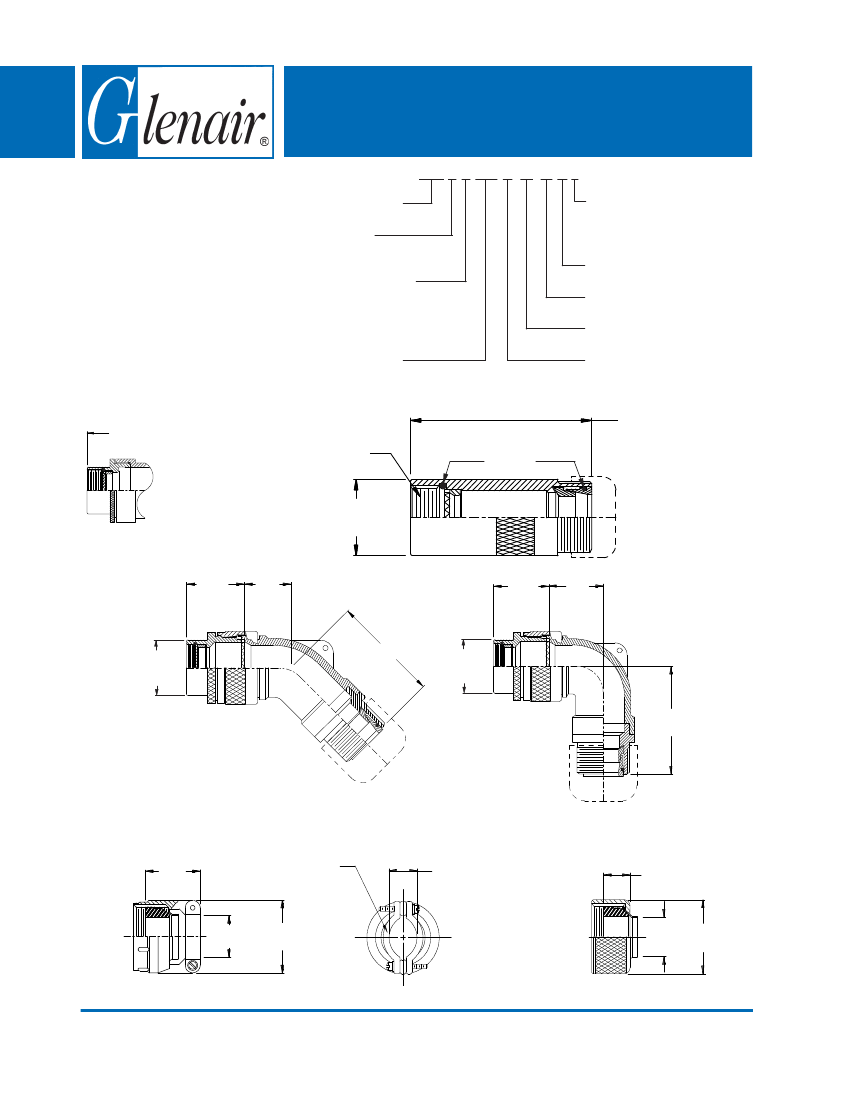

390-004

Water-Tight EMI/RFI Cable Sealing Backshell

with Strain Relief

Type A - Direct Coupling - Low Profile

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 6

CONNECTOR

DESIGNATORS

390 F S 004 M 16 10 E 6

Product Series

Connector

Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style (C, E)

Cable Entry (Tables X, XI)

Shell Size (Table I)

Finish (Table II)

DIRECT COUPLING

TYPE A OVERALL

SHIELD TERMINATION

Length ± .060 (1.52)

Min. Order Length 2.0 Inch

(See Note 4)

A Thread

(Table I)

O-Rings

Length ± .060 (1.52)

Min. Order

Length 1.5 Inch

(See Note 4)

STYLE 2

(STRAIGHT

See Note 1)

(Table III) (Table

IV)

(Table I)

(Table

III)

F (Table IV)

(Table I)

(Table

IV)

H (Table IV)

STYLE C

Medium Duty

(Table X)

Clamping

Bars

STYLE E

Medium Duty

(Table XI)

X (See

Note 5)

Cable

Range

Cable

Range

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 39 - Page 22
