K31XHT-E9P-NJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> K31XHT-E9P-NJ

K31XHT-E9P-NJ: CategoryThe connector The connector; File Size507KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

K31XHT-E9P-NJ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	K31XHT-E9P-NJ	-	-	View	Buy Now

K31XHT-E9P-NJ Parametric

Parameter Name	Attribute value
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.157 inch
body length	1.213 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	K31XHT
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	.7874 mm
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal length	0.087 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

K31X-E9P-N

Part Number Builder

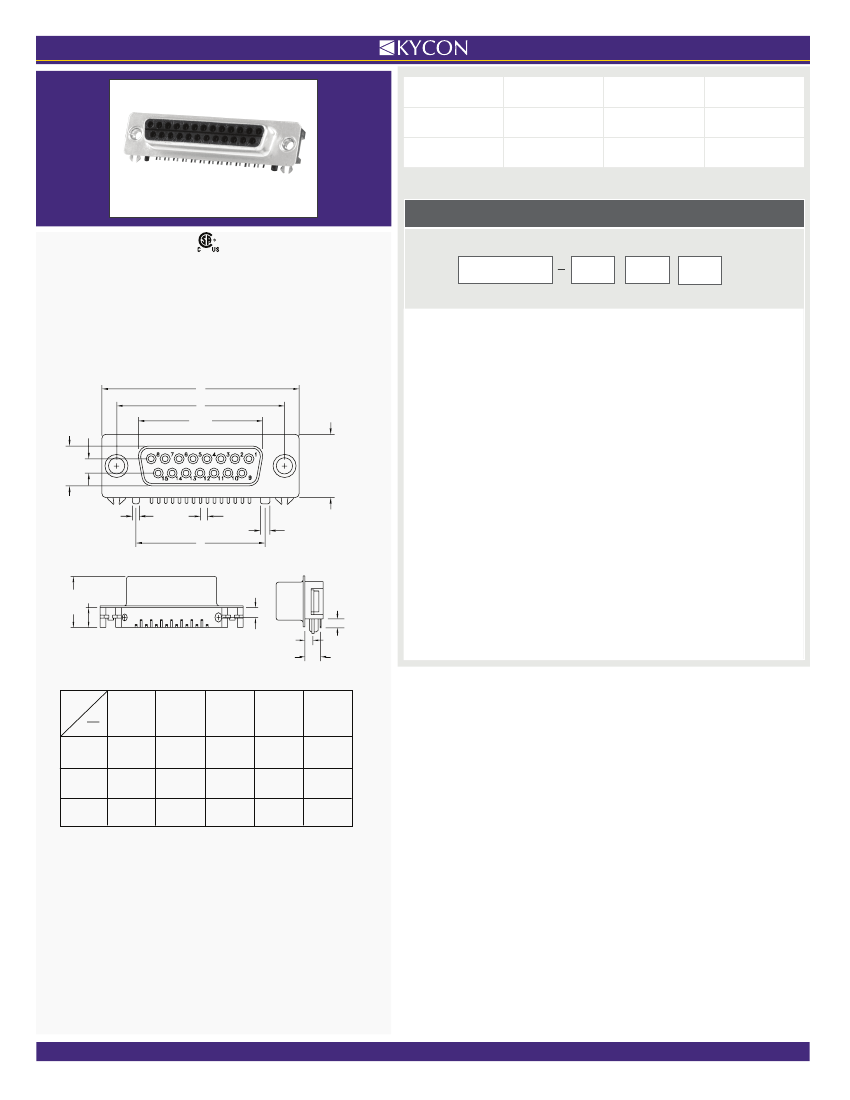

LR78160

D-SUBMINIATURE CONNECTORS:

K31X/K31XHT

Series

Right Angle

Thru Hole PCB Mount Ultra Compact Footprint

K31X/K31XHT

Series Dimensions

Dimensions in mm

A, A1

K31X

Series

Shell Size

Contact

Type

Mounting

Option

Series

K31X

D-Subminiature Connector, Right Angle, PCB Termination,

Ultra Compact Footprint

K31XHT

High Temperature Version

Shell Size-Contact Option

E-

9 Contacts

A-

15 Contacts

(Socket only)

- 25 Contacts

(Socket only)

- 15 Contacts,

High Density (Socket only)

Contact Type

- Pin Contact (Plug)

Available only with E9 Shell Size Option

- Socket Contact (Receptacle)

Mounting Option

- With Boardlocks and #4-40 UNC Threaded Inserts

- With Boardlocks and #4-40 Jackscrews Installed

2.20

1.80

3.50

2.84

8.36

Plug Interior

7.90

Socket Interior

1.40

1.385

1.90

10.40

4.00

2.00

12.55±0.25

Contact Kycon for Other Options

Shell

Size In

(E)

(A)

(B)

±.010

±0.25

.643

16.33

.971

24.66

1.511

38.38

±.010

±0.25

.666

16.92

±.005

±0.13

.984

24.99

1.312

33.32

1.852

47.04

±.015

±0.38

1.213

30.81

1.541

39.14

2.088

53.04

±.005

±0.13

.551

14.00

1.009

25.64

1.557

39.54

N/A

A = Exterior of Female Shell (S)

A1 = Interior of Male Shell (P)

Phone: +1.408.494.0330

Fax: +1.408.494.0325

WWW.KYCON.COM

2013
