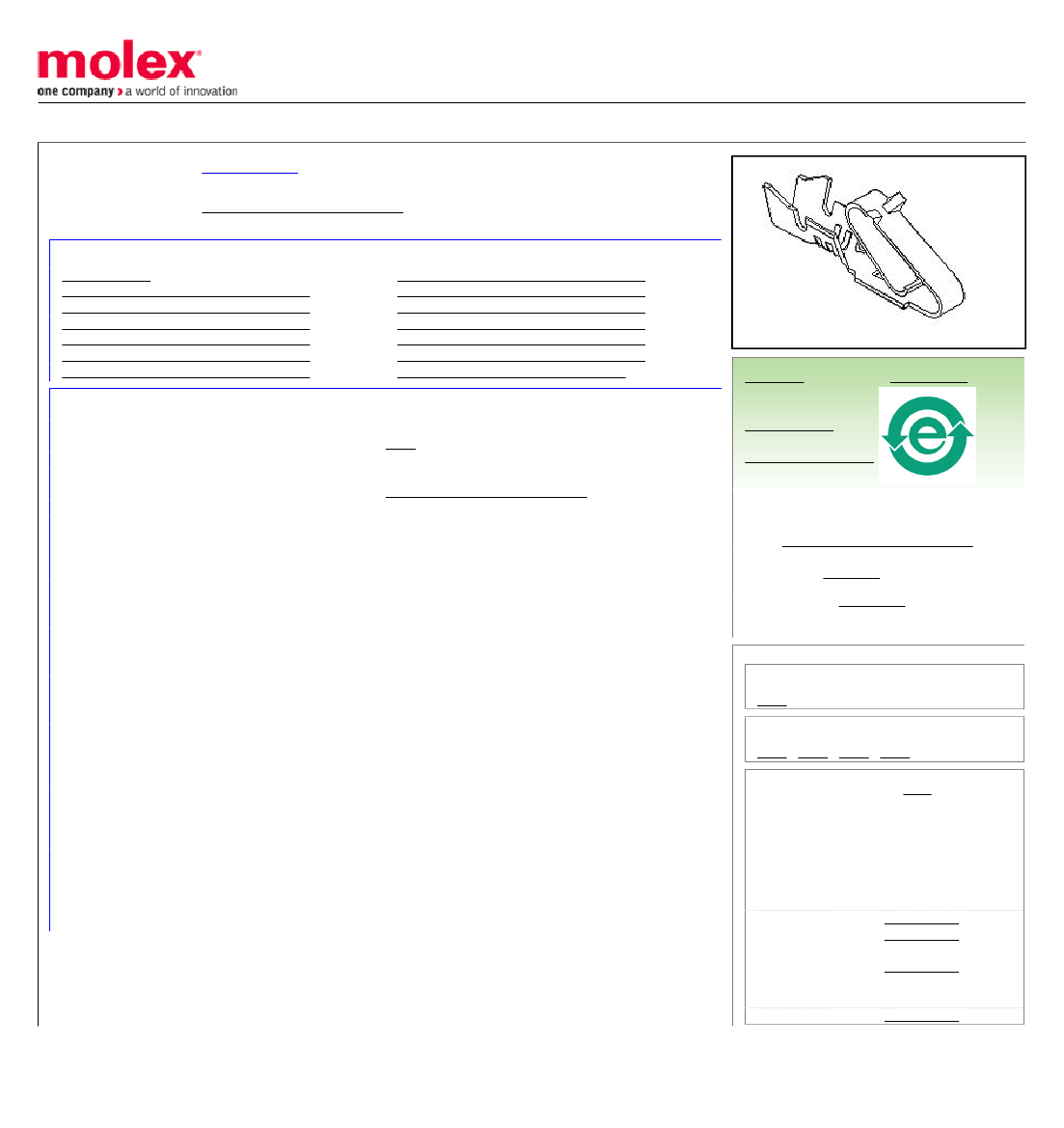

This document was generated on 06/30/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
08-70-0012
Active
KK® Interconnect System - Molex
3.96 and 5.08mm Pitch KK® Cat Ear Crimp Terminal, Female, 18-24 AWG, Reel
Documents:
Drawing (PDF)
Product Specification PS-5167-001 (PDF)
Product Specification PS-5167-002 (PDF)
Product Specification PS-5239-002 (PDF)
Product Specification PS-5239-003 (PDF)
Product Specification PS-5239-004 (PDF)
Product Specification PS-5239-005 (PDF)
Product Specification PS-5239-006 (PDF)
Product Specification PS-5239-007 (PDF)
Product Specification PS-5273-003 (PDF)
Product Specification PS-5273-004 (PDF)
Product Specification PS-5286-001 (PDF)
Product Specification PS-5286-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
General
Product Family
Series
Application
Crimp Quality Equipment
Overview
Product Name
UPC
Crimp Terminals
5167
Power
Yes
KK® Interconnect System - Molex
KK®
800753614307
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Gender
Material - Metal
Material - Plating Mating
Material - Plating Termination
Net Weight
Packaging Type
Plating min - Mating
Plating min - Termination
Termination Interface: Style
Wire Insulation Diameter
Wire Size AWG
Wire Size mm²
Female
Brass
Tin
Tin
200.000/mg
Reel
0.889µm
0.889µm
Crimp or Compression
1.30-2.50mm
18, 20, 22, 24
N/A
Search Parts in this Series
5167Series
Use With
5265 , 5239 , 5127 , 5258
Application Tooling
|
FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description
Product #
Hand Crimper
0638117500
Mini-Mac™
0638881200
Applicator
Terminator Die
0011402181
Japan
Description
Product #
Hand Extraction Tool 0011260059
Material Info
Old Part Number
5167T
Reference - Drawing Numbers
Crimp Specification
Product Specification
CS-5167
PS-5167-001, PS-5167-002, PS-5239-002,
PS-5239-003, PS-5239-004, PS-5239-005,
PS-5239-006, PS-5239-007, PS-5273-003,
PS-5273-004, PS-5286-001, PS-5286-002
SD-5167*
Sales Drawing
This document was generated on 06/30/2014
