3M
™

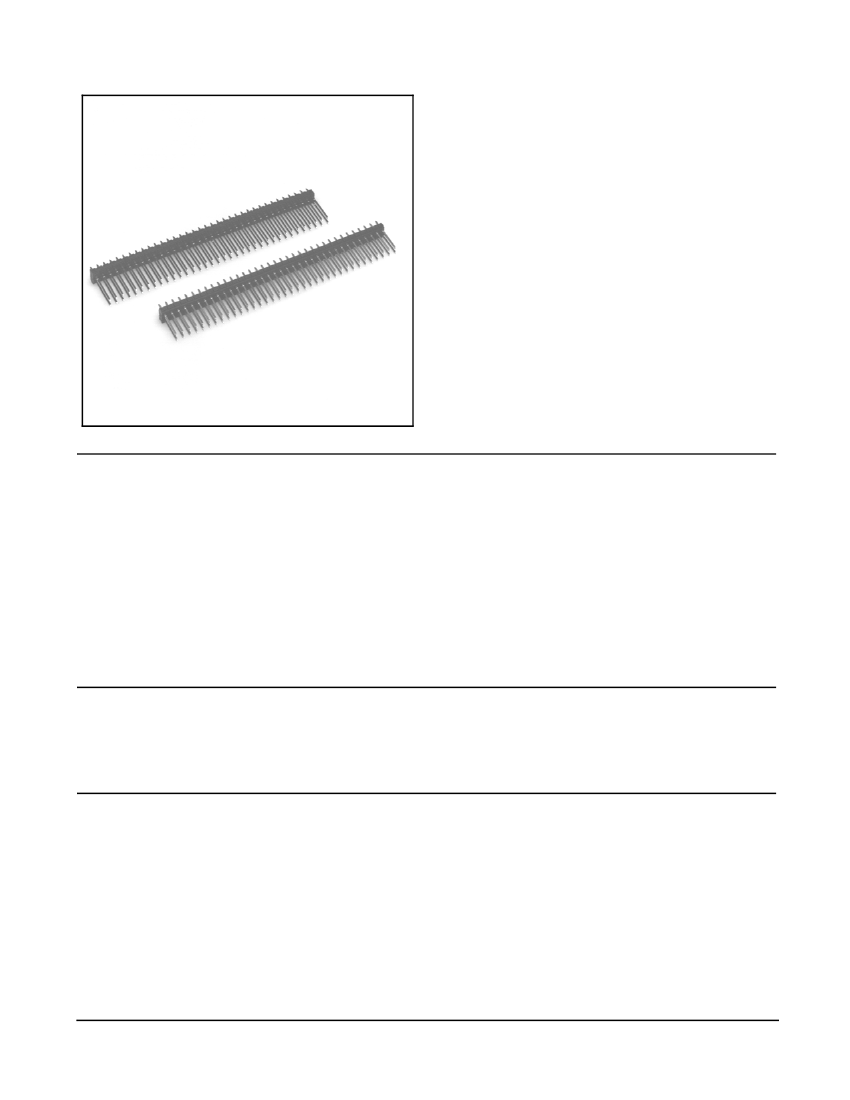

Pin Strip Header
.100"
×
.100" Board Stacking
92X Series
•
•
•
•
•
35 sizes (4 to 72 position)
Standard .025″ square posts
.100″ spacing between posts
Board pin retention feature available
See Regulatory Information Appendix (RIA)
for chemical compliance information
1/
17
Date Modified: May 21, 2007
TS-0541-B
Sheet 1 of 2
Physical
Insulation
Environmental
Temperature Rating:
-40°C to +105°C
Process Rating:
260°C, (High Temperature (PCT) ) version only single pass
3M
Interconnect Solutions
http://www.3M.com/interconnects/
D
IS
(profile per J-STD-020C)
(Standard Temperature (PBT) version), Maximum molded
insulator temperature 191°C (Solder Wave Process Only)
Moisture Sensivity Level:
1 (per J-STD-020C) High Temperature (PCT) version only
C
Electrical
Insulation Resistance:
> 5
×
10
9
Ω
at 500 V
DC
Withstanding Voltage:
1500 V
RMS
at Sea Level
O
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
Wiping Area:
Marking
50
μ″
[ 1.27
μm
] Nickel
10
μ″
[ 0.25
μm
] Gold
None
Current Rating:
2.5 A
N
T
Copper Alloy
IN
Glass Filled Polyester (PBT) or High Temperature PCT
UL 94V-0
Black
U
E
D
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pin Strip Header
.100"
×
.100" Board Stacking
Plating
3M Part Number Tail Length Code
A
92X Series
Dimensions
B
E
Table 1
926142
Gold
926382
924527
Table 2
Pin Code
Pin
Quantity
Dimension C
01
01
28
0.428 [10.87]
0.545 [13.84]
0.235 [ 5.97]
0.100 [ 2.54]
0.100 [ 2.54]
0.793 [20.14]
0.628 [15.95]
0.745 [18.92]
1.128 [28.65]
C
.215 [5.46]
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
04
06
08
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
54
56
58
60
62
64
66
68
70
72
(See Note 1)
0.20 [ 5.1]
0.30 [ 7.6]
0.40 [10.2]
0.50 [12.7]
0.60 [15.2]
0.70 [17.8]
0.80 [20.3]
0.90 [22.9]
1.00 [25.4]
1.10 [27.9]
1.20 [30.5]
1.30 [33.0]
1.40 [35.6]
1.50 [38.1]
1.60 [40.6]
1.70 [43.2]
1.80 [45.7]
1.90 [48.3]
2.00 [50.8]
2.10 [53.3]
2.20 [55.9]
2.30 [58.4]
2.40 [61.0]
2.50 [63.5]
2.60 [66.0]
2.70 [68.6]
2.80 [71.1]
2.90 [73.7]
3.00 [76.2]
3.10 [78.7]
3.20 [81.3]
3.30 [83.8]
3.40 [86.4]
3.50 [88.9]
3.60 [91.4]
2X .05 Max
[1.27]
(See Note 1)
17
.060
[1.52]
A
±
.008
.100
[2.54]
U
E
D
B
±
.015
1/
E Ref
.100
[2.54]
Ø .040
±
.003 After Plating
[1.02]
.100
[2.54]
TS-0541-B
Sheet 2 of 2
.025 Sq Typ
[0.64]
.100 Typ
[2.54]
C
O
Tail Length Code
(See Table 1)
N
.100
[2.54]
IS
3M Part Number
(See Table 1)
Notes:
1.Dimension C is a maximum when the pin strip is cut to length, Breaking not recommended on dual row parts.
2.Board pin retention feature available: change from ‘‘926'' to ‘‘9R6'' when ordering.
Ordering Information
92XXXX-XX-XX-XX
Pin Code
(See Table 2)
Plating Suffix
I = 10µ" [0.25 µm] Gold all over, PBT insulator (RIA E1 & C1 apply)
EU = 10µ" [0.25 µm] Gold all over, PCT insulator (RIA E1 & C1 apply)
3M
Interconnect Solutions
http://www.3M.com/interconnects/
D
T
Recommended Hole Pattern
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
IN
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/
EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix E4: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product contains decaBDE in the insulating material in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/17/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision
2005/618/EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in
writing, this information represents 3M’s best knowledge and belief based upon information provided by third party
suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
D
IS
C
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
O
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment as
amended by Commission Decision 2005/618/EC.
This product contains lead in the solder tail area in excess of the maximum concentration value allowed.
Unless otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon
information provided by third party suppliers to 3M.
N
T
Appendix E3: European Union RoHS
IN
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
U
E
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC
This product contains lead in the compliant pin area in excess of the maximum concentration value allowed but is
compliant by exemption under EU Commission Decision 2005/747/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in
excess of the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/
EC, unless the substance is in an application that is exempt under EU RoHS. Unless otherwise stated by 3M in writing, this
information represents 3M’s best knowledge and belief based upon information provided by third party suppliers to 3M.
D
1/
Appendix E2: European Union RoHS
17
RIA-2217-B
CHINA
Appendix C1: China RoHS
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits
for Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006,
means that the product or part
does not
contain any of the following substances in excess of the following maximum
concentration values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent chromium,
polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise
stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information provided by
third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix, then 3M’s entire liability
and Buyer’s exclusive remedy will be in accordance with the Warranty stated below.
Appendix C2: China RoHS
20
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the
accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended
application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in 3M’s
current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed upon, in
writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER
WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.
If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s option, to
replace or repair the 3M product or refund the purchase price of the 3M product.
Except where prohibited by law, 3M will not be liable for any
indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal theory asserted.
3
Electronic Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
800/225-5373
www.3M.com/interconnects
RIA-2217-B
© 3M 2007
D
IS
C
O
N
T
IN
The numerical reference in the symbol above should not be construed as a representation regarding the product’s life or an
extension of a product warranty. The product warranty is stated below. In the event any product is proven not to conform
with 3M’s Regulatory Information Appendix, then 3M’s entire liability and Buyer’s exclusive remedy will be in
accordance with the product Warranty stated below.
Name and Content of Hazardous Substances or Elements
U
E
Electronic Industry Standard of the People’s Republic of China, SJ/T11363-2006, Requirements for Concentration Limits
for Certain Hazardous Substances in Electronic Information Products.
This symbol, per Marking for the Control of Pollution Caused by Electronic Information Products, SJ/T11364-2006,
means that the product or part
does
contain a substance, as detailed in the chart below, in excess of the following
maximum concentration values in any homogeneous material: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless
otherwise stated by 3M in writing, this information represents 3M’s best knowledge and belief based upon information
provided by third party suppliers to 3M.
D
1/
17
