M85049-6-44W

Description
Circular MIL Spec Backshells
CategoryThe connector
File Size170KB,2 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

M85049-6-44W Online Shopping

Suppliers Part Number Price MOQ In stock
M85049-6-44W - - View Buy Now

M85049-6-44W Overview

Circular MIL Spec Backshells

M85049-6-44W Parametric

Parameter NameAttribute value
Product CategoryCircular MIL Spec Backshells
ManufacturerGlenair
MIL TypeMIL-DTL-5015, MIL-DTL-26482 II
ProductEnvironmental EMI/RFI Backshells
Shell Style45 Deg
Shell Size22
Shell PlatingOlive Drab Cadmium over Electroless Nickel
Shell MaterialAluminum Alloy
Mating StyleRotatable Coupling
Mounting Angle45 Deg
Factory Pack Quantity1

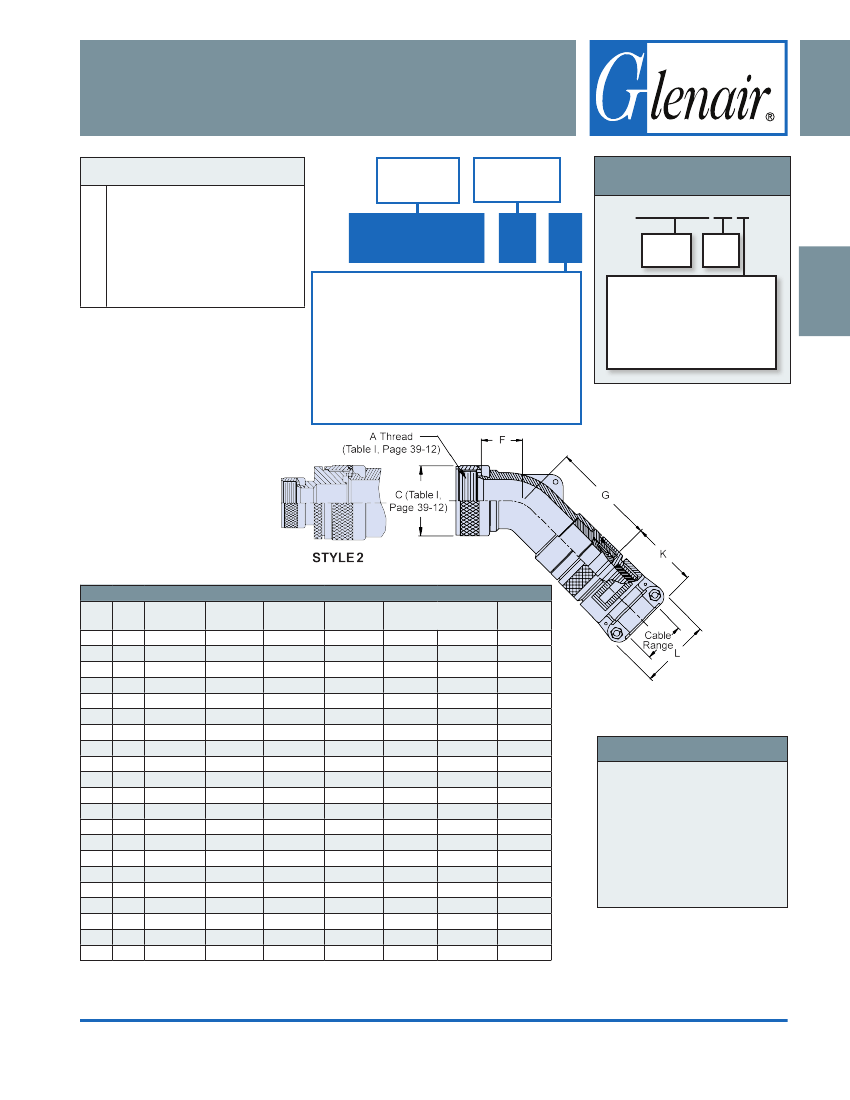

AS85049/6 and MS3189A
45° EMI/RFI Environmental Backshell
Superseded
Part Number
CONNECTOR DESIGNATOR:
AS50151 Series 34001
MIL-DTL-26482 Series II
AS81703 Series III
MIL-DTL-83723 Series I & III
40M39569, DEF 5326-3, EN 2997
EN 3646, ESC 10, ESC 11, LN 29504
NFC93422 Series HE302
PAN 6432-1, PAN 6432-2, PATT 602
Basic
Part Number
Dash Number
(Table II)
MS3189A 21 C
A
M85049/6
-
21
W
Basic
Part No.
Dash
No.
Finish / Material
B
= Black Cadmium / Stainless Steel
N
= Electroless Nickel / Aluminum
S
= Passivated / Stainless Steel
W
= 1,000 Hr. Cadmium Olive Drab
over Electroless Nickel / Aluminum
X
= Aluminum, Nickel Fluorocarbon Polymer
Z
= Aluminum, Zinc-Nickel, Black
XS
= Stainless Steel, Nickel Flurocarbon Polymer
ZS
= Stainless Steel, Zinc-Nickel, Black
(Material is Aluminum Only)
A
=
Cadmium Olive Drab over Nickel
C
=
Cadmium Olive Drab
N
=
Electroless Nickel
Finish
B
TABLE I: Dash Number, Cable Range and Dimensions
Dash
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Shell
Size
3
3
8
10
10
12
12
12
14
14
16
16
18
18
20
20
22
22
24
24
28
F
Max
.686 (17.4)
1.500 (38.1)
.625 (15.9)
.686 (17.4)
.686 (17.4)
.750 (19.1)
.750 (19.1)
.750 (19.1)
.813 (20.7)
.813 (20.7)
.906 (23.0)
.906 (23.0)
1.093 (27.8)
1.093 (27.8)
1.093 (27.8)
1.093 (27.8)
1.188 (30.2)
1.188 (30.2)
1.188 (30.2)
1.188 (30.2)
1.313 (33.4)
G
Max
2.034 (51.7)
1.306 (33.2)
1.974 (50.1)
1.369 (34.8)
2.034 (51.7)
2.034 (51.7)
2.034 (51.7)
2.124 (53.9)
1.779 (45.2)
2.234 (56.7)
1.874 (47.6)
2.424 (61.6)
2.062 (52.4)
2.424 (61.6)
2.062 (52.4)
2.574 (65.4)
2.217 (56.3)
2.574 (65.4)
2.217 (56.3)
2.624 (66.6)
2.562 (65.1)
K
Ref.
1.544 (39.2)
1.544 (39.2)
1.544 (39.2)
1.544 (39.2)
1.544 (39.2)
1.544 (39.2)
1.544 (39.2)
1.844 (46.8)
1.544 (39.2)
1.844 (46.8)
1.544 (39.2)
1.916 (48.7)
1.844 (46.8)
2.000 (50.8)
1.844 (46.8)
2.000 (50.8)
1.916 (48.7)
2.230 (56.6)
1.916 (48.7)
2.230 (56.6)
2.000 (50.8)
L
Max
.957 (24.3)
1.145 (29.1)
.957 (24.3)
.957 (24.3)
1.145 (29.1)
.957 (24.3)
1.145 (29.1)
1.332 (33.8)
1.145 (29.1)
1.332 (33.8)
1.145 (29.1)
1.551 (39.4)
1.332 (33.8)
1.770 (45.0)
1.332 (33.8)
1.770 (45.0)
1.551 (39.4)
2.113 (53.7)
1.551 (39.4)
2.113 (53.7)
1.770 (45.0)
Cable Range
Min
Max
.125 (3.2)
.250 (6.4)
.125 (3.2)
.125 (3.2)
.250 (6.4)
.125 (3.2)
.250 (6.4)
.350 (8.9)
.250 (6.4)
.350 (8.9)
.250 (6.4)
.500 (12.7)
.350 (8.9)
.625 (15.9)
.350 (8.9)
.625 (15.9)
.500 (12.7)
.875 (22.2)
.500 (12.7)
.875 (22.2)
.625 (15.9)
.250 (6.4)
.437 (11.1)
.250 (6.4)
.312 (7.9)
.375 (9.5)
.312 (7.9)
.437 (11.1)
.500 (12.7)
.437 (11.1)
.575 (14.6)
.437 (11.1)
.700 (17.8)
.625 (15.9)
.779 (19.8)
.625 (15.9)
.904 (23.0)
.750 (19.1)
1.029 (26.1)
.750 (19.1)
1.144 (29.1)
.937 (23.8)
M85049/42
Ref.
4
6
4
4
6
4
6
10
6
10
6
12
10
16
10
16
12
20
12
20
16
APPLICATION NOTES
1.
2.
3.
4.
For complete dimensions see the
applicable Military Specification.
When maximum cable entry is
exceeded, Style 2 will be supplied.
Metric dimensions (mm) are in
parentheses.
Cable Range is defined as the
accommodation range for the wire
bundle or cable. Dimensions shown
are not intended for inspection
criteria.
Continued on Page B-20
© 2013 Glenair, Inc.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
B-19
E-Mail: sales@glenair.com
AS85049
