180-091ZNU06-13-4PN datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 180-091ZNU06-13-4PN

Preview

180-091ZNU06-13-4PN: DescriptionCircular MIL Spec Connector; CategoryThe connector; File Size354KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

180-091ZNU06-13-4PN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	180-091ZNU06-13-4PN	-	-	View	Buy Now

180-091ZNU06-13-4PN Overview

Circular MIL Spec Connector

180-091ZNU06-13-4PN Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Connector
Manufacturer	Glenair
Number of Positions	4 Position
Insert Arrangement	13-4
Contact Gender	Pin (Male)
MIL Type	MIL-DTL-38999 III
Product	Plugs
Shell Size	13
Shell Style	Plug
Mounting Style	Cable
Termination Style	Solder
Current Rating	-
Contact Plating	-
Mating Style	Threaded
Mounting Angle	Straight
Shell Material	Aluminum Alloy
Shell Plating	Zinc Nickel
Factory Pack Quantity	1
Voltage Rating	-
Wire Gauge	-

Preview

Download Datasheet

View All

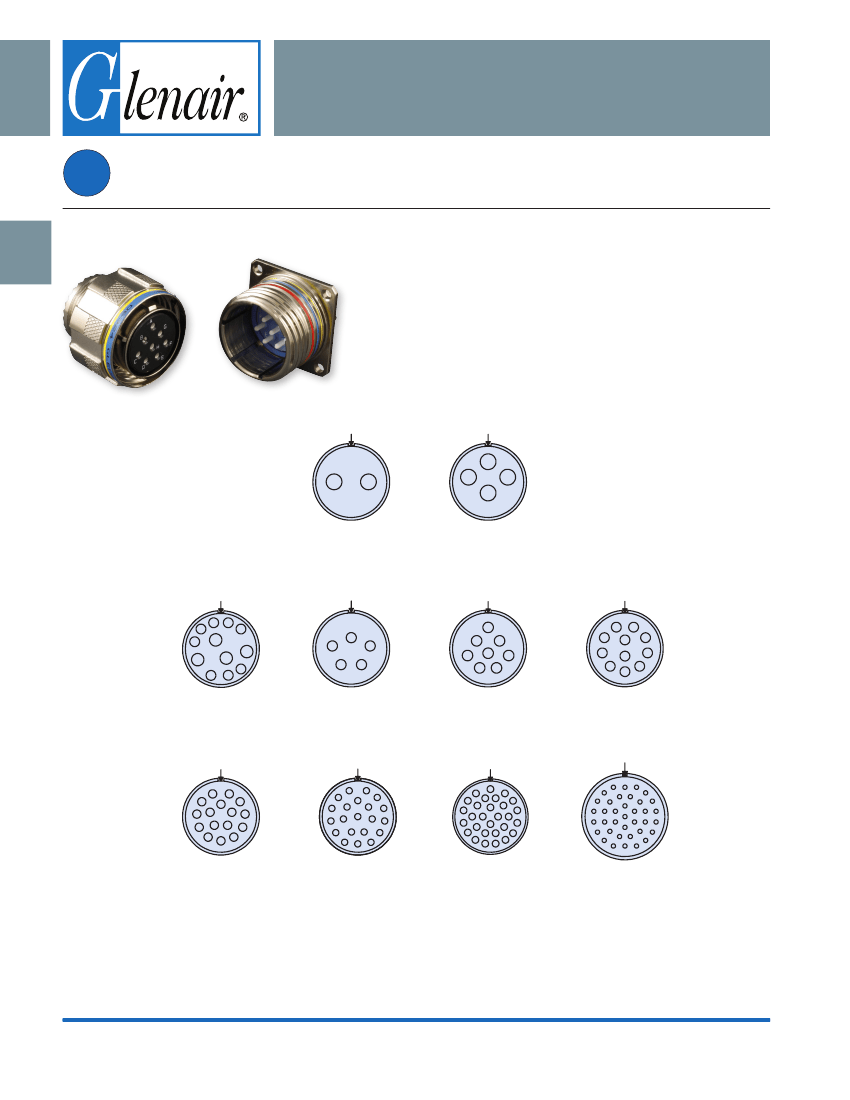

180-091

MIL-DTL-38999 Series III Type

Fiber Optic Connection System

Contact Arrangements

D38999

Series III

MIL-DTL-38999

Series III Type

B

MIL-DTL-38999 type advanced fiber optic connectors

A

B

A

D

B

C

Shell Size 11

Arrangement 2

Shell Size 13

Arrangement 4

K

A

B

A

E

C

A

J

H

G

L

M

B

G

H

F

B

H

G

C

J

K

L

A

B

C

D

E

D

C

F

E

D

F

E

Shell Size 15

Arrangement 97

Shell Size 15

Arrangement 5

Shell Size 17

Arrangement 8

Shell Size 19

Arrangement 11

L

K

J

S

M

A

B

N

C

L

N

M

W

V

K

D

E

J

H

U

G

X

P

A

B

R

S

T

E

F

D

C

N

M

P

A

R

b

S

c

T

B

U

C

U

T

S

D

E

A

g

V

h

r

B

W

k

m

C

D

X

Y

Z

G

H

E

F

f

e

d

p

c

M

L

n

b

a

Z

f

e

Y

d

V

W

R

P

N

q

H

G

R

F

P

X

F

L

K

J

H

G

a

K

J

Shell Size 21

Arrangement 16

Shell Size 23

Arrangment 21

Shell Size 25

Arrangement 29

Shell Size 25

Arrangement 37

Mating face of pin insert shown

Contact Arrangements per MIL-STD-1560

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

B-12

E-Mail: sales@glenair.com

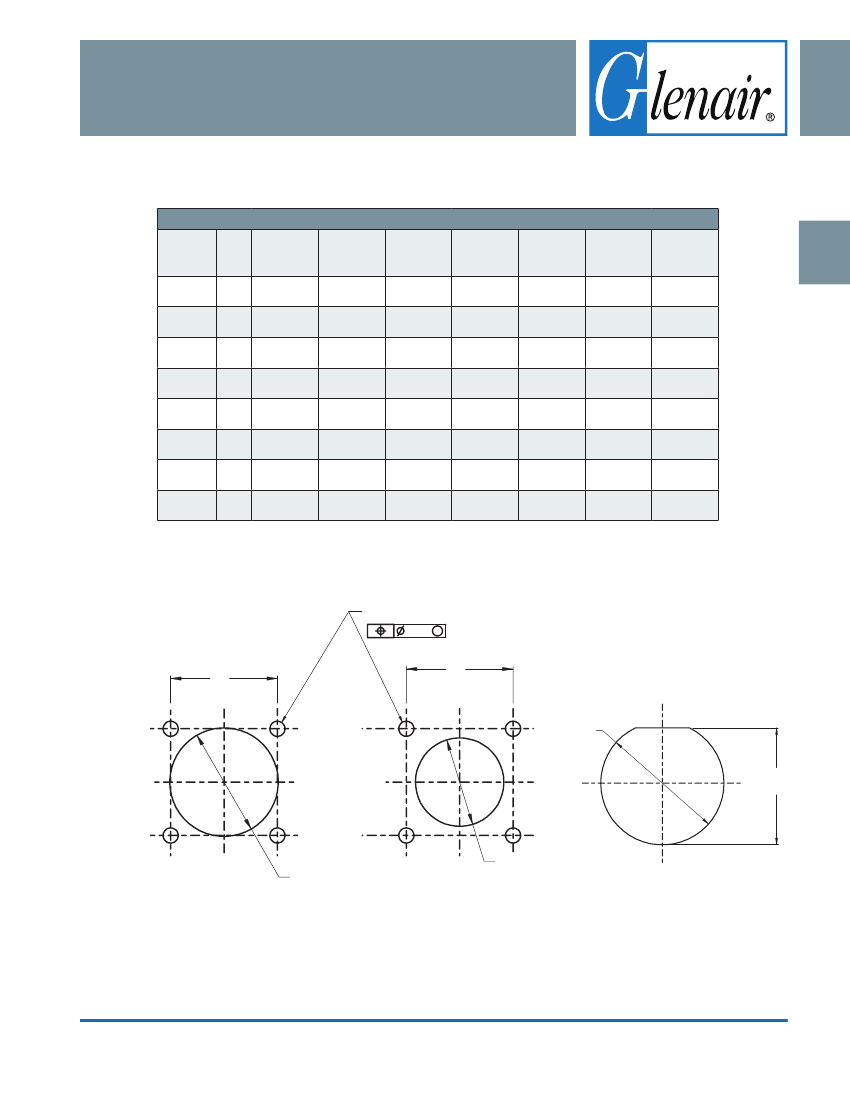

180-091ZNU06-13-4PN Related Products

	180-091ZNU06-13-4PN	180-091MS7-11-2SN	180-091M06-15-5PN	180-091XW06-17-8PA	180-091XM06-11-2SB	180-091XMS7-25-37PC	180-091XMS7-19-11SA	180-091XW06-17-8SC	180-091M06-11-2SA
Description	Circular MIL Spec Connector		Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector
Product Category	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector	Circular MIL Spec Connector
Manufacturer	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair	Glenair
Factory Pack Quantity	1	1	1	1	1	1	1	1	1
Number of Positions	4 Position	2 Position	5 Position	8 Position	2 Position	-	-	-	2 Position
Insert Arrangement	13-4	11-2	15-5	17-8	11-2	-	-	-	11-2
Contact Gender	Pin (Male)	Socket (Female)	Pin (Male)	Pin (Male)	Socket (Female)	-	-	-	Socket (Female)
MIL Type	MIL-DTL-38999 III	MIL-DTL-38999 III	MIL-DTL-38999 III	MIL-DTL-38999 III	MIL-DTL-38999 III	-	-	-	MIL-DTL-38999 III
Product	Plugs	Receptacles	Plugs	Plugs	Plugs	-	-	-	Plugs
Shell Size	13	11	15	17	11	-	-	-	11
Shell Style	Plug	Square Flange	Plug	Plug	Plug	-	-	-	Plug
Mounting Style	Cable	Wall Mount	Cable	Cable	Cable	-	-	-	Cable
Termination Style	Solder	Crimp	Solder	Solder	Crimp	-	-	-	Crimp
Mating Style	Threaded	Threaded	Threaded	Threaded	Threaded	-	-	-	Threaded
Mounting Angle	Straight	Straight	Straight	Straight	Straight	-	-	-	Straight
Shell Material	Aluminum Alloy	Aluminum Alloy	Aluminum Alloy	Composite	Composite	-	-	-	Aluminum Alloy
Shell Plating	Zinc Nickel	Electroless Nickel	Electroless Nickel	Olive Drab Cadmium	Electroless Nickel	-	-	-	Electroless Nickel
