15210165601000 datasheet, PDF - EEWORLD Datasheet

15210165601000: DescriptionBoard to Board u0026 Mezzanine Connectors har-flex str f 6.25mm 16p S4 280pcs; CategoryThe connector The connector; File Size361KB，1 Pages; ManufacturerHARTING

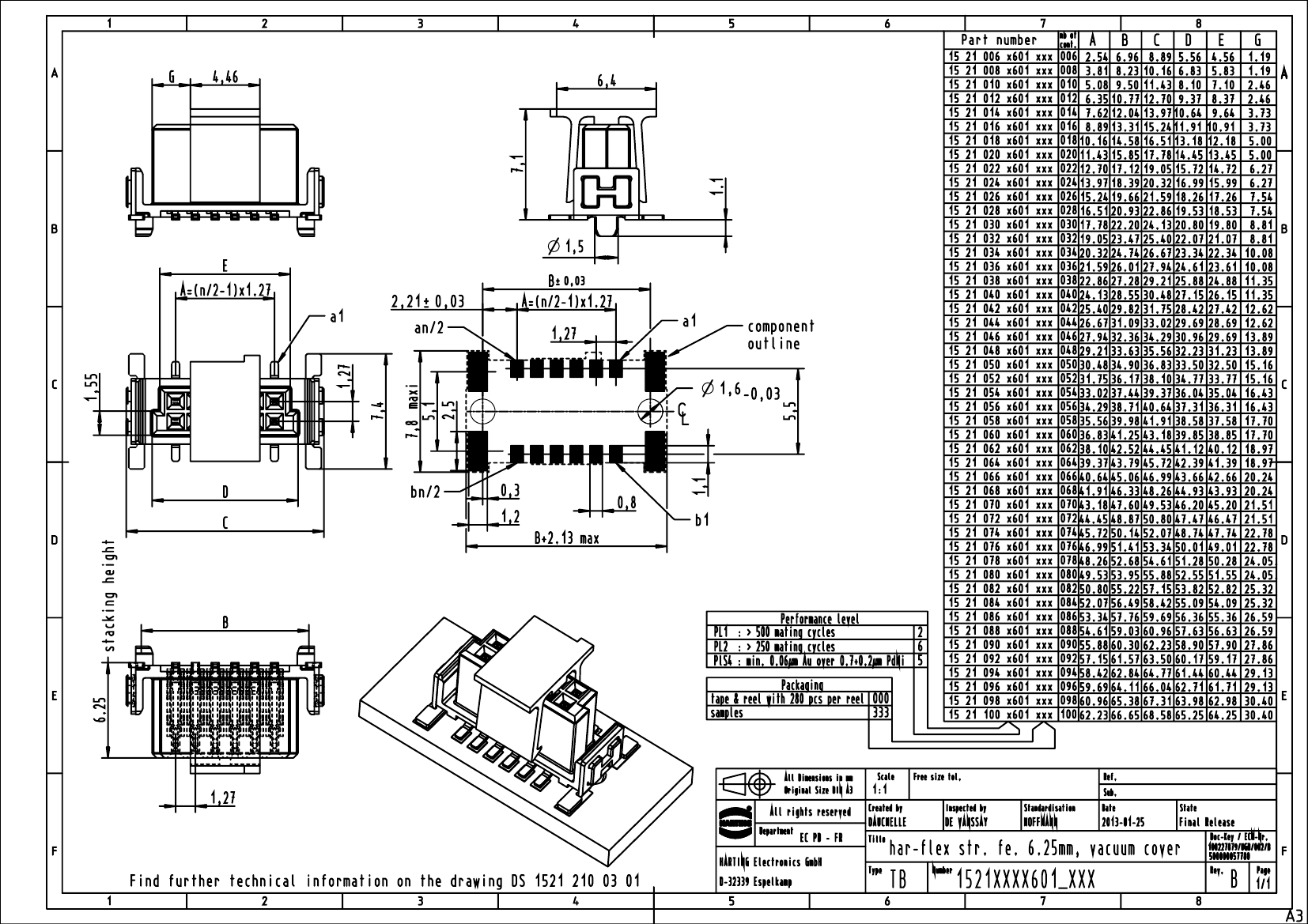

Download Datasheet Parametric View All

15210165601000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	15210165601000	-	-	View	Buy Now

Board to Board u0026 Mezzanine Connectors har-flex str f 6.25mm 16p S4 280pcs

Parameter Name	Attribute value
Maker	HARTING
Reach Compliance Code	compliant
Samacsys Description	Connectors, Female connector, Reflow soldering termination (SMT), Contacts: 16, Straight
Board mount options	FITTING NAIL
body width	0.291 inch
subject depth	0.246 inch
body length	0.6 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON PD-NI
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
maximum insertion force	.5004 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	1521
Plug contact pitch	0.05 inch
Match contact row spacing	0.053 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.4864 mm
Plating thickness	24u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	16
Evacuation force-minimum value	.5004 N
