BL-HGX33-B02 datasheet, PDF - EEWORLD Datasheet

BL-HGX33-B02: DescriptionSingle Color LED, Green, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size433KB，6 Pages; ManufacturerBRIGHT; Websitehttp://www.brightled.co.kr/

Download Datasheet Parametric Compare View All

BL-HGX33-B02 Overview

Single Color LED, Green, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2

Parameter Name	Attribute value
Maker	BRIGHT
package instruction	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	50.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.1 mm
method of packing	BULK
peak wavelength	505 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3.5 mm
perspective	120 deg
Base Number Matches	1

# $

% '() ) '()

../. %

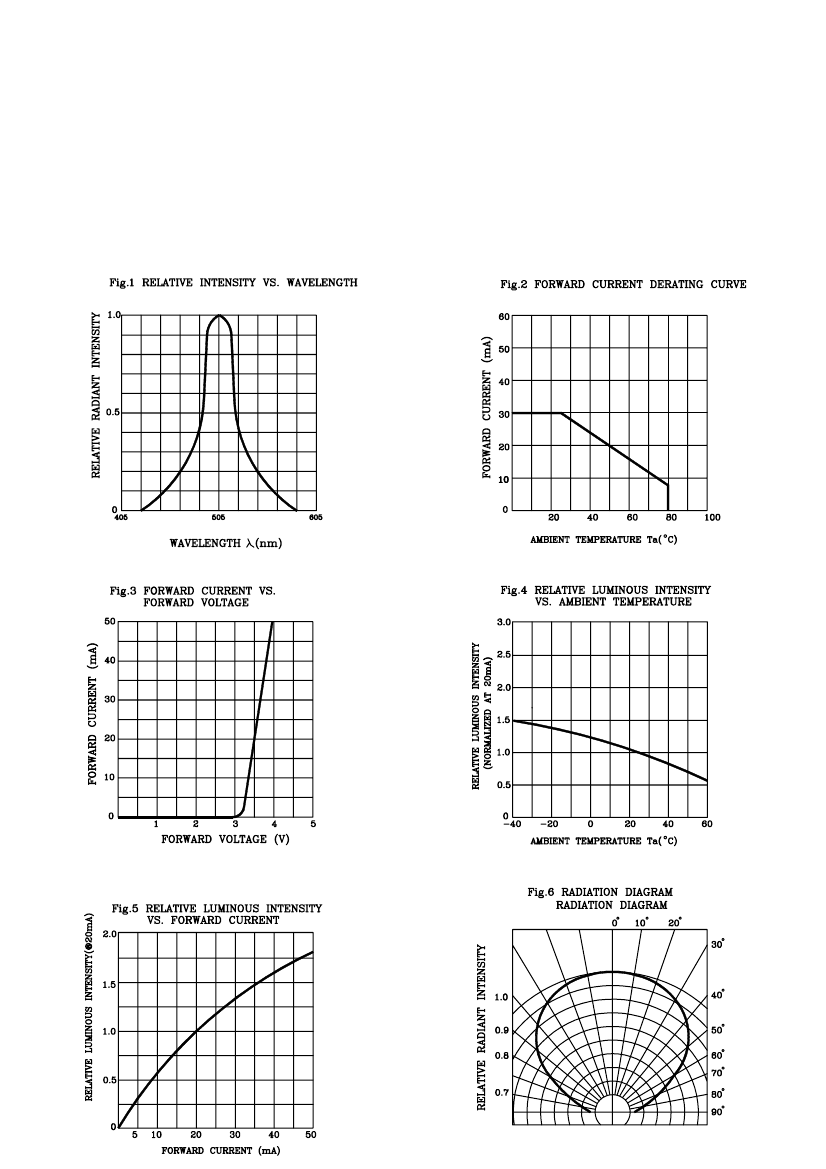

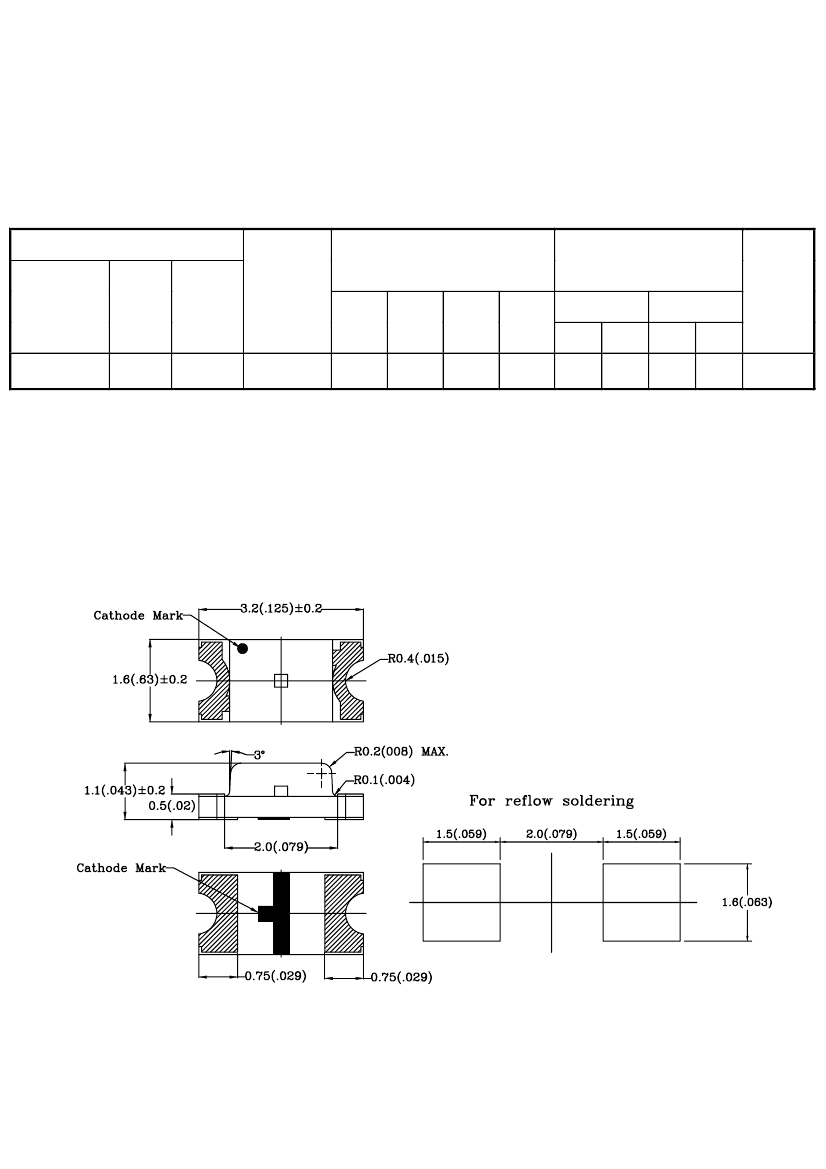

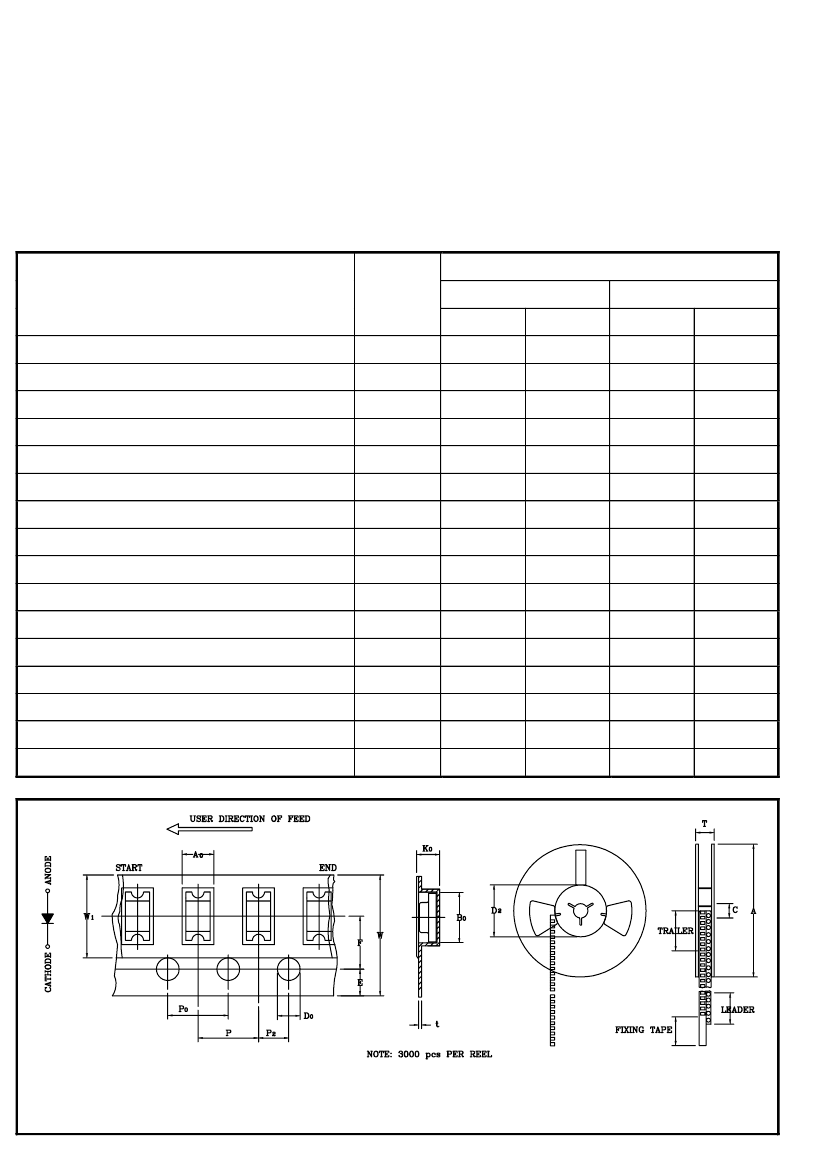

0).

2) .)

$ *

(

()

453&6'7

6' 8-5'9.

:::::::::::::::))::::::::::::):)):::::::::):.

9. :::::::::::::::::)::::::::::::::))

:::::::::::::::::)):::):::::))::.

::::::::::::::::::::::::)):0

#<-

85 385

! "#$

&' (

)

	BL-HGX33-B02	BL-HGX33-B02-TRB
Description	Single Color LED, Green, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2	Single Color LED, Green, Water Clear, 2mm, SURFACE MOUNT PACKAGE-2
Maker	BRIGHT	BRIGHT
package instruction	SURFACE MOUNT PACKAGE-2	SURFACE MOUNT PACKAGE-2
Reach Compliance Code	unknown	unknown
color	GREEN	GREEN
Configuration	SINGLE	SINGLE
Maximum forward current	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	50.0 mcd	50.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	80 °C	80 °C
Minimum operating temperature	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.1 mm	1.1 mm
method of packing	BULK	TAPE AND REEL
peak wavelength	505 nm	505 nm
shape	RECTANGULAR	RECTANGULAR
size	2 mm	2 mm
surface mount	YES	YES
Terminal pitch	3.5 mm	3.5 mm
perspective	120 deg	120 deg
Base Number Matches	1	1
