PS-26PLB-D4LT1-FL1E datasheet, PDF

Datasheet> All Categories > The connector> PS-26PLB-D4LT1-FL1E

PS-26PLB-D4LT1-FL1E: DescriptionHeaders u0026 Wire Housings HEADER 26POS; CategoryThe connector; File Size280KB，2 Pages; ManufacturerJAE; Websitehttp://www.jae.com

Download Datasheet Parametric View All

PS-26PLB-D4LT1-FL1E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PS-26PLB-D4LT1-FL1E	-	-	View	Buy Now

PS-26PLB-D4LT1-FL1E Overview

Headers u0026 Wire Housings HEADER 26POS

PS-26PLB-D4LT1-FL1E Parametric

Parameter Name	Attribute value
Product Category	Headers & Wire Housings
Manufacturer	JAE
RoHS	Details
Factory Pack Quantity	1

Preview

Download Datasheet

View All

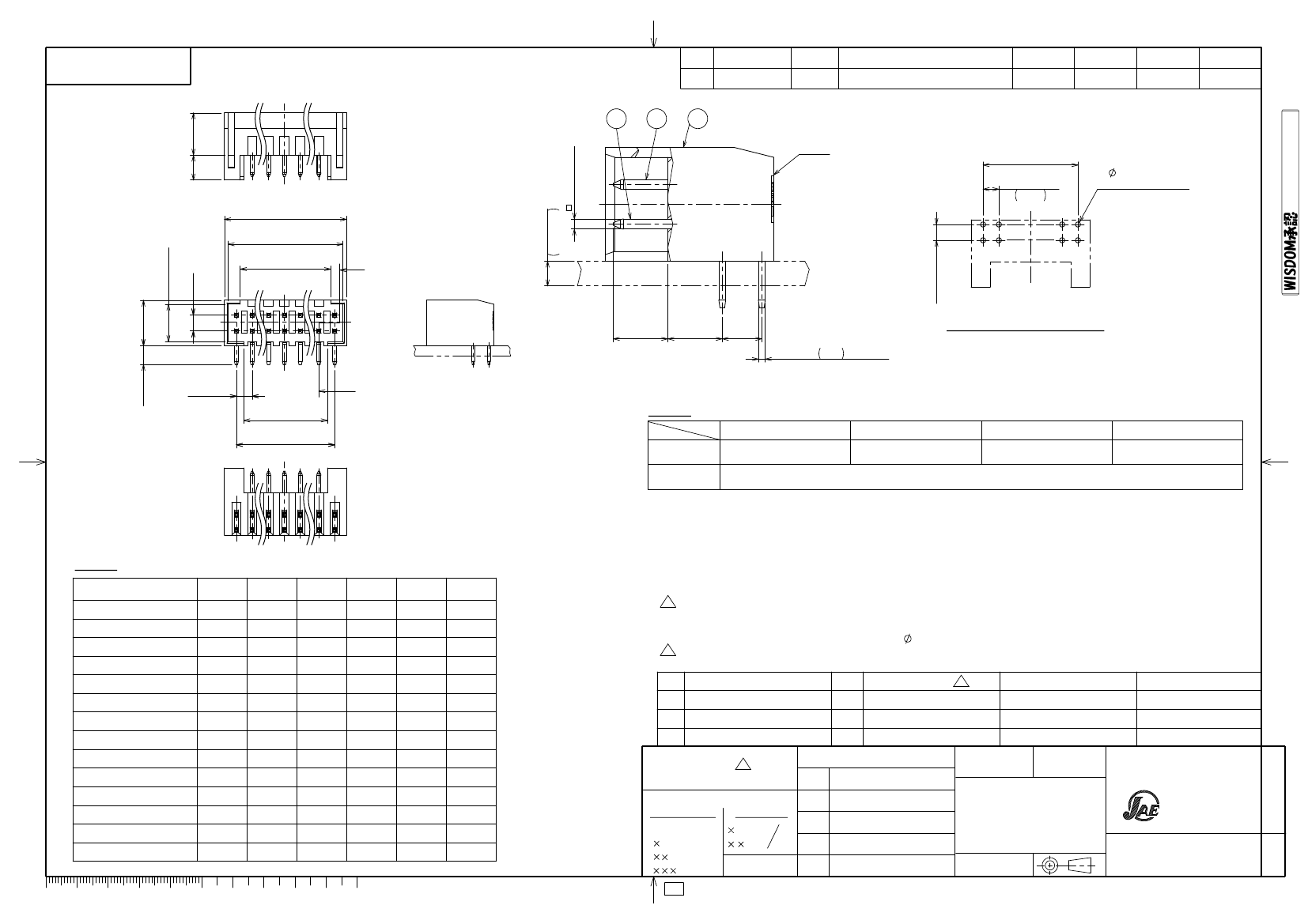

版数

VER.

年月日

D A T E

20/JUN/2017

CN NO.

021757

　　　　　　　　変更内容

　　　　　　　　DESCRIPTION

MATERIAL CHANGE

½　図

DR.

―

担　½

CHK.

K.NAKAZAWA

査　閲

APPD.

―

承　認

APPD.

T.KUDOU

0.64

±0.05

NOTE1

±0.1

2.54

±0.08

PITCH

0.8

(AFTER PLATING)

+0.2

+0.3

t1.6

P.C BORD

±0.3

6.05

2.54

+0.3

7.3

2.54

±0.08

3.5

±0.3

3.5

2.54

0.44

(TERMINAL AREA NOTE2)

(端子部、注2)

P.C.B. HOLE PATTERNS(REF.)

基板取付穴寸法(参考)

±0.3

2.54

(PITCH)

±0.2

A-A

(2 : 1)

TABLE 2

AREA

FINISH

GOLD(0.1μm MIN）OVER NICKEL

Ni上Au0.1μm以上

CONTACT AREA

接触部

TERMINAL AREA

端子部

GOLD(0.3μm MIN）OVER NICKEL GOLD(0.76μm MIN）OVER NICKEL GOLD(0.5μm MIN）OVER NICKEL

Ni上Au0.3μm以上

Ni上Au0.76μm以上

Ni上Au0.5μm以上

(LEAD FREE)TIN/TIN ALLOY OVER NICKEL

Ni上錫又は錫合金（無鉛）

TABLE 1

PART NO.

PS- 4PLB-D4LT1-FL※E

PS- 6PLB-D4LT1-FL※E

PS- 8PLB-D4LT1-FL※E

PS-10PLB-D4LT1-FL※E

PS-12PLB-D4LT1-FL※E

PS-14PLB-D4LT1-FL※E

PS-16PLB-D4LT1-FL※E

PS-18PLB-D4LT1-FL※E

PS-20PLB-D4LT1-FL※E

PS-22PLB-D4LT1-FL※E

DCF-C-212H(12.08)

NO. OF

CONTACTS

2.54

5.08

7.62

10.16

12.7

15.24

17.78

20.32

22.86

25.4

27.94

30.48

33.02

35.56

2.72

5.26

7.8

10.34

12.83

15.42

17.96

20.5

23.04

25.58

28.12

30.66

33.2

1.28

3.82

6.36

8.9

11.44

13.98

16.52

19.06

21.6

24.14

26.68

29.22

31.76

34.3

5.18

7.72

10.26

12.8

15.34

17.88

20.42

22.96

25.5

28.04

30.58

33.12

35.65

38.2

6.38

8.92

11.46

16.54

19.08

21.62

24.16

26.7

29.24

31.78

34.32

36.86

39.4

NOTE1.ENGRAVE THE COMPANY LOGO, THE NUMBER OF CONTACTS, AND TOOLING NUMBER

AT THE PLACE SHOWN IN THE DRAWING.

2.THE FOUR CORNERS OF TERMINAL AREA SHALL BE BASHED TO BE INSERTED INTO

THE HOLE OF 0.7㎜ DIAMETER.

3.(DELETED NOTE AT VERSION 2)

注1．図示の½½に社標、芯数及び金型NO.を浮き出す。

2．結線部は0.64×0.44を四隅面打ちし、 0.7に挿入できる。

3．(2版にて削除)

符号

NO.

INSULATOR

UPPER POST

LOWER POST

名　　　称

DESCRIPTION

SEE

TABLE 1

SEE

TABLE 1

個　数

QTY.

15%GF 6-6Ny V-0

COPPER ALLOY

材　　料

MATERIAL

―

SEE TABLE2

仕　上

FINISH

COLOR：BLACK

―

備　　考

REMARKS

仕様書(SPECIFICATION)

第1版(ORIGINAL DATE)

½図

DR.

JACS-1209(-500)

27/DEC/2004

尺度(SCALE)

H.SAKURADA

N.UCHIYAMA

Y.YAHIRO

K.HISATOMI

名称(TITLE)

PS-26PLB-D4LT1-FL※E

PS-28PLB-D4LT1-FL※E

PS-30PLB-D4LT1-FL※E

寸法(DIMENSION)

．

0.8

0.4

0.1

角度(ANGLES)

PS-※PLB-D4LT1-FL※E

ANGLE PIN HEADER

質量(MASS)

INDUSTRY,LTD.

図面番号(DRAWING NO.)

’

単½(UNIT)：㎜

承認

APPD.

版数

(VER.)

―

SJ101483

100

S/W

SIZE

PS-24PLB-D4LT1-FL※E

一般公差(GENERAL TOLERANCE)

担½

CHK.

査閲

APPD.

JAPAN AVIATION

Reference Only

ELECTRONICS

JAE-CONNECTOR.COM

シリーズ(SERIES)

2:1

日本航空電子工業株式会社

2017/06/22

6.8

図面番号(DRAWING NO.)

SJ101483
