ROHS COMPLIANT

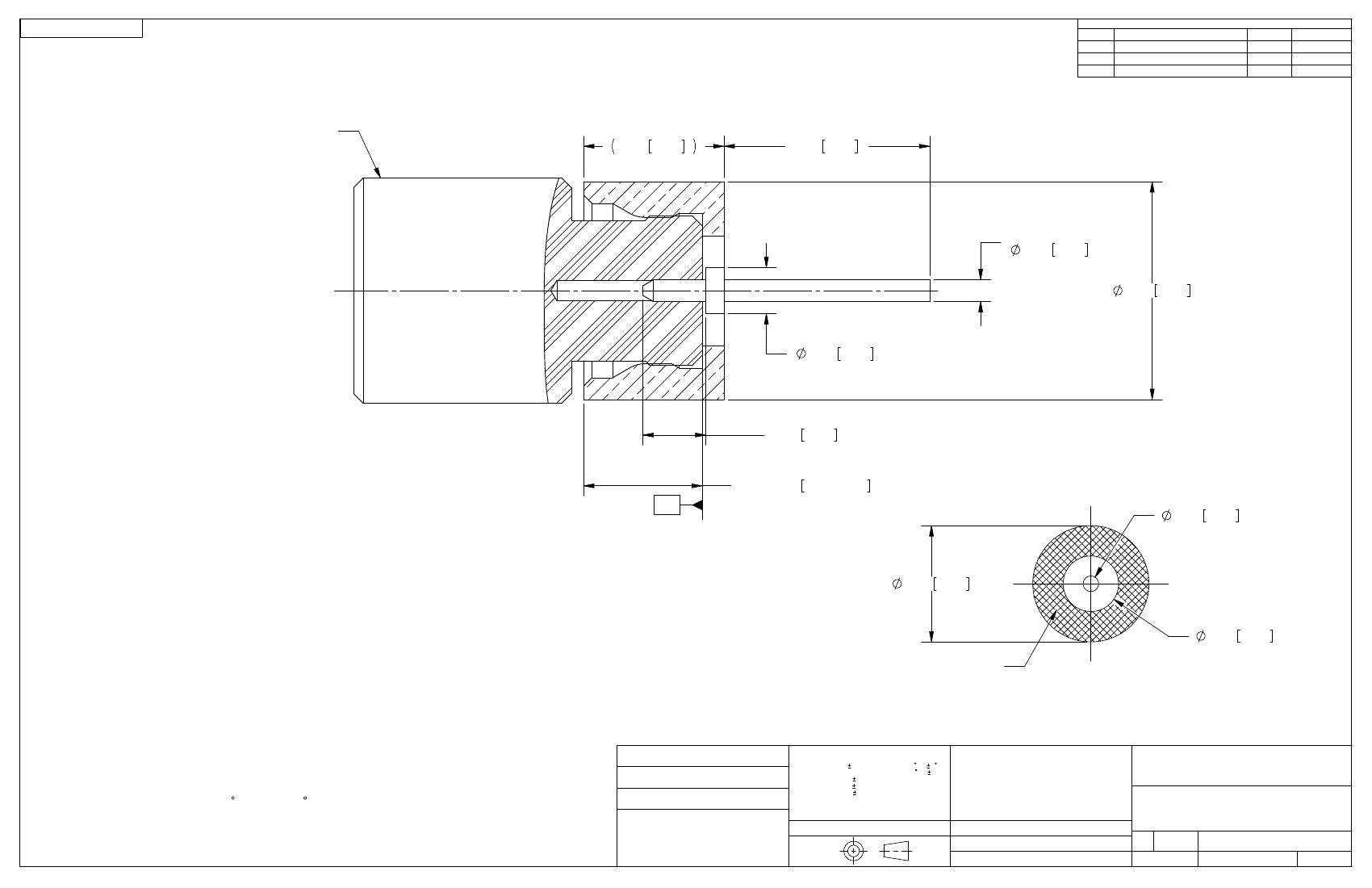

PRODUCT DATA DRAWING
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 38507
08/11
STW
ALIGNMENT PLUG
DISCARD AFTER INSTALLATION
.058 1.47
.085 2.16
2X
.009 0.23
.090 2.29
.019 0.48
NOTES:
1. FOR RECOMMENDED FOOTPRINT TO YOUR SPECIFIC PCB,
CONTACT SV MICROWAVE SALES DEPARTMENT
(sales@svmicro.com, 561-840-1800).
RP
.026 0.66
.049±.001 1.24±0.03
.012 0.30 THRU
MATERIAL:
BODY & CONTACT:
ALIGNMENT PLUG:
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04.
PTFE PER ASTM D1710
.090 2.29
.043 1.09
SOLDER AREA
FINISH:
BODY & CONTACT:
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
MATERIAL:
FINISH:
RECOMMENDED PCB LAYOUT
PERFORMANCE:
IMPEDANCE:
OPERATING TEMP.:
ENGAGEMENT:
DISENGAGEMENT:
50 OHMS.
-55 C TO +125 C.
3.5 LBS TYPICAL.
2.0 LBS TYPICAL.
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
SMPS FD MALE
SURFACE MOUNT
95077
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
FSG 08/29/11
STW 08/29/11
STW 08/29/11
SIZE CAGE CODE DWG. NO.
B
3811-40006
SHEET 1 OF 1
SCALE: 30:1
