RR-HR
D-Sub connectors - Stamped and Formed Contacts
REAR RELEASE
CRIMP CONNECTORS
D R PTI O
ESC I
N
Specifications
C AR TER STI C
H AC I
S
• Connectors according to MIL C24308
Materials and Platings
Shells
Insulator
Boardlock
Tinned
steel with or without dimples
on plug connector
Black glass-filled thermoplastic, UL 94V-0
Brass, 3µm to 5µm (118µ" to 197µ")
tin over nickel 2µm to 3µm
(78µ" to
118µ")
Brass, 6µm to 10µm (236µ" to 394µ")
tin over nickel 2µm to 3µm
(78µ" to
118µ")
Under plating
2µm (78µ") nickel
2µm (78µ") nickel
2µm (78µ") nickel
Crimp side
gold flash or tin
gold flash or tin
gold flash or tin

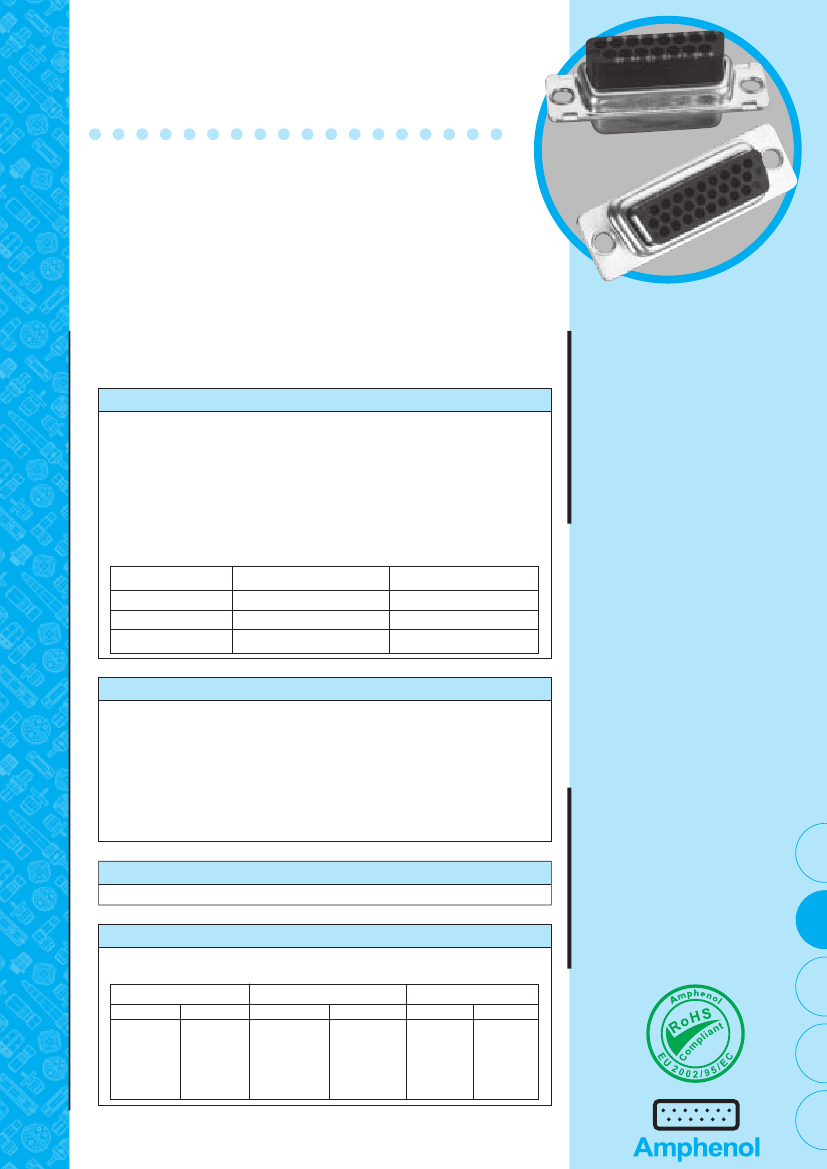

Designed for high volume
production, Amphenol's rear
release crimp connector and
contacts provide significant cost
saving.
- EMI / RFI shell configuration.
- Removable, reusable contacts.
- Automatic and manual tooling
available.
Screwlock
Contacts-Brass
0.2µm (8µ") gold
0.
5
µm (20µ") gold
0.76µm (30µ") gold
Electrical Data
Current rating
Voltage rating
Withstanding voltage
Insulation resistance
Contact resistance
Wire size
5A
500V AC/rms 50Hz
RR:
1000V AC/rms 50Hz for 1 minute
HR:
1000V AC/rms 60Hz for 1 minute
RR:
5000MΩ
HR:
1000MΩ
10mΩ max
20-28
AWG
max insulation
Ø1.27mm (.05")
Simplify
your cable
assemblies
APPLI C O S
ATI N
•
Commercial
•
Industrial
•
Telecom
•
Any industry standard
I / O connections
Climatic Data
Operating temperature
-55°C to +125°C
Mechanical Data
Mating and unmating force
Unit: kg ( lb)
No. of Cts
RR
9 (size E)
15 (size A)
25 (size B)
37 (size C)
50 (size D)
HR
15 (size E)
26 (size A)
44 (size B)
62 (size C)
78 (size D)
Mate (max)
RR
HR
3.05 (6.74) 3.81 (8.42)
5.09 (11.24) 5.95 (13.16)
8.44 (18.66) 9.26 (20.46)
12.51 (27.65) 13.48 (29.78)
14.65 (32.38) 15.82 (34.96)
Unmate (min)
RR
0.36 (0.79)
0.46 (1.01)
0.81 (1.8)
1.1 (2.47)
1.6 (3.56)
HR
0.52 (1.14)
1.05 (2.32)
1.37 (3.02)
1.76 (3.88)
2.02 (4.46)
RR-HR / E11
