801-99-050-10-004000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 801-99-050-10-004000

801-99-050-10-004000: DescriptionHeaders u0026 Wire Housings 50PIN SINGLE ROW SKT; CategoryThe connector The connector; File Size406KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

801-99-050-10-004000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	801-99-050-10-004000	-	-	View	Buy Now

801-99-050-10-004000 Overview

Headers u0026 Wire Housings 50PIN SINGLE ROW SKT

801-99-050-10-004000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	unknown
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (100)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	801
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

INTERCONNECTS

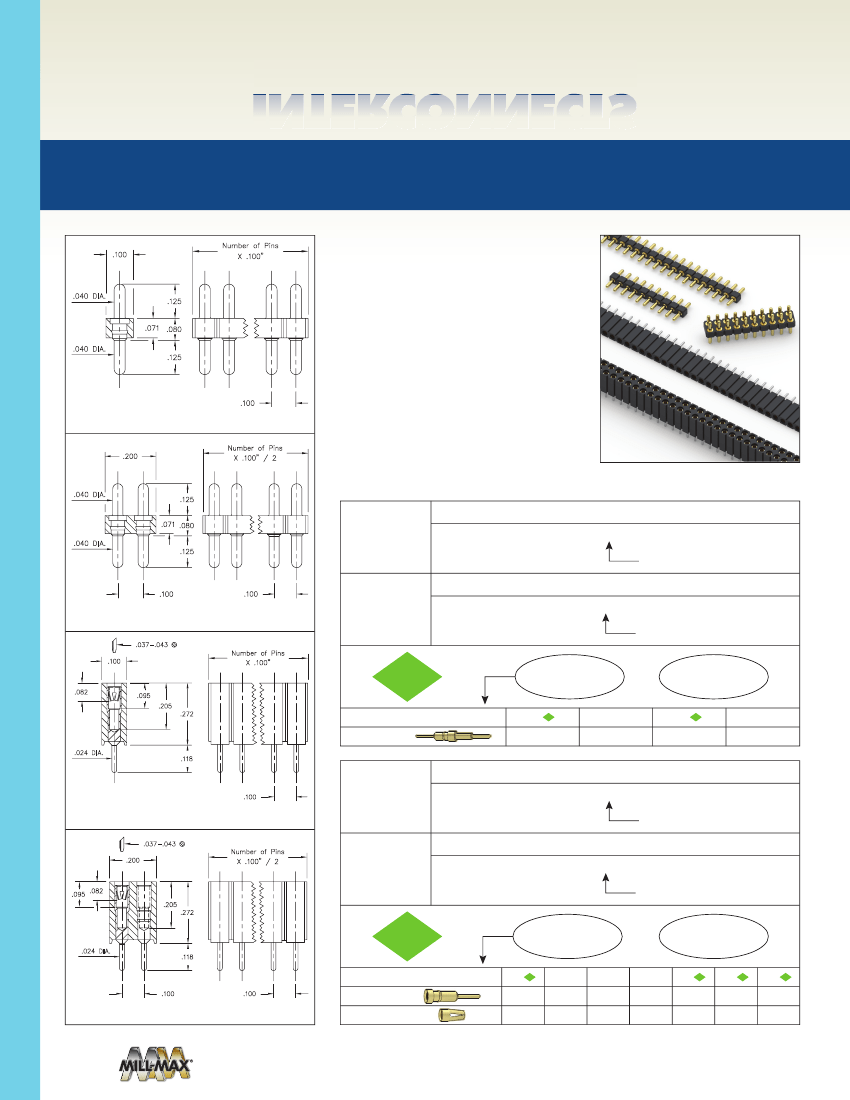

SERIES 800, 801, 802, 803 • .100” GRID (.040” DIA. PINS),

HEADERS AND SOCKETS • SINGLE AND DOUBLE ROW STRIPS

Number of Pins

.100

X .100"

•

Series 800 and 802 single and double row

.040 DIA.

interconnects feature sturdy .040” dia. leads

(MM #3077) and low pro le (.071” thick)

insulator. See page 215 for details

sockets use MM #1313 receptacles. See page

181 for details

6- nger BeCu #18 contact rated at 8 amps.

Receptacles accept .037”-.043” diameter pins.

See page 257 for details

suitable for all soldering operations

.125

•

Series 801 and 803 single and double row

•

Series 801 and 803 receptacles use Hi-Rel,

.100

.071

.040 DIA.

.080

.125

FIG. 1

.200

•

Insulators are high temperature thermoplastic,

Number of Pins

X .100" / 2

.040 DIA.

.125

.071 .080

ORDERING INFORMATION

Series 800...10-004

Single Row Pin Header

01-50

.040 DIA.

.125

FIG. 1

.100

800 XX 0_ _ 10 004000

Specify number of pins

.100

Series 802...10-004

Double Row Pin Header

004-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

.037-.043

FIG. 2

RoHS - 2

802 XX _ _ _ 10 004000

Specify number of pins

Number of Pins

.100

X .100"

2011/65/EU

.082

.095

.205

.272

XX=Plating Code

See Below

µ”

SPECIFY PLATING CODE XX=

Pin Plating

200

µ”

Sn/Pb

200

µ”

.024 DIA.

.118

Series 801...10-004

.100

Single Row Socket

01-50

FIG. 3

.037-.043

.200

FIG. 3

801 XX 0_ _ 10 004000

Specify number of pins

Number of Pins

X .100" / 2

Series 803...10-004

Double Row Socket

004-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

PAGE 62 | INTERCONNECTS

FIG. 4

RoHS - 2

803 XX _ _ _ 10 004000

Specify number of pins

.095

.082

.205

.272

2011/65/EU

.024 DIA.

.118

XX=Plating Code

See Below

µ”

SPECIFY PLATING CODE XX=

.100

µ”

200

µ”

200

µ”

100

µ”

FIG. 4

Sleeve (Pin)

Contact (Clip)

µ”

200

µ”

Sn/Pb 200

µ”

Sn/Pb 200

µ”

Sn/Pb

200

µ”

100

µ”

Sn/Pb

µ”

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

801-99-050-10-004000 Related Products

	801-99-050-10-004000	801-93-036-10-004000	801-99-036-10-004000	802-90-100-10-004000	803-43-072-10-004000
Description	Headers u0026 Wire Housings 50PIN SINGLE ROW SKT	Headers u0026 Wire Housings 36PIN SINGLE ROW SKT	Headers u0026 Wire Housings 36PIN SINGLE ROW SKT	Headers u0026 Wire Housings 100P DOUBLE ROW PIN HEADER	Headers u0026 Wire Housings 72PIN DOUBLE ROW SKT
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Lead free
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	conform to
Reach Compliance Code	unknown	unknown	unknown	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (100)	GOLD (30) OVER NICKEL (100)	TIN LEAD (100)	TIN LEAD (200) OVER NICKEL (150)	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	TIN LEAD (200) OVER NICKEL (150)	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	MALE	FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	NOT SPECIFIED	BERYLLIUM COPPER
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
JESD-609 code	e0	e0	e0	e0	e3
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	50	36	36	100	72
Maker	Mill-Max	Mill-Max	Mill-Max	Mill-Max	-
Body/casing type	SOCKET	SOCKET	SOCKET	-	SOCKET
Manufacturer's serial number	801	801	801	802	-
UL Flammability Code	94V-0	94V-0	-	94V-0	94V-0
ECCN code	-	EAR99	EAR99	EAR99	EAR99
