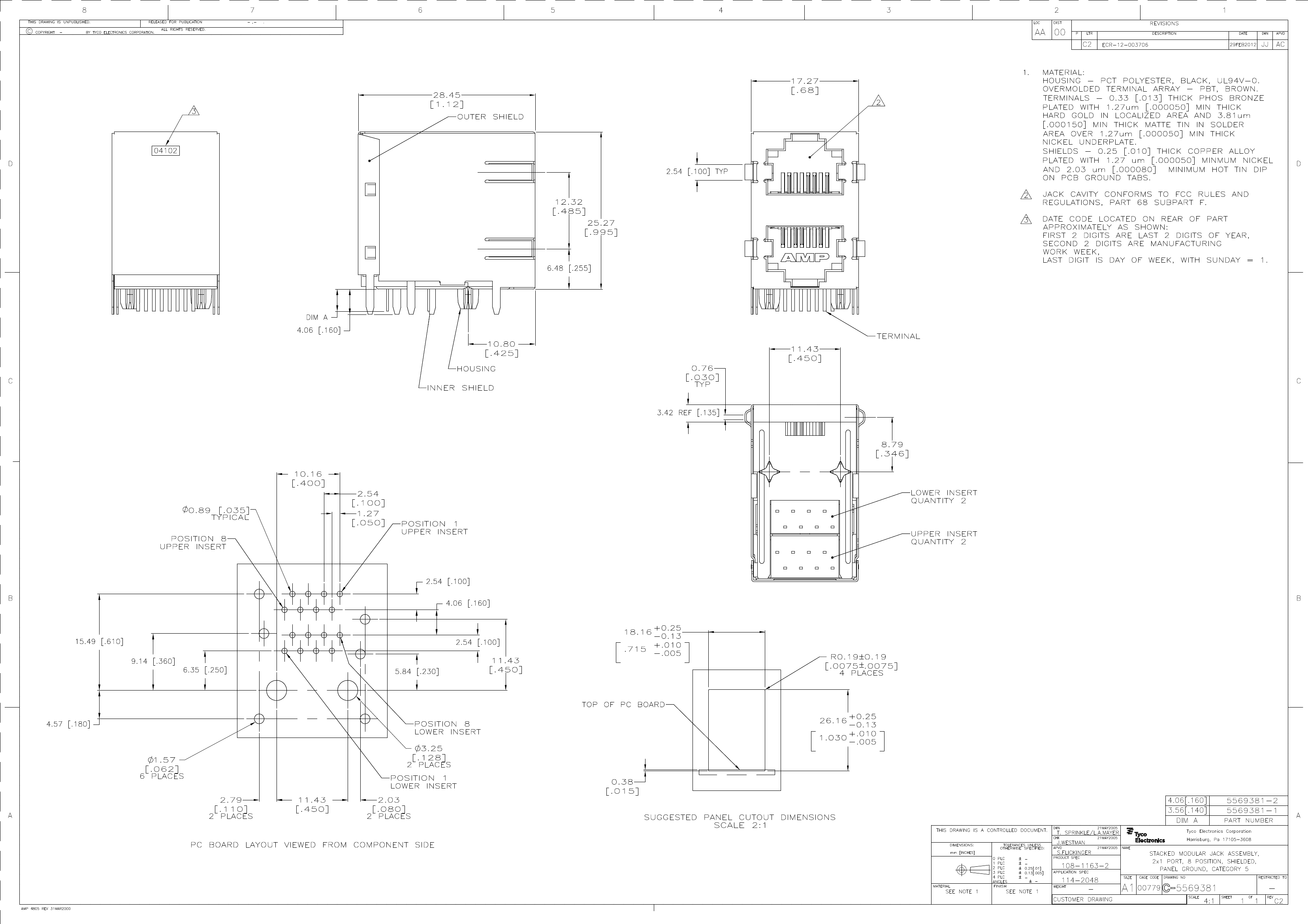

STK MJ ASSY,8POS,2X1,SHLD,CAT5
| Parameter Name | Attribute value |
| Modular socket and plug interface types | RJ45 |
| Modular socket and plug products | RJ type sockets and plugs |
| Connector type | socket |
| Grounding options | PCB and panel grounding |
| Connectors and terminals terminate to | A printed circuit board |
| Connector and connector component types | Connector |
| keying | no |
| Port configuration | multiple ports |
| Port matrix configuration | 2 x 1 |
| Connector terminal density | standard |
| Multi-port configuration | stack |
| Status Indicator | none |
| Number of Positions | 8 |
| Number of loading locations | 8 |
| PCB mounting direction | right angle |
| PCB ground lug quantity | 6 |
| shielding material | copper alloy |
| Shield plating materials | Tinned copper |
| Modular socket pin orientation | Standard - Lower Latch |
| shape | Low |
| Ground plate plating material | Tinned copper |
| PCB terminal termination area plating materials | tin |
| Terminal base material | nickel |
| Contact Current Rating (Max) (A) | .2, 1.5 |
| Terminal contact plating material | gold |
| Terminal base material | Phosphor bronze |
| Thickness of plating material in terminal bonding area | 1.27 µm [ 50 µin ] |
| Connector product type | Connector components |
| PCB Termination Methods | Through Hole - Solder |
| Panel mount features | Without |
| Connector mounting type | Panel, board mounting |
| access location | side |
| Centerline (Pitch) | 1.02 mm [ .04 in ] |
| Shell color | black |
| Shell material | PCT polyester |
| PCB thickness (recommended) | 1.57 mm [ .062 in ] |
| PCB tail length | 4.06 mm [ .16 in ] |
| Connector height | 25.27 mm [ .994 in ] |
| Working group temperature range | -40 – 85 °C [ -40 – 185 °F ] |
| shield | yes |
| Circuit Application | Signal |
| UL flame retardant rating | UL 94V-0 |
| performance category | Category 5 |
| Package quantity | 45 |
| Encapsulation method | Tray |
