44150-0004: CategoryThe connector The connector; File Size28KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

44150-0004 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	44150-0004	-	-	View	Buy Now

44150-0004 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
Other features	8 PORT, 8-POSITION EACH
Board mount options	PEG
body width	0.505 inch
subject depth	0.828 inch
body length	4.5 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
MIL compliance	NO
Manufacturer's serial number	44150
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of ports	8
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell material	GLASS FILLED POLYAMIDE
Terminal length	0.142 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

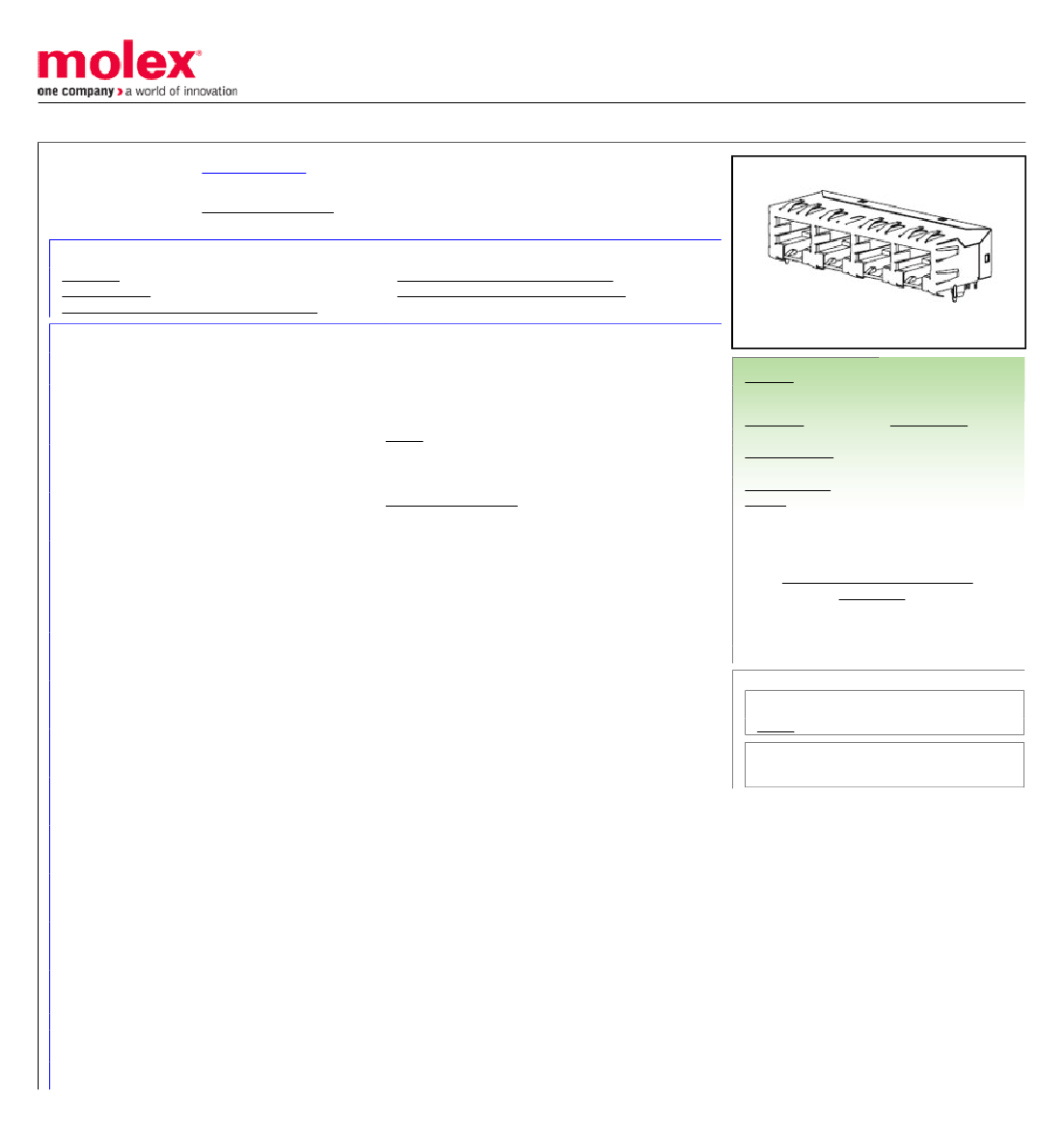

This document was generated on 06/22/2015

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0441500004

Active

Modular Plugs - Jacks

Modular Jack, Right Angle, Low Profile, 8/8, 8 Ports

Documents:

3D Model

Drawing (PDF)

Product Specification PS-44050-003 (PDF)

Agency Certification

CSA

UL

General

Product Family

Series

Comments

Component Type

Magnetic

Overview

Performance Category

Power over Ethernet (PoE)

Product Name

UPC

Physical

Color - Resin

Durability (mating cycles max)

Flammability

Inverted / Top Latch

Jack Height

Lightpipes/LEDs

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Orientation

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Ports

Positions / Loaded Contacts

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Shielded

Voltage - Maximum

Solder Process Data

Test Summary TS-44050-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E107635

Modular Jacks/Plugs

44150

External Shield

PCB Jack

No

Modular Plugs - Jacks

5, 5e

N/A

RJ45

800754812627

Black

500

94V-0

No

12.83mm

None

Phosphor Bronze

Gold

Tin

Nylon

Right Angle (Side Entry)

Yes

1.60mm

Tray

1.02mm

1.27mm

1.270µm

2.540µm

8

8/8

No

-40°C to +80°C

Through Hole

N/A

1.5A

No

125V

EU ELV

Not Relevant

EU RoHS

China RoHS

Not Reviewed

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Not Reviewed

Not Relevant

Search Parts in this Series

44150 Series

Mates With

FCC 68 Plugs
