Barrier Strip
Filtered Terminal Blocks

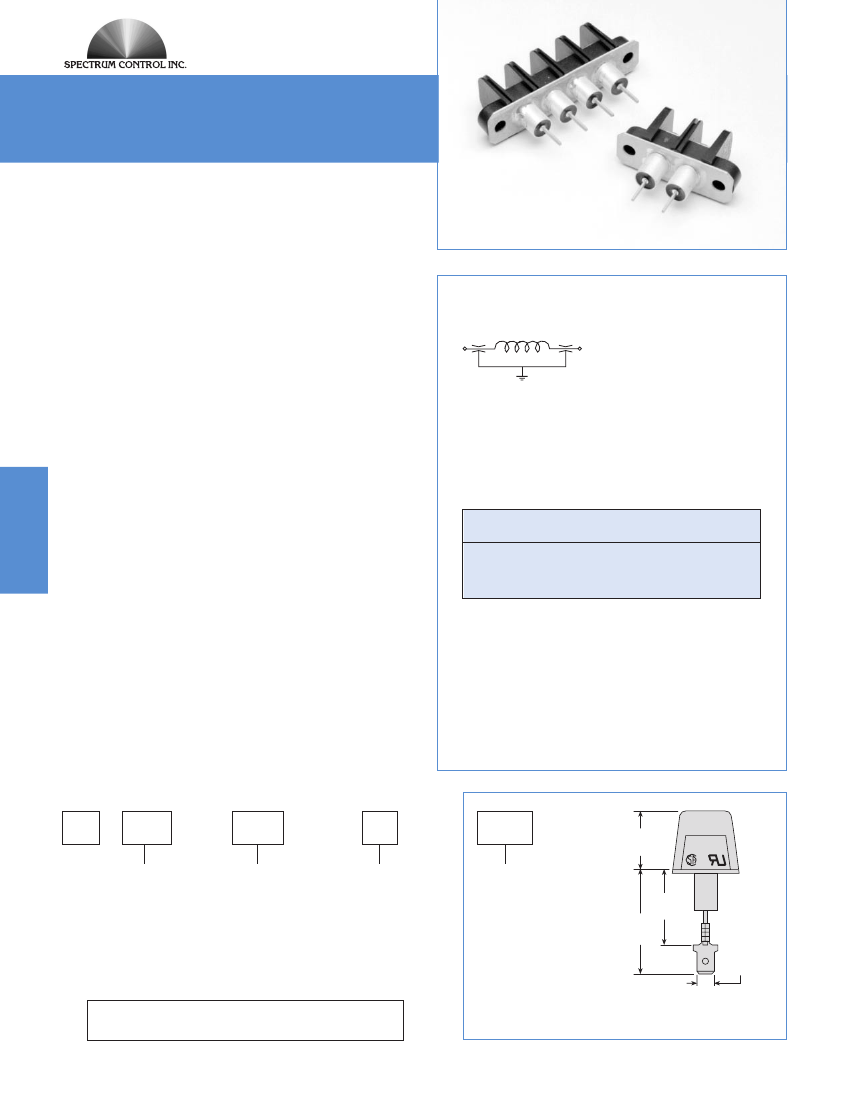

The barrier strip filtered terminal block is designed
provide excellent EMI/RFI filtering of AC and DC
power lines and control lines. This terminal block is
available in various sizes, with terminal for soldering
or spade lugs. Application examples include filtering
power supplies in telecommunications equipment,
metering, industrial controls, instrumentation and
EDP equipment.
Specifications
ELECTRICAL
Pi Filter
Features
I
I
I
I
I
I
I
I
Filtered Arrays
UL recognized and CSA approved for DC voltages
E133076, UL 1059
LR92537, CSA STD 22.2 N°158-1987 and ECN584B
Filter element provides high insertion loss
for EMI/RFI filtering of AC and DC power and
control lines
Rugged construction provides protection to filtering
element; especially useful for repeated changes in
wiring or field connections
2 to 6 terminals available (combine if larger number
of terminals needed)
Cost-effective solution for industrial interconnection
EMI filtering problems
Termination options available: straight lead,
male or female disconnects, pigtail (12 AWG =
0.081" (2.05mm); 22 AWG = 0.025" (0.64mm)
Operating temperature:
Working voltage:
Capacitance:
Dielectric
withstanding voltage:
Current rating:
D.C. resistance:
-55° C to 105° C
100VDC
2,500 pF to 5,200 pF
1700VDC
20A
.01 ohms max.
Typical Insertion Loss — dB:
In 50 Ohm Circuit
30 MHz……22
300 MHz……70
50 MHz……32
500 MHz……75
100 MHz……48
1000 MHz……75
MECHANICAL
Center spacing:
Wire size:
Screw size:
Molded material:
.438" (11.1 mm)
AWG #12 max for 20A
20A - #6-32, zinc-plated
philslot screws
Black, UL rated 94VO
thermoplastic
9 in.-lbs. max.
Brass, tin-plated
Ordering Information
Example:
52-160-006-A AOO
The part number shown represents a barrier strip terminal block
with six terminals and rated for 20 Amps. Male disconnects
(.250") are the method of termination.
Tightening torque:
Terminal:
52 – 160
–
006
Number
of Terminals
002
- 2 terminals
through
006
- 6 terminals
–
A
–
AOO
Special
Terminations
Code
Note: Leave blank if ordering
standard product.
Male quick disconnects
directly on terminal block.
AO1
. . . . . . .187 (4.8)
AOO
. . . . . .250 (6.4)

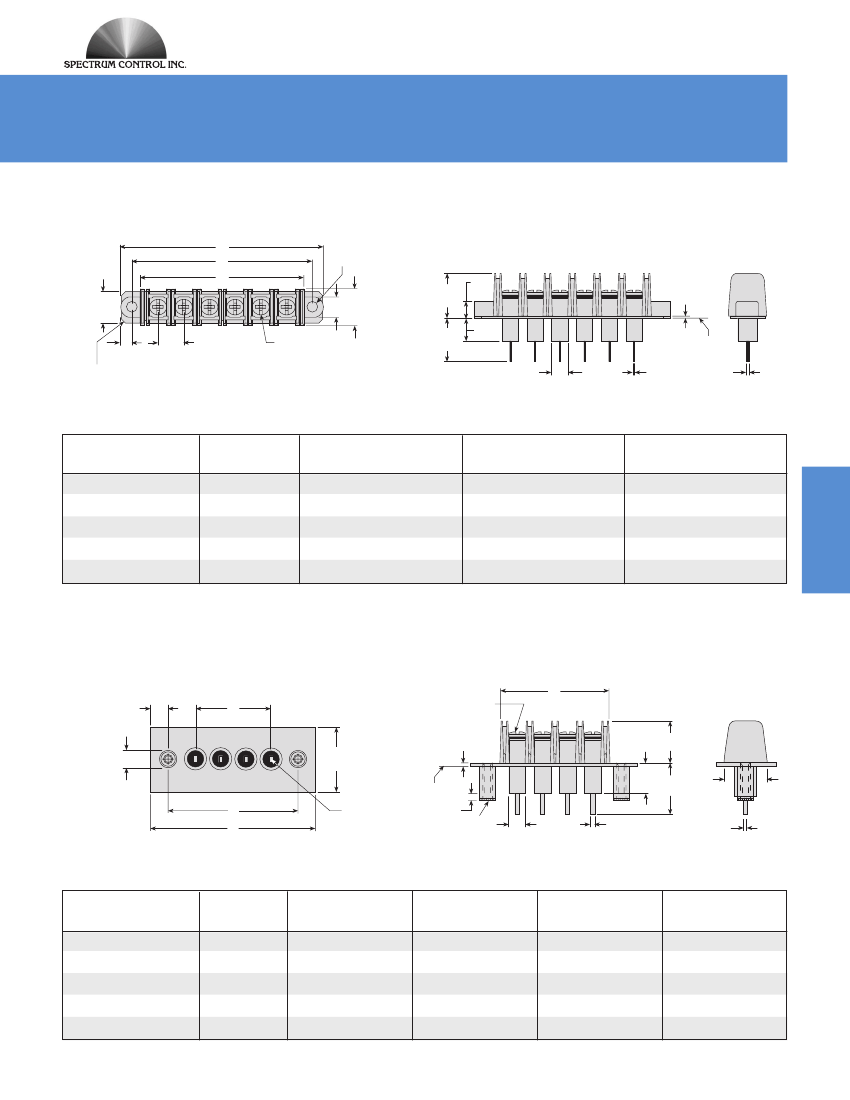

.758
(19.3)
®
Barrier Strip
Terminal Block
160
- Front panel mount
188
- Rear panel mount
Current
Rating
A
- 20 Amps
.820
(20.9)
1.30
(33.1)
MAX.
TYPICAL
.187
(4.8)-AO1
.250
(6.4)-AOO
.032
(.8)
THK.
FOR BOTH
For instructions on soldering to filter terminals, please refer to
page 105 in filter plate section.
For product with AC rating, consult factory for 52-257-Series
product and request data sheet. Product UL/CSA recognized.
Dimensions in inches
(mm)
For custom designs see page 124
and consult with factory.
