for M29504/04 or /05 Termini
Feedthrough probe connectors for MIL-DTL-38999 (MIL-PRF-29504/4 and /5 termini)
fiber optic connection system
U.S. PATENT 5,960,137
Product Series
Finish Symbol
C
= Black Anodize
M
= Electroless Nickel
180
-
049
C
049
= Probe-to-Pin connector
050
= Probe-to-Socket connector
043
= Probe-to-Probe connector

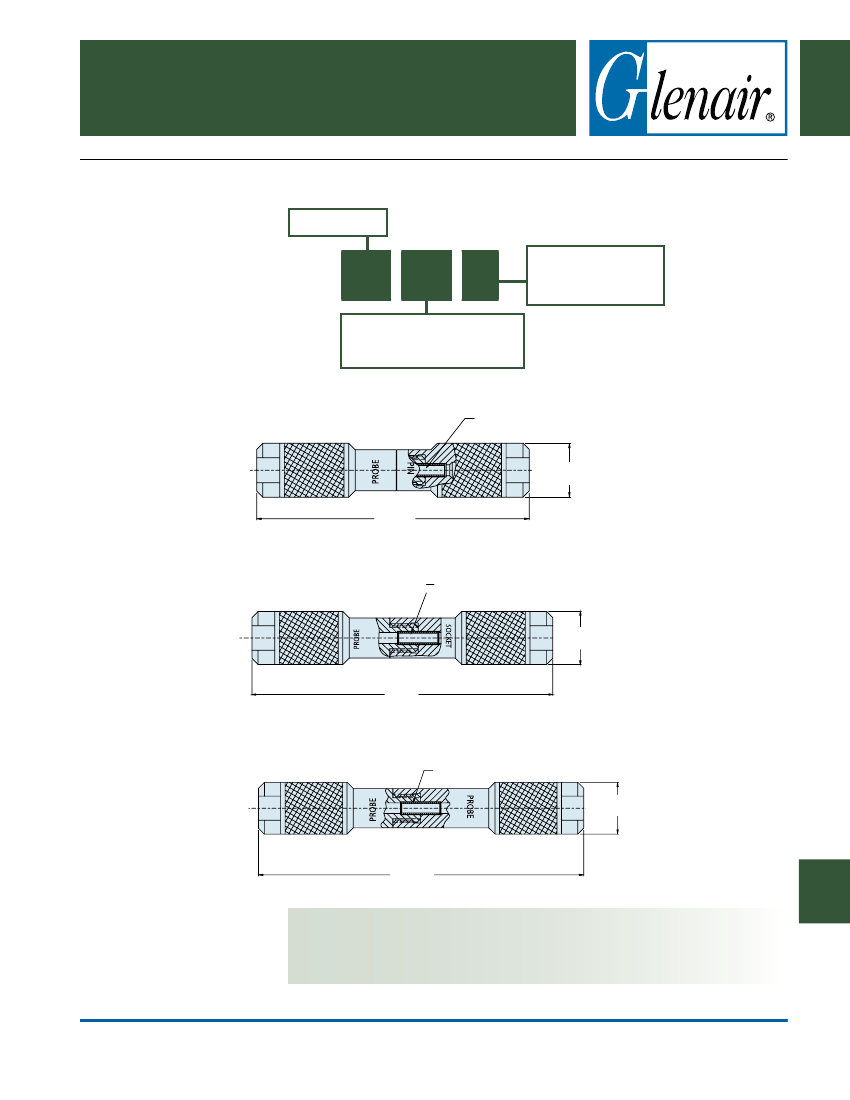

Alignment Sleeve
-049 Probe-to-Pin
Connector
1.80 (45.7)
Max
Ø .350 (8.9)
Max
Pin Side Accepts
181-002 and M29504/04
Termini
Alignment Sleeve
-050 Probe-to-Socket
Connector
2.20 (55.9)
Max
Ø .350 (8.9)
Max
Socket Side Accepts
181-001 and M29504/05
Termini
Alignment Sleeve
-043 Probe-to-Probe
Connector
Ø .350 (8.9)
Max
2.250 (57.2)
Max
Material and Finish
Housing: Aluminum Alloy/see Part Number Development
Alignment Sleeve: Zirconia Ceramic
Retaining Clips: Copper Alloy
