5mm Pitch Miniature Potting Connector for Secondary Power Supply
DF5 Series
■Features
1. Potting Product

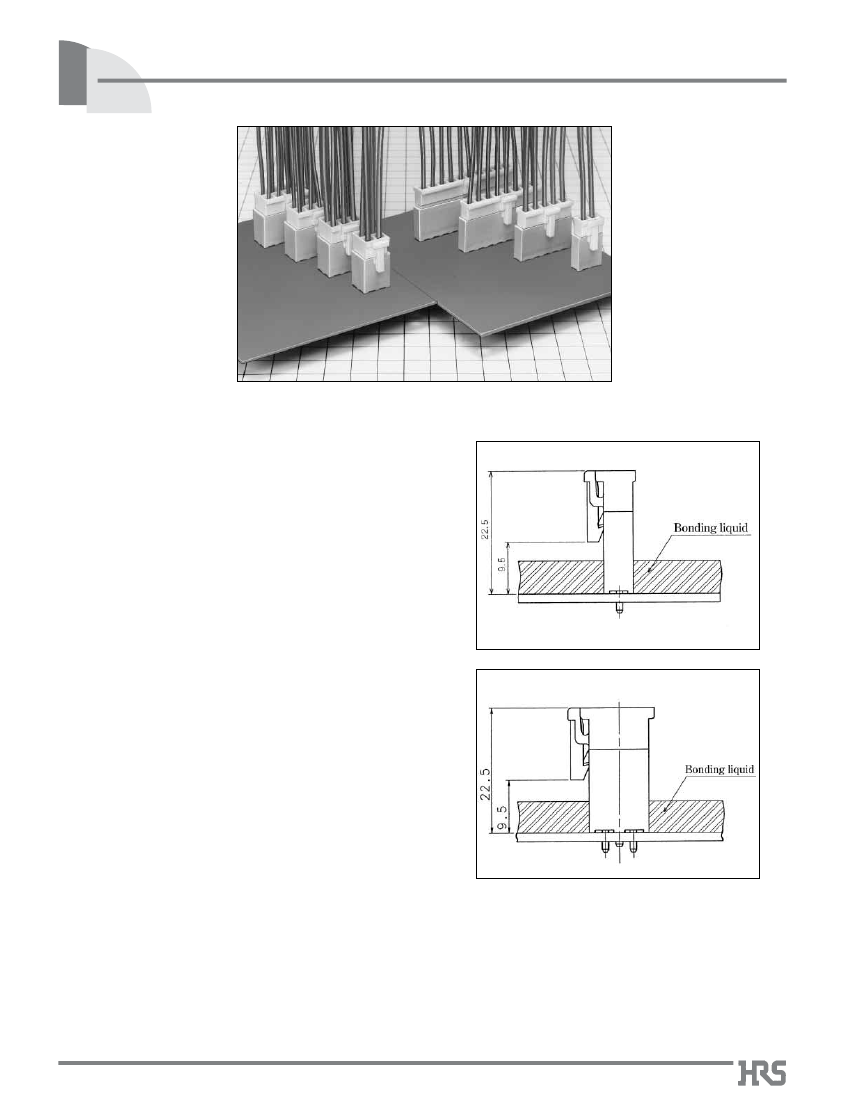

This connector is capable of potting 9mm maximum, and
22.5mm mounting height is a low profile. (Figure 1).
Single row type
2. Prevent Mis-insertion
When the socket and pin header are mated, this connector is
equipped with a mechanism to prevent reverse insertion or
dissimilar contact insertion.
3. Means to Prevent Solder Cracks
The pin header employs glass enforced resin, and takes
countermeasures to prevent solder cracks due to heat shrinkage.
Figure 1-1
4. Prevent Reverse Insertion in Printed Board
Boss is added to the pin header, and prevents reverse
insertion in the printed board.
Double row type
5. Full Lock Mechanism
The outer lock system employs full lock mechanism.
6. Current Capacity of 8A
Power can be supplied at 8 A maximum. Specification will
change according to applicable cable, number of contacts,
number of rows. For further information, refer to product
specifications as listed on next page.
Figure 1-2
■Applications
Business machines, industrial equipment, consumer
appliances (hot water supply, washing machines, refrigerator)
etc.
B123
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued,
Miniature Potting Connector for
products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF5 Series●5mm Pitch
or will be discontinued soon. Please check the
Secondary Power Supply
■Product
Specifications
No. of rows
Single row
No. of contacts
2 to 10
4
6
8
10
12
14
16
AWG#18 AWG#20 AWG#22
8A
6A
5A
8A
6A
5A
8A
6A
5A
7A
6A
5A
7A
6A
5A
7A
6A
4A
7A
5A
4A
7A
5A
4A
500V AC
500V DC
1500V AC/1 minute
100mA
Measured with 1.14±0.002mm steel pin
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
96 hours at temperature of 40ç and humidity of 90% to 95%
(–55ç: 30 minutes
➝
15 to 35ç: 10 minutes
➝
85ç: 30 minutes
➝
5 to 35ç: 10 minutes ) 5 cycles
30 cycles
Flow: 260ç for 10 seconds
Manual soldering: 350ç for 3 seconds
Operating Temperature Range
Operating Moisture Range
–35
to
+85ç(Note
1)
40 to 80%
Rating
Current rating
Double row
Storage Temperature Range
Storage Humidity Range
–10
to
+60ç(Note
2)
40 to 70%(Note 2)
Voltage rating
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Single Insertior/
Extraction Force
5. Vibration
6.
Humidity (Steady state)
7. Temperature Cycle
8. Durability (Mating/un-mating)
9.Resistance to
Soldering heat
Specification
1000M
ohms
min.
No flashover or insulation breakdown.
30m
ohms
max.
0.3N (30gt) min., 4.5N (450gt) max.
No electrical discontinuity of 10μs or more
Contact resistance: 30m
ohms
max., Insulation resistance: 500M
ohms
min.
Contact resistance: 30m
ohms
max., Insulation resistance: 1000M
ohms
min.
Contact resistance: 30m
ohms
max.
No deformation of
components affecting performance.
Condition
Note 1: Includes temperature rise caused by current flow.
Note 2: The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during
transportation.
Note 3: Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
specifications for a specific part number shown.
■Material
Product
Crimping Socket
Crimping Contact for Socket
Pin header
Part
Insulator
Contact
Insulator
Contact
Material
Polyamide
Phosphor bronze
Polyamide
Brass
Finish
White
Tin plated
Beige
Tin plated
Remarks
UL94V-0
--------------------
UL94V-0
--------------------
■Ordering
Information
●Connector
DF5A
1
1
2
3
-
*
S - 5 C
2
4
5
3
4
5
Contact Pitch: 5mm
Contact type
C : Crimping Socket
DSA : Straight pin header
Series Name: DF5A
Number of contacts: Single row: 2 to 10
Double row: 4 to 16
Connector type
S
: Single row socket
DS
: Double row socket
P
: Single row header
DP
: Double row header
●Contact
DF5A - 1822 SCF
1
1
Applicable cable type
None: UL 1007 equivalent (jacket diameter 1.5 to 2.2mm)
A: UL 1015 equivalent (jacket diameter 2.2 to 2.9mm)
Applicable cable size
1822: AWG#18~#22
2
3
3
packaging type
SCF : Socket contact, reel packaging
SC : Socket contact, bag packaging
2
B124
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search
Potting Connector for
or contact your Hirose sales
Supply
DF5 Series●5mm Pitch Miniature
at www.hirose-connectors.com,
Secondary Power
representative.

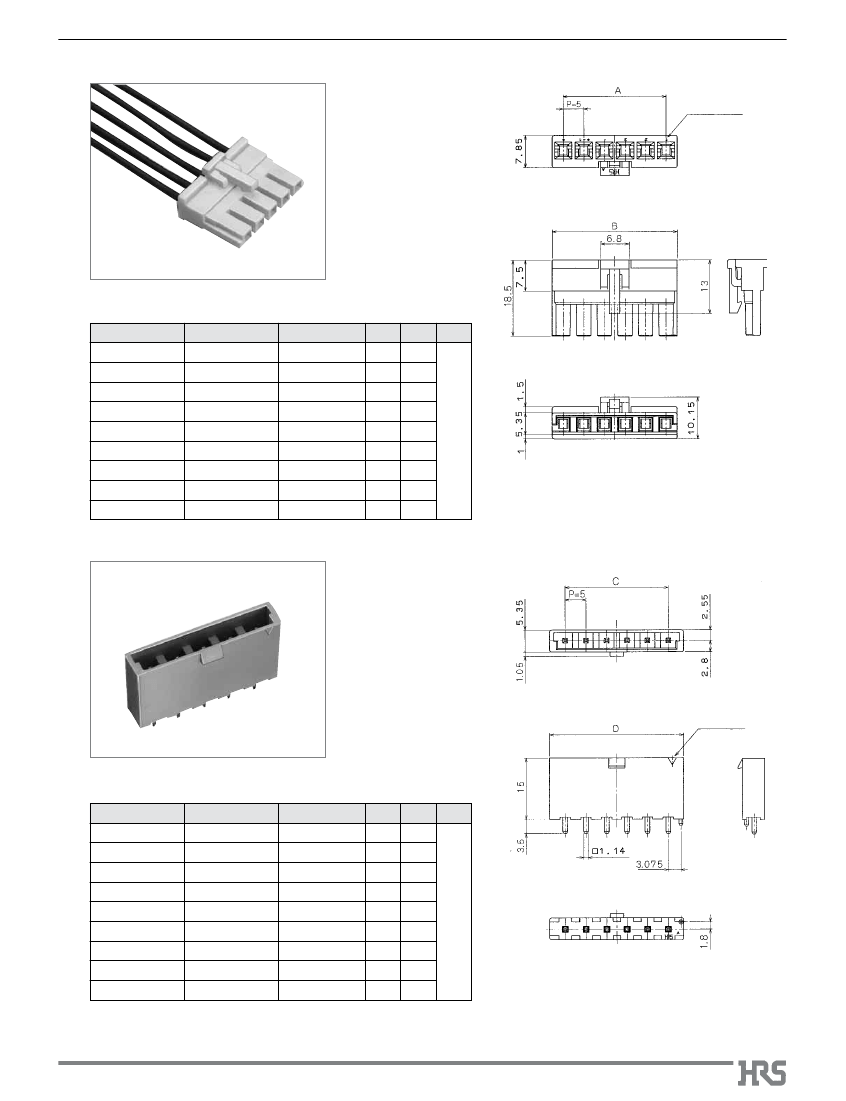

■Single
Row Socket
Contact
No. indicator
Contact Inserted
Product No
DF5A- 2S-5C
DF5A- 3S-5C
DF5A- 4S-5C
DF5A- 5S-5C
DF5A- 6S-5C
DF5A- 7S-5C
DF5A- 8S-5C
DF5A- 9S-5C
DF5A-10S-5C
CL No.
676-0007-8
676-0008-0
676-0009-3
676-0010-2
676-0011-5
676-0012-8
676-0013-0
676-0014-3
676-0015-6
Number of Contacts
2
3
4
5
6
7
8
9
10
A
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
B
10.5
15.5
20.5
25.5
RoHS
30.5 YES
35.5
40.5
45.5
50.5
Note: A packaging quantity is delivered by
the bag unit (100 pcs.).
■Single
Row Pin Header
Polarity mark
Part Number
DF5A- 2P-5DSA(05)
DF5A- 3P-5DSA(05)
DF5A- 4P-5DSA(05)
DF5A- 5P-5DSA(05)
DF5A- 6P-5DSA(05)
DF5A- 7P-5DSA(05)
DF5A- 8P-5DSA(05)
DF5A- 9P-5DSA(05)
DF5A-10P-5DSA(05)
CL No.
676-0016-9-05
676-0017-1-05
676-0018-4-05
676-0019-7-05
676-0020-6-05
676-0021-9-05
676-0022-1-05
676-0023-4-05
676-0024-7-05
Number of Contacts
2
3
4
5
6
7
8
9
10
C
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
D
12.5
17.5
22.5
27.5
32.5
37.5
42.5
47.5
52.5
RoHS
YES
Note: A packaging quantity is delivered by
the bag unit (100 pcs.).
B125
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued,
Miniature Potting Connector for
products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
DF5 Series●5mm Pitch
or will be discontinued soon. Please check the
Secondary Power Supply

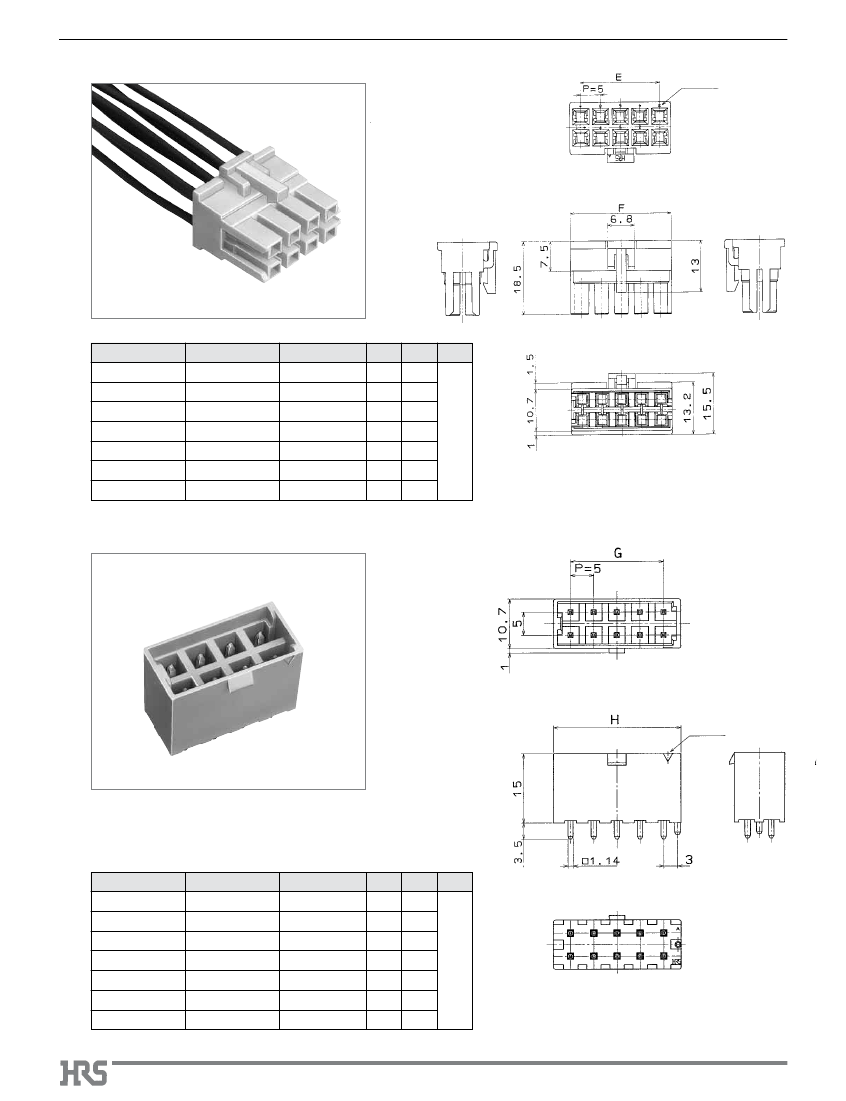

■Double
Row Socket
Contact
No. indicator
Contact Inserted
Part Number
DF5A- 4DS-5C
DF5A- 6DS-5C
DF5A- 8DS-5C
DF5A-10DS-5C
DF5A-12DS-5C
DF5A-14DS-5C
DF5A-16DS-5C
CL No.
676-0025-0
676-0026-2
676-0027-5
676-0028-8
676-0036-6
676-0037-9
676-0038-1
Number of Contacts
4
6
8
10
12
14
16
E
5.0
10.0
15.0
20.0
25.0
30.0
35.0
F
10.5
15.5
20.5
25.5
30.5
35.5
40.5
RoHS
YES
Note: A packaging quantity is delivered by the
bag unit (100 pcs.).
■Double
Row Pin Header
Polarity mark
Part Number
DF5A- 4DP-5DSA(05)
DF5A- 6DP-5DSA(05)
DF5A- 8DP-5DSA(05)
DF5A-10DP-5DSA(05)
DF5A-12DP-5DSA(05)
DF5A-14DP-5DSA(05)
DF5A-16DP-5DSA(05)
CL No.
676-0029-0-05
676-0030-0-05
676-0031-2-05
676-0032-5-05
676-0033-8-05
676-0034-0-05
676-0035-3-05
Number of Contacts
4
6
8
10
12
14
16
G
5.0
10.0
15.0
20.0
25.0
30.0
35.0
H
12.5
17.5
22.5
27.5
32.5
37.5
42.5
RoHS
YES
Note: A packaging quantity is delivered by the
bag unit (100 pcs.).
B126
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search
Potting Connector for
or contact your Hirose sales
Supply
DF5 Series●5mm Pitch Miniature
at www.hirose-connectors.com,
Secondary Power
representative.

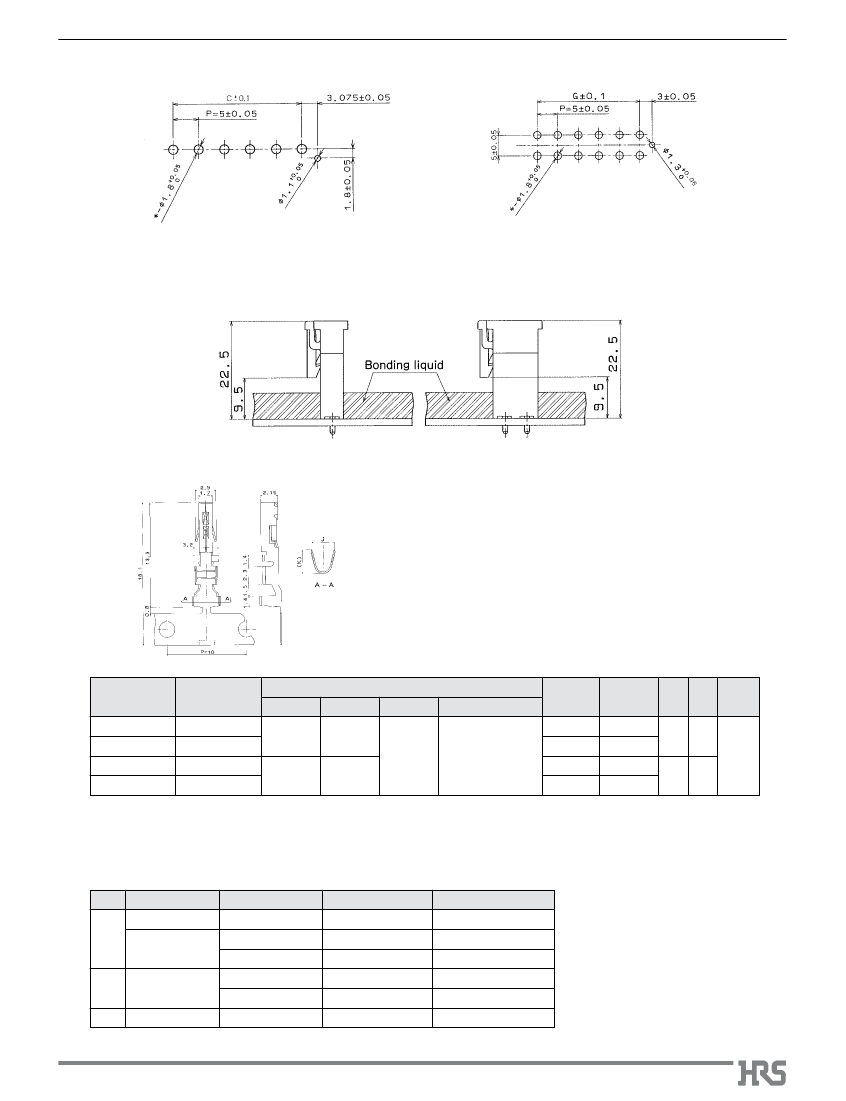

BPCB
mounting pattern (Board thickness = 1.6±0.1)
DF5A-*P-5DSA (05)
DF5A-*DP-5DSA (05)
Note 1. For C and G sizes, please refer to pages where individual product patterns are shown.
BApplication
Pattern
■Socket
Crimping Contact
Part Number
DF5-1822SCF
DF5-1822SC
DF5A-1822SCF
DF5A-1822SC
HRS. No.
676-0001-1
676-0002-4
676-0003-7
676-0004-0
Packaging
Type
UL style Jacket dia. AWG size Contact construction
1007
1015
1.5 to 2.2 AWG#18 43 cores/0.16mm
AWG#20 21 cores/0.18mm
2.2 to 3.2 AWG#22 17 cores/0.16mm
Reel
Bag
Reel
Bag
Applicable Cable
Quantity
5,000
100
5,000
100
J
2.8
3.8
K
3
RoHS
YES
4
Note 1. The applicable cable conductor is a tin plated and annealed copper wire.
Note 2. If other cables are used instead of the applicable cable, contact the HRS Sales Department.
Strip length: 3 to 4mm
BApplicable
Crimping Tools
Type
Item
Press unit
Auto-
matic
Applicator
Part Number
CM-105
AP105-DF5-1822S
AP105-DF5A-1822S
DF5-1822/CR-HT
DF5A-1822/CR-HT
RP13-PC-TP
CL No.
901-0005-4
901-4542-5
901-4546-6
550-0264-0
550-0265-2
150-0021-5
Applicable Contact
------------------------------
DF5-1822SCF
DF5A-1822SCF
DF5-1822SC
DF5A-1822SC
DF5/DF5A-1822SCF
Manual
-----
Manual crimping tool
Extraction tool
Note: If any trouble has been caused due to other tools, which are not designated by Hirose, Hirose won't guarantees any product.
