VCR07L272MGS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> VCR07L272MGS

VCR07L272MGS: DescriptionCeramic Capacitor, Ceramic, 500V, 20% +Tol, 20% -Tol, C0G, 30ppm/Cel TC, 0.0027uF, Through Hole Mount, 3015, RADIAL LEADED; CategoryPassive components capacitor; File Size93KB，3 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

VCR07L272MGS Overview

Ceramic Capacitor, Ceramic, 500V, 20% +Tol, 20% -Tol, C0G, 30ppm/Cel TC, 0.0027uF, Through Hole Mount, 3015, RADIAL LEADED

VCR07L272MGS Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	, 3015
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.0027 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	Other Tolerances Available Upon Request
dielectric materials	CERAMIC
high	7.62 mm
JESD-609 code	e4
length	7.62 mm
Installation features	THROUGH HOLE MOUNT
multi-layer	No
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	Bulk
positive tolerance	20%
Rated (DC) voltage (URdc)	500 V
series	VCR
size code	3015
surface mount	NO
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Gold (Au)
Terminal pitch	5.08 mm
Terminal shape	WIRE
width	3.81 mm
Base Number Matches	1

Preview

Download Datasheet

View All

High Temperature (+200°C), High Voltage

Radial Ceramic Cased Capacitors (C3)

VCR/VRR Series

Ceramic cased capacitors, with a new, unique design concept which eliminates potential problems associated with conven-

tional epoxy cased epoxy potted capacitors.

Major application is high voltage power supplies. High voltage capacitors are also utilized on high voltage meter multiplier and

RF circuits.

INSTALLATION:

Parts should be soldered using a heat sink between the soldering point and the part using a soldering iron rated 18-30 watts.

Remove all traces of flux or other contamination resulting from the soldering operation. An intermittent conducting path

between the leads, at high voltage, could cause breakdown. Soldering temperature should not exceed +300°C.

PART NUMBER AND ORDERING INFORMATION

PRODUCT FAMILY

V = High Voltage Radial

Capacitors

M 102

W A

TEST LEVEL

S = KEMET standard screening

A = MIL-PRF-20, Group A Test

X = Special

TEMP. CHARACTERISTIC

C = C0G (NP0)/BP

R = X7R (BX)

LEAD MATERIALS

G = Gold plated Copper clad steel

W = Solder coated Copper clad steel

LEAD CONFIGURATION

R = Radial

CAPACITANCE TOLERANCES

J = ±5%

M = ±20%

K = ±10%

Other tolerances available upon request

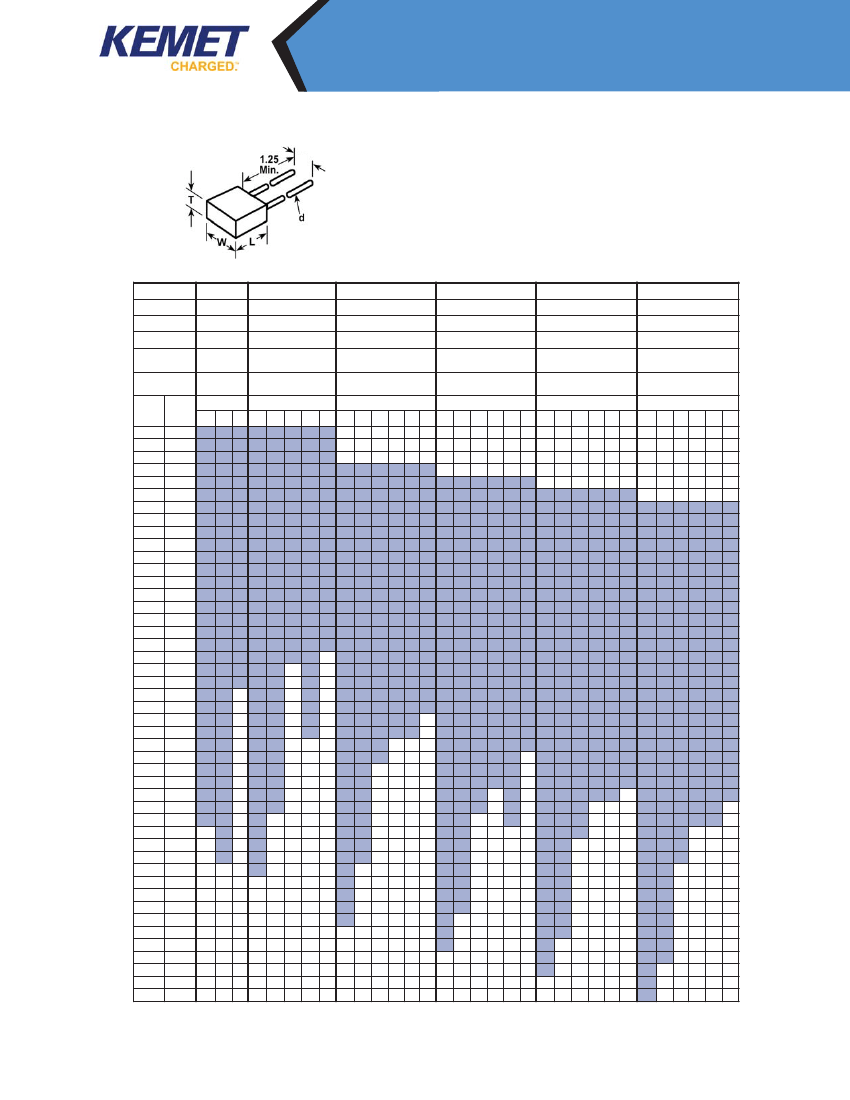

STYLE

Case Size.

See data sheet for detail dimensions

VOLTAGE RATING

L = 500vdc

M = 1000vdc

T = 2000vdc

V = 3000vdc

W = 4000vdc

X = 5000vdc

CAPACITANCE CODE

3 Digit code system expressed in

picofarads (pF)

103 = 10,000pF

151 = 150pF

MARKING

Manufacturer’s ID

Capacitance

Voltage

Date Code

EXAMPLE

KEC

106J

500V

123
