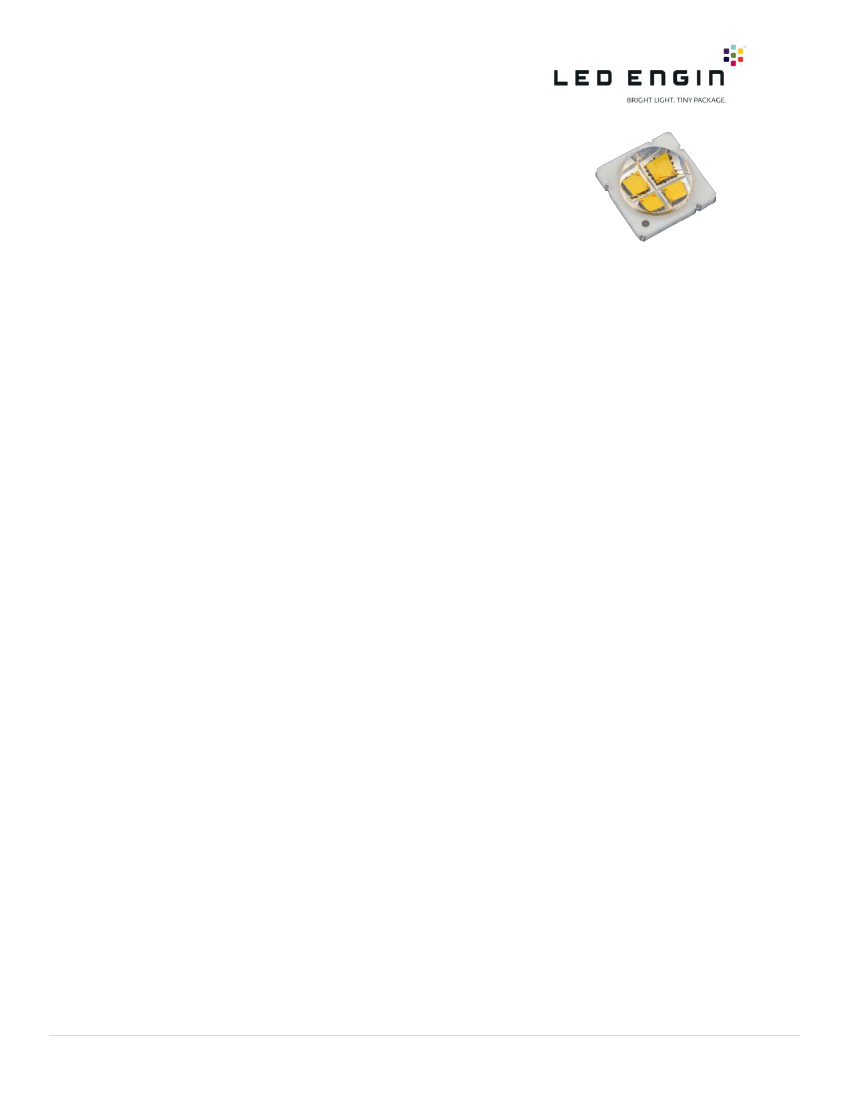

Cool White LED Emitter
LZ4-00CW08
Key Features
High Luminous Efficacy 10W Cool White LED
Ultra-small foot print – 7.0mm x 7.0mm
Surface mount ceramic package with integrated glass lens
Low Thermal Resistance (2.8°C/W)
Individually addressable die
Electrically neutral thermal path
Very high Luminous Flux density
Spatial color uniformity across radiation pattern
JEDEC Level 1 for Moisture Sensitivity Level
Autoclave complaint (JEDEC JESD22-A102-C)
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Emitter available on Standard or Serially connected MCPCB (optional)
Typical Applications
Architectural lighting
Street lighting
Stage and Studio lighting
Task and Accent lighting
Refrigeration lighting
Portable lighting
Description
The LZ4-00CW08 Cool White LED emitter provides 10W power in an extremely small package. With a 7.0mm x
7.0mm ultra-small footprint, this package provides exceptional luminous flux density. LED Engin’s LZ4-00CW08 LED
offers ultimate design flexibility with individually addressable die. The high quality materials used in the package
are chosen to optimize light output and minimize stresses which results in monumental reliability and lumen
maintenance. The robust product design thrives in outdoor applications with high ambient temperatures and high
humidity.
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZ4-00CW08 (1.1 - 08/26/14)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Base part number
Part number
LZ4-00CW08-xxxx
LZ4-40CW08-xxxx
Description
LZ4 emitter
LZ4 emitter on Standard Star 1 channel MCPCB
Bin kit option codes
CW, Cool White (5000K – 6500K)
Kit number
suffix
0055
0065
Min
flux
Bin
V
V
Chromaticity bins
2U, 2Y, 3U, 2A, 2D, 3A, 2B, 2C, 3B, 2V, 2X, 3V
1U, 1A, 1B, 1V, 1Y, 1D, 1C, 1X, 2U, 2A, 2B, 2V
Description
full distribution flux; 5500K bin
full distribution flux; 6500K bin
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
2
LZ4-00CW08 (1.1 - 08/26/14)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Cool White Chromaticity Groups
0.40
0.38
3V
2X
3C
3B
2C
2B
3A
2D
2A
1D
2Y
2U
3U
3Y
3D
3X
0.36
1X
2V
Planckian Locus
CIEy
0.34
1V
1B
1C
0.32
1A
1U
1Y
0.30
0.28
0.28
0.30
0.32
CIEx

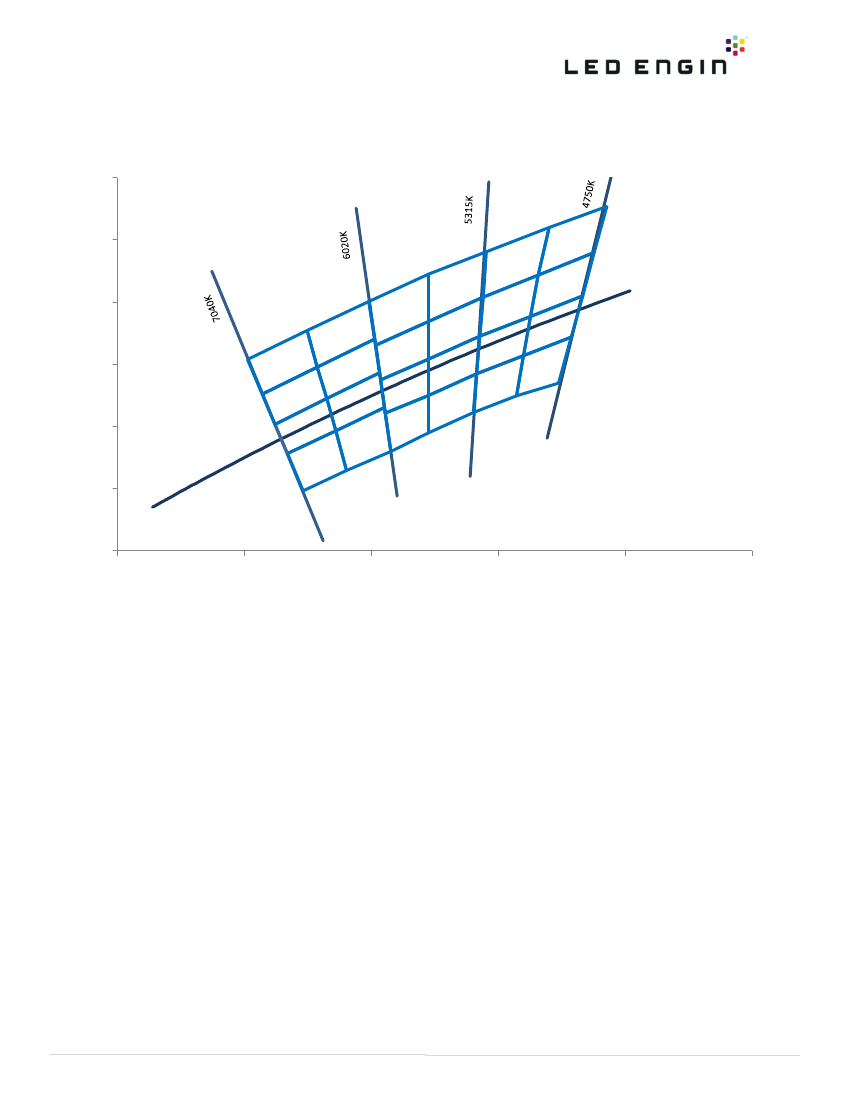

Standard Chromaticity Groups plotted on excerpt from the CIE 1931 (2°) x-y Chromaticity Diagram.
Coordinates are listed below in the table.
0.34
0.36
0.38
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
3
LZ4-00CW08 (1.1 - 08/26/14)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Cool White Bin Coordinates
Bin code
CIEx
0.3068
0.3144
0.3161
0.3093
0.3068
0.3144
0.3221
0.3231
0.3161
0.3144
0.3222
0.329
0.329
0.3231
0.3222
0.329
0.3366
0.3361
0.329
0.329
0.3366
0.344
0.3429
0.3361
0.3366
0.344
0.3515
0.3495
0.3429
0.344
CIEy
0.3113
0.3186
0.3059
0.2993
0.3113
0.3186
0.3261
0.312
0.3059
0.3186
0.3243
0.33
0.318
0.312
0.3243
0.33
0.3369
0.3245
0.318
0.33
0.3369
0.3428
0.3299
0.3245
0.3369
0.3428
0.3487
0.3339
0.3299
0.3428
Bin code
CIEx
0.3048
0.313
0.3144
0.3068
0.3048
0.313
0.3213
0.3221
0.3144
0.313
0.3215
0.329
0.329
0.3222
0.3215
0.329
0.3371
0.3366
0.329
0.329
0.3371
0.3451
0.344
0.3366
0.3371
0.3451
0.3533
0.3515
0.344
0.3451
CIEy
0.3207
0.329
0.3186
0.3113
0.3207
0.329
0.3373
0.3261
0.3186
0.329
0.335
0.3417
0.33
0.3243
0.335
0.3417
0.349
0.3369
0.33
0.3417
0.349
0.3554
0.3427
0.3369
0.349
0.3554
0.362
0.3487
0.3427
0.3554
Bin code
CIEx
0.3028
0.3115
0.313
0.3048
0.3028
0.3115
0.3205
0.3213
0.313
0.3115
0.3207
0.329
0.329
0.3215
0.3207
0.329
0.3376
0.3371
0.329
0.329
0.3376
0.3463
0.3451
0.3371
0.3376
0.3463
0.3551
0.3533
0.3451
0.3463
CIEy
0.3304
0.3391
0.329
0.3207
0.3304
0.3391
0.3481
0.3373
0.329
0.3391
0.3462
0.3538
0.3417
0.335
0.3462
0.3538
0.3616
0.349
0.3417
0.3538
0.3616
0.3687
0.3554
0.349
0.3616
0.3687
0.376
0.362
0.3554
0.3687
Bin code
CIEx
0.3005
0.3099
0.3115
0.3028
0.3005
0.3099
0.3196
0.3205
0.3115
0.3099
0.3196
0.329
0.329
0.3207
0.3196
0.329
0.3381
0.3376
0.329
0.329
0.3381
0.348
0.3463
0.3376
0.3381
0.348
0.3571
0.3551
0.3463
0.348
CIEy
0.3415
0.3509
0.3391
0.3304
0.3415
0.3509
0.3602
0.3481
0.3391
0.3509
0.3602
0.369
0.3538
0.3462
0.3602
0.369
0.3762
0.3616
0.3538
0.369
0.3762
0.384
0.3687
0.3616
0.3762
0.384
0.3907
0.376
0.3687
0.384
1U
1A
1B
1V
1Y
1D
1C
1X
2U
2A
2B
2V
2Y
2D
2C
2X
3U
3A
3B
3V
3Y
3D
3C
3X
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
4
LZ4-00CW08 (1.1 - 08/26/14)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Luminous Flux Bins
Table 1:
Bin
Code
V
W
Minimum
Luminous Flux
(Φ
V
)
@ I
F
= 700mA
[1,2]
(lm)
695
868
Maximum
Luminous Flux
(Φ
V
)
@ I
F
= 700mA
[1,2]
(lm)
868
1085
Typical
Luminous Flux
(Φ
V
)
@ I
F
= 1000mA
[2]
(lm)
1010
1270
Notes for Table 1:
1.
Luminous flux performance guaranteed within published operating conditions. LED Engin maintains a tolerance of ± 10% on flux measurements.
2.
Future products will have even higher levels of luminous flux performance. Contact LED Engin Sales for updated information.
Forward Voltage Bins
Table 2:
Bin
Code
0
Minimum
Forward Voltage (V
F
)
@ I
F
= 700mA
[1,2]
(V)
12.0
Maximum
Forward Voltage (V
F
)
@ I
F
= 700mA
[1,2]
(V)
14.4
Notes for Table 2:
1.
Forward Voltage is binned with all four LED dice connected in series.
2.
LED Engin maintains a tolerance of ± 0.16V for forward voltage measurements for the four LEDs.
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
5
LZ4-00CW08 (1.1 - 08/26/14)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
