LedEngin,
Inc.
LZP-Series
Highest Lumen Density
Neutral White Emitter
LZP-00NW00

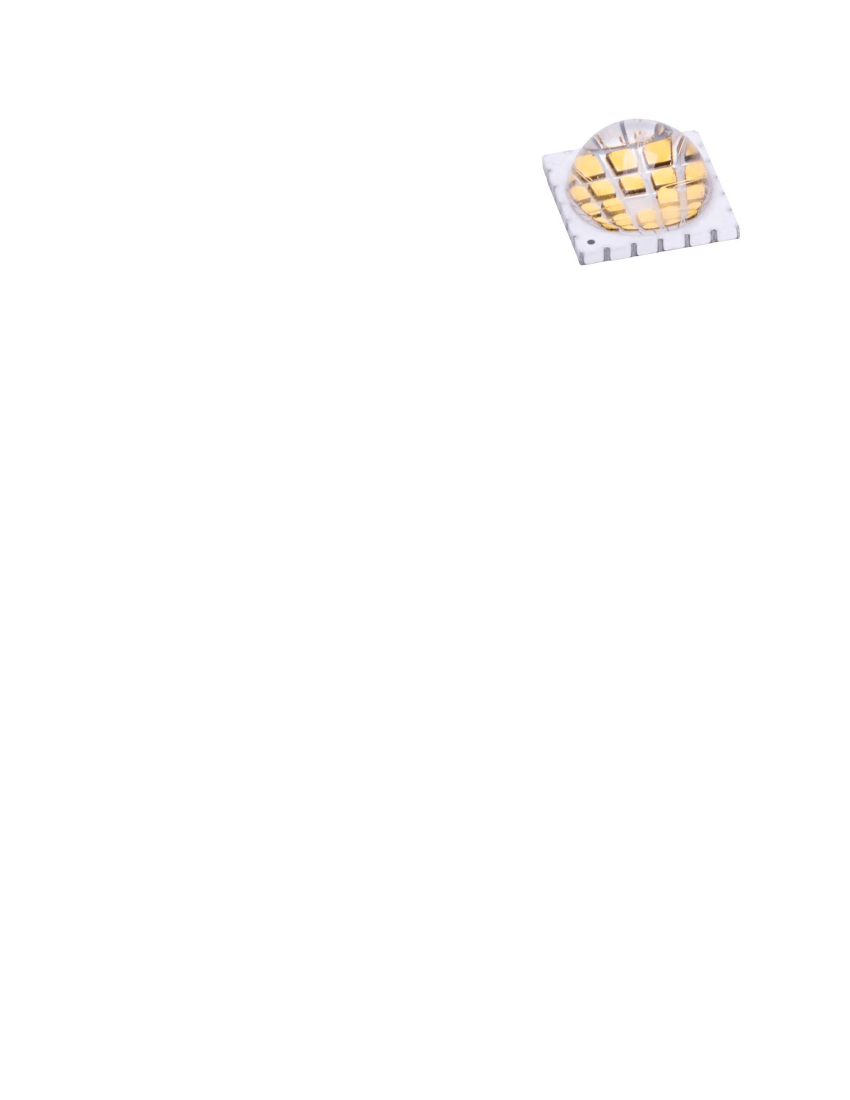

Key Features
Highest luminous flux / area single LED emitter
o
4600lm Neutral white
o
40mm² light emitting area
Compact 12.0mm x 12.0mm x 6.7mm package
Unique power package design allows emitter to be driven reliably at 1000mA/die, 90W
Industry leading lumen maintenance
Color Point Stability 7x improvement over Energy Star requirements
High CRI performance for true color rendering
Surface mount ceramic package with integrated glass lens
JEDEC Level 1 for Moisture Sensitivity Level
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Emitter available on copper core MCPCB
Complementary TIR lens family (LLxx-3T11) specifically designed for LZP-series LEDs
Typical Applications
High Bay and Low Bay
General lighting
Stage and Studio lighting
Architectural lighting
Street lighting
Description
The LZP-00NW00 Neutral white LED emitter can dissipate up to 90W of power in an extremely
small package. With a small 12.0mm x 12.0mm x 6.7mm footprint, this package provides
unmatched luminous flux density. LedEngin’s patent-pending thermally insulated phosphor layer
provides spatial color uniformity across the radiation pattern and a consistent CCT, CRI over
time and temperature. The high quality materials used in the package are chosen to optimize
light output and minimize stresses which results in superior reliability and lumen maintenance.
The robust product design thrives in outdoor applications with high ambient temperatures and
high humidity.
Table of Contents
Product Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Luminous Flux Binning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Forward Voltage Binning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chromaticity Binning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
IPC/JEDEC Moisture Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Average Lumen Maintenance Projections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Typical Radiation Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Optical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pin-Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Recommended Solder Pad Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Reflow Soldering Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Typical Relative Spectral Power Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Typical Relative Light Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Typical Relative Light Output over Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Typical Forward Current Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Current De-rating Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
MCPCB Option Configuration. . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Company Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
LedEngin,
Inc.
2
LZP-00NW00 (Dec. 14, 2010)
Product Nomenclature
The LZ Series part number designation is defined as follows:
LZA–BCDEFG-HJKL
Base Part Number
Bin Code
Where:
A – designates the number of LED die in the package (“P” for 25 die package)
B – designates the package level (“0” for Emitter; “D” for 5-Channel MCPCB)
C – designates the radiation pattern (“0” for Lambertian)
D and E – designates the color (“NW” for Neutral white: 3700 K < CCT < 4750 K)
F and G – designates the use of center die location (“00” vacant center location)
H – designates the Luminous Flux bin (See Table 1)
J and K – designates the CCT bin groups (see Figure 1 and Table 3)
L – designates the V
F
bin (See Table 2)
Luminous Flux Bins
Table 1:
Bin
Code
E
F
G
Minimum
Luminous Flux
(Φ
V
)
@ I
F
= 700mA /Channel
[1,2]
(lm)
2,600
3,300
4.100
Maximum
Luminous Flux
(Φ
V
)
@ I
F
= 700mA /Channel
[1,2]
(lm)
3,300
4,100
5.200
Typical
Luminous Flux
(Φ
V
)
@ I
F
= 1000mA /Channel
[1,2]
(lm)
3,540
4,440
5.650
Notes for Table 1:
1. Luminous flux performance guaranteed within published operating conditions. LedEngin maintains a tolerance of
± 10% on flux measurements.
2. Luminous Flux typical value is for all 24 LED dies operating at rated current. The LED is configured with 4 Channels of
6 dies in series.
Forward Voltage Bin
Table 2:
Bin
Code
0
Minimum
Forward Voltage (V
F
)
@ I
F
= 700mA /Channel
[1]
(V)
19.20
[2,3]
Maximum
Forward Voltage (V
F
)
@ I
F
= 700mA /Channel
[1]
(V)
23.52
[2,3]
Notes for Table 2:
1. LedEngin maintains a tolerance of ± 0.24V for forward voltage measurements.
2. All 4 white Channels have matched Vf for parallel operation
3. Forward Voltage is binned with 6 LED dies connected in series. The LED is configured with 4 Channels of 6 dies in
series each.
LedEngin,
Inc.
3
LZP-00NW00 (Dec. 14, 2010)
Neutral White Chromaticity Groups
0.46
0.44
0.42
0.40
P2
N3
4750 K
4250 K
3700 K
N2
0.38
P3
N4
N5
y
0.36
0.34
0.32
0.30
0.32
Planckian locus
P4
P5
0.34
0.36
0.38
x
0.40
0.42
0.44
Figure 1: Standard Chromaticity Groups plotted on excerpt from the CIE 1931 (2°) x-y Chromaticity Diagram.
Coordinates are listed below in Table 3.
Neutral White Chromaticity Coordinates
Table 3:
Bin
Code
x
0.3568
0.3770
0.3736
0.3548
0.3548
0.3736
0.3703
0.3530
0.3530
0.3703
0.3670
0.3512
0.3512
0.3670
0.3645
0.3497
x
y
0.3885
0.4030
0.3874
0.3736
0.3736
0.3874
0.3726
0.3601
0.3601
0.3726
0.3578
0.3465
0.3465
0.3578
0.3460
0.3350
y
Typical
CCT
(K)
4500
Bin
Code
x
0.3770
0.4055
0.4006
0.3736
0.3736
0.4006
0.3952
0.3703
0.3703
0.3952
0.3898
0.3670
0.3670
0.3898
0.3859
0.3645
x
y
0.4030
0.4196
0.4044
0.3874
0.3874
0.4044
0.3880
0.3726
0.3726
0.3880
0.3716
0.3578
0.3578
0.3716
0.3600
0.3460
y
Typical
CCT
(K)
4000
P2
N2
P3
4500
N3
4000
P4
4500
N4
4000
P5
4500
Typical
CCT
(K)
N5
4000
Typical
CCT
(K)
Bin
Code
Bin
Code
IPC/JEDEC Moisture Sensitivity Level
LedEngin,
Inc.
4
LZP-00NW00 (Dec. 14, 2010)
Table 4 - IPC/JEDEC J-STD-20D.1 MSL Classification:
Floor Life
Level
1
Time
unlimited
Conditions
≤ 30°C/
85% RH
168
+5/-0
Soak Requirements
Standard
Accelerated
Time (hrs)
Conditions
85°C/
85% RH
Time (hrs)
n/a
Conditions
n/a
Notes for Table 4:
1. The standard soak time includes a default value of 24 hours for semiconductor manufacturer’s exposure time
(MET) between bake and bag and includes the maximum time allowed out of the bag at the distributor’s facility.
Average Lumen Maintenance Projections
Lumen maintenance generally describes the ability of a lamp to retain its output over time. The
useful lifetime for solid state lighting devices (Power LEDs) is also defined as Lumen
Maintenance, with the percentage of the original light output remaining at a defined time period.
L70 defines the amount of operating hours at which the light output has reached 70% of its
original output.
25 die (700mA & 1000mA) L70 de-rating
150
140
130
120
Predicted L70 Value (1000x hr)
1000mA
700mA
110
100
90
80
70
60
50
40
30
20
10
0
20
30
40
50
60
70
80
90
100
110
120
130
140
150
Ts, case location (degrees C)
Figure 1: De-rating curve for operation of all dies at 700mA
Notes for Table 4:
1. Ts is a thermal reference point. See for detail Figure 3.
LedEngin,
Inc.
5
LZP-00NW00 (Dec. 14, 2010)
