CXA3050-0000-000N0HX20E5 datasheet, PDF

Datasheet> All Categories > CXA3050-0000-000N0HX20E5

CXA3050-0000-000N0HX20E5: DescriptionChip On Board LED Lighting Module; File Size505KB，17 Pages; ManufacturerCree; Websitehttp://www.cree.com/

Download Datasheet Parametric View All

CXA3050-0000-000N0HX20E5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CXA3050-0000-000N0HX20E5	-	-	View	Buy Now

CXA3050-0000-000N0HX20E5 Overview

Chip On Board LED Lighting Module

CXA3050-0000-000N0HX20E5 Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8541.40.20.00
Packaging	Tray
Supplier Package	SMD
Pin Count	2
Standard Package Name	SMD
Mounting	Surface Mount
Package Height	1.7
Package Length	27.35
Package Width	27.35
PCB changed	2

Preview

Download Datasheet

View All

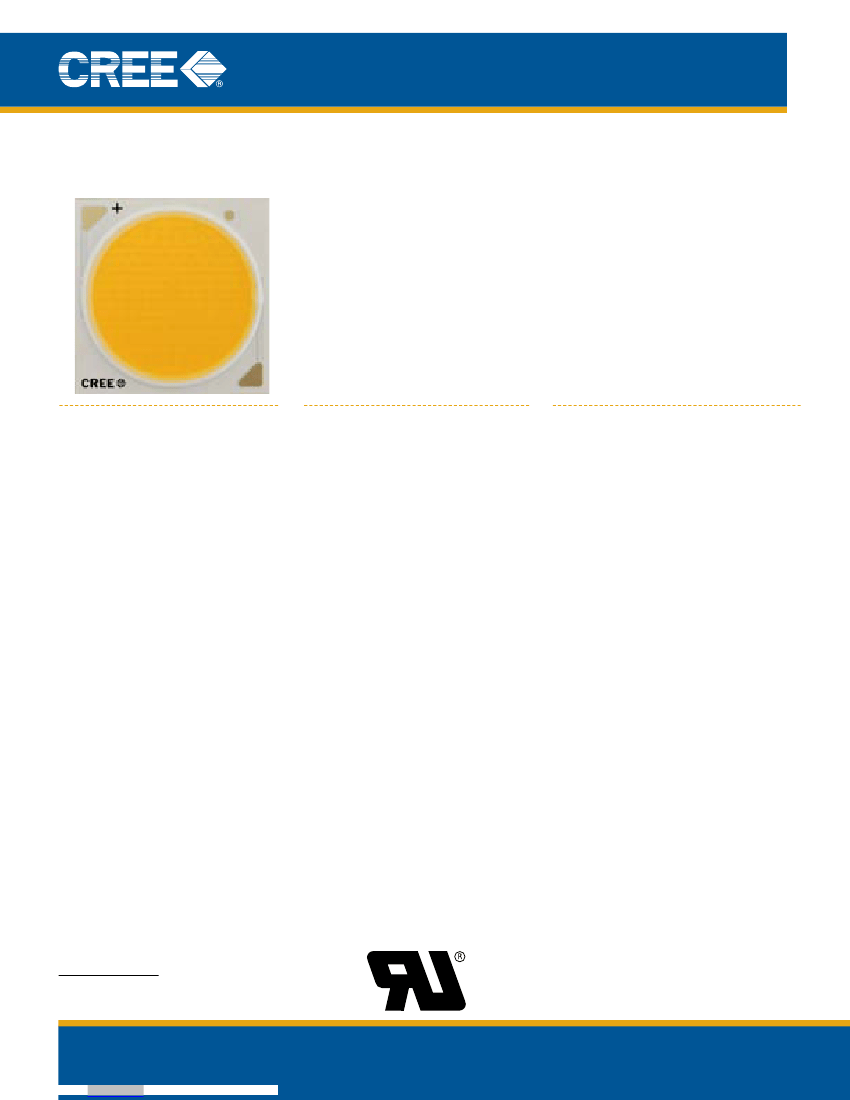

CLD-DS68 Rev 3B

Product family data sheet

cree Xlamp cXa3050 led

Product descriPtion

The XLamp CXA3050 LeD array

expands Cree’s family of high‑flux,

multi-die

offering

XLamp

integrated

high

arrays,

With

performance

platform.

features

•

Available in ANSI white bins

as well as 4-step and 2-step

easyWhite

bins at 2700 K,

3000 K, 3500 K, 4000 K and

5000 K CCT

•

Available in ANSI white bins as

well as 4-step easyWhite bins

at 5700 K and 6500 K CCT

•

Available in 70-, 80-, 90- and

93-minimum CRI options

•

Forward voltage: 37 v

•

85 °C binning and

characterization

•

maximum drive current:

2500 mA

•

115° viewing angle, uniform

chromaticity profile

•

Top-side solder connections

•

Thermocouple attach point

• NEMA SSL‑3 2011 standard flux

bins

•

RoHS- and ReACh-compliant

•

UL-recognized component

(e349212)

table of contents

Characteristics .............................. 2

operating Limits ............................ 2

Flux Characteristics, easyWhite

order Codes and Bins .................... 3

Flux Characteristics, ANSI White

order Codes and Bins .................... 5

Relative Spectral power Distribution . 7

electrical Characteristics ................. 7

Relative Luminous Flux ................... 8

Typical Spatial Distribution .............. 9

performance Groups - Brightness..... 9

performance Groups - Chromaticity .10

Cree easyWhite Bins plotted on the

CIe 1931 Color Space ...................12

Cree ANSI White Bins plotted on

the CIe 1931 Color Space ..............13

Bin and order Code Formats ..........14

mechanical Dimensions..................14

Thermal Design ............................15

Notes ..........................................16

packaging ....................................17

easy-to-use

lighting-class

reliability,

the CXA3050’s uniform emitting

surface enables both directional

and

non-directional

and

lighting

and

applications

luminaire

lamp designs. Available in 2-step

and 4-step color consistency, and

featuring a 23-mm optical source,

the CXA3050 brings new levels of

flux and efficacy to this form factor.

The

CXA

LeD

Design

Guide

provides basic information on the

requirements to use the CXA3050

LeD

successfully

luminaire

designs.

WWW.CRee.Com/XLAmp

Cree XLamp CXA LeD Design Guide,

Design Guide DG02, www.cree.com/

xlamp_app_notes/cxa_design_guide

, the

Cree logo, XLamp

and easyWhite

are registered trademarks of Cree, Inc.

Cree, Inc.

4600 Silicon Drive

Durham, NC 27703

USA Tel: +1.919.313.5300

Recommended Resources

Household vegetable storage room temperature stabilizer circuit

60W UHF amplifier circuit

Fully automatic micro-power time-controlled curtain machine circuit

XCT-101 temperature controller high frequency oscillation amplifier circuit circuit

CNC display stabilized power supply circuit diagram a

BP machine type FM stereo receiver

msp430g2553 frequency measurement no data: 1. First of all, I want to ask if the north test signal can be directly added to the corresponding pin? ? This is the port configuration: P1DIR &=~BIT1; //p1.1 input P1SEL|=BIT1; //P1.1 //Capture exte...; 断桥 Microcontroller MCU

TI: Development platform compatible with multiple wireless communication protocols: The main application scenarios of short-range wireless products come from the emerging Internet of Things. The application scenarios of the Internet of Things are diverse, and various short-range wire...; Jacktang Wireless Connectivity

Chinese Pinyin soft keyboard: I want to write a soft keyboard (with its own UI, the layout of the keyboard is similar to that of a normal keyboard) that can input English and Chinese characters using Pinyin. English is simple beca...; 天天 Embedded System

Who can solve this file encryption dongle.: [i=s]This post was last edited by liyajun99 on 2018-1-2 22:22[/i] This is an encrypted file. I would like to ask for your help. It would be ok if you could give me a method to understand it....; liyajun99 Microchip MCU

Can F2812 support byte array?: When I was writing a 2812 program, I had to use an array in bytes, so I defined it as follows, and there was no problem on MC68332 and other microcontrollers.typedef unsigned char BYTE;typedef unsigne...; jxpxlee Microcontroller MCU

Both NXP 1549 and 54102 development boards have Arduino interfaces. What do engineers think of Arduino?: Recently, the development boards in the trial activities of NXP development boards all have Arduino hardware interfaces. It is found that the netizens who tried them seldom pay attention to and share ...; nmg NXP MCU
