586-6406-205 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> 586-6406-205

586-6406-205: DescriptionLED Replacement Lamps - Based LEDs White Cluster; CategoryLED optoelectronic/LED; File Size110KB，3 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com

Download Datasheet Parametric Compare View All

586-6406-205 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	586-6406-205	-	-	View	Buy Now

586-6406-205 Overview

LED Replacement Lamps - Based LEDs White Cluster

586-6406-205 Parametric

Parameter Name	Attribute value
Product Category	LED Replacement Lamps - Based LEDs
Manufacturer	DIALIGHT
RoHS	No
Product	Cluster Based LEDs
Lamp Base Type	Miniature Bayonet
Illumination Color	White
Luminous Intensity	4000 mcd
If - Forward Current	11 mA
Vf - Forward Voltage	28 V
Packaging	Bulk
LED Size	T-3 1/4
Factory Pack Quantity	1

Preview

Download Datasheet

View All

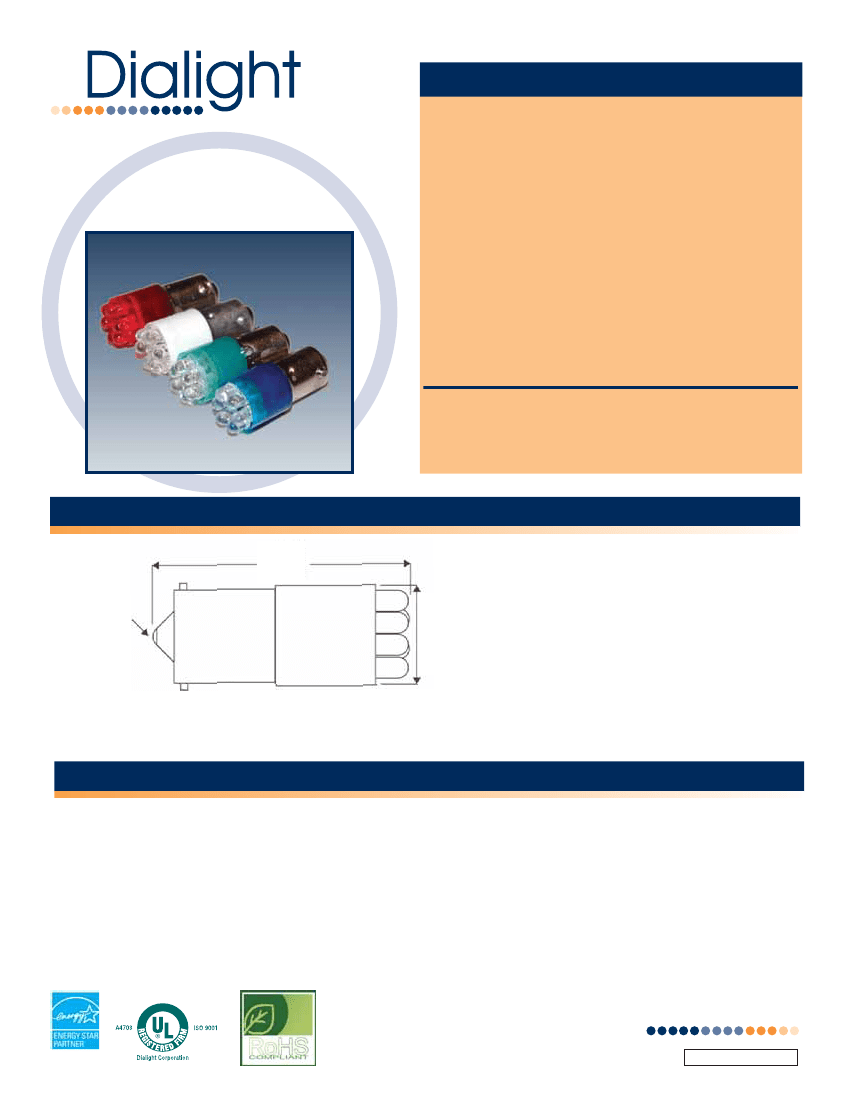

FEATURES / BENEFITS

RoHS Compliant

586 Series -

Sunlight Readable

CLUSTER BASED LED

T3 1/4 Miniature Bayonet (BA9s)

High brightness with low current draw - uses up to

90% less energy than an incandescent

Long life - up to 100K hours

True non-polarized configurations available

No heat generated

Mounts directly into industry standard socket

Resistant to shock and vibration

Incorporating

AlInGaP

InGaN

technology

Super bright LED cluster design

Available in 6, 14, and 28 VDC, 120 VAC

Colors include Red, Green, Yellow, Blue, White

Dialight's line of based LED lamps is designed to directly

replace many popular subminiature and miniature incandescent

lamps. The benefits of LED technology over incandescent are

significant: They offer long life, are shock resistant, withstand

vibration and provide energy conservation.

SPECIFICATIONS

1.09

[27.70]

CENTER

CONTACT (+)

FOR

POLARIZED

VERSION

Operating Voltages: 6,14, 28 VDC, 120 VAC

Polarized and non-polarized available

Operating temperature: -30

to +

.430

[10.92]

Storage temperature: -40

to +

100

Replaces incandescent lamp numbers*: 44,

47, 313, 755,1815, 1819, 1847, 1850, 1866,

1889, 1891, 1892, 1893 and 1895

* See Dialight’s Incandescent lamp/based LED

cross reference for a complete listing

Measurements are typical

Dimensions are inches [mm]

CONSIDERATIONS

Since lens caps act as filters for the light emitted from the based LED, it is important to match the emitting color of the LED.

If not matched properly, the overall light output may be substantially reduced. Dialight recommends using transparent lenses,

which will optimize the light output.

If you are unfamiliar with the polarity of the circuit, Dialight recommends using a non-polarized version.

Although these lamps can be operated at a lower voltage, which will increase the life, the intensity will be reduced.

Operation of the based LED at a higher voltage should not exceed 10% above the recommended voltage.

Dialight does not recommend that based LED lamps be used in neon sockets.

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDELBA9SSR001_B

586-6406-205 Related Products

	586-6406-205	586-6406-201	586-6401-206
Description	LED Replacement Lamps - Based LEDs White Cluster	LED Replacement Lamps - Based LEDs 6V MIN BAY CLUSTER W	LED Replacement Lamps - Based LEDs Red Cluster 120 VAC
Product Category	LED Replacement Lamps - Based LEDs	LED Replacement Lamps - Based LEDs	LED Replacement Lamps - Based LEDs
Manufacturer	DIALIGHT	DIALIGHT	DIALIGHT
RoHS	No	No	No
Product	Cluster Based LEDs	Cluster Based LEDs	Cluster Based LEDs
Lamp Base Type	Miniature Bayonet	Miniature Bayonet	Miniature Bayonet
Illumination Color	White	White	Red
Luminous Intensity	4000 mcd	4000 mcd	500 mcd
If - Forward Current	11 mA	70 mA	9 mA
Vf - Forward Voltage	28 V	6 V	120 V
Packaging	Bulk	Bulk	Bulk
LED Size	T-3 1/4	T-3 1/4	T-3 1/4
Factory Pack Quantity	1	1	1
