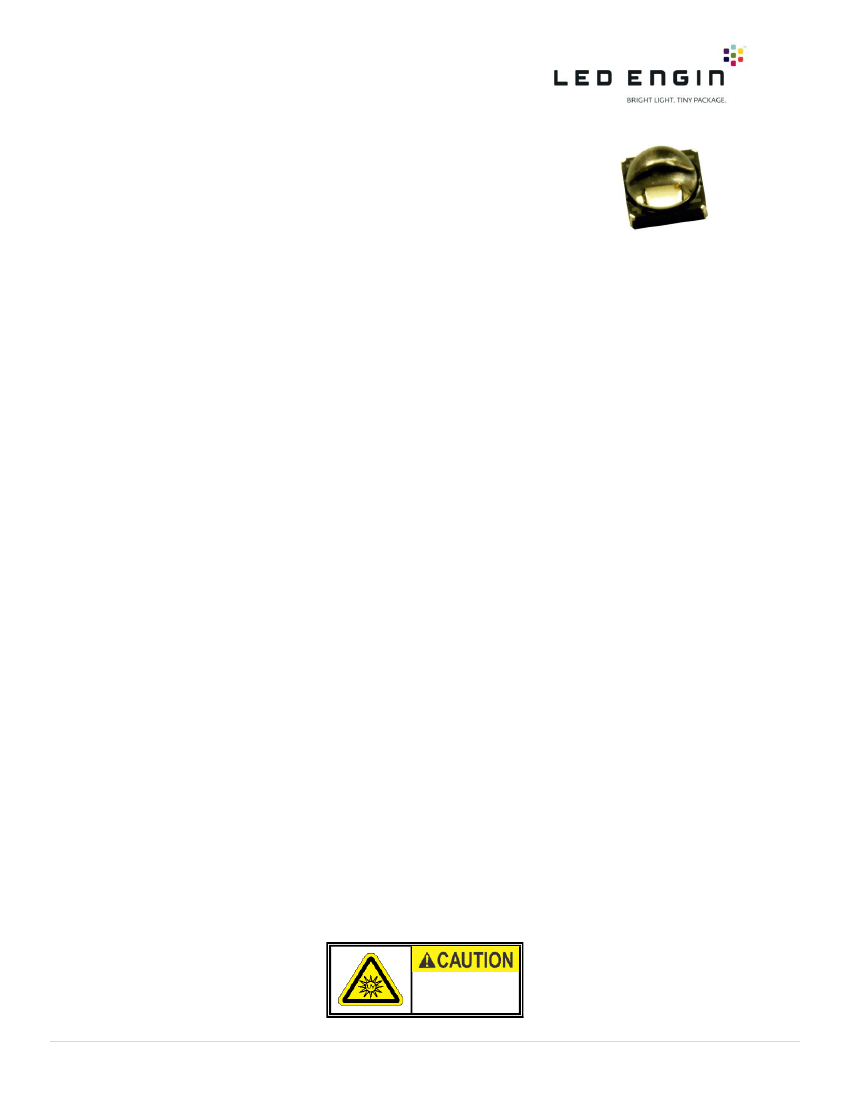

High Efficacy
VIOLET LED Emitter
LZ1-00UA00
Key Features
High Efficacy 5W VIOLET LED
Ultra-small foot print – 4.4mm x 4.4mm
Surface mount ceramic package with integrated glass lens
Very low Thermal Resistance (4.2°C/W)
Electrically neutral thermal path
Very high Radiant Flux density
Autoclave (121°C, 2 ATM, 100% RH, 168 Hours)
JEDEC Level 1 for Moisture Sensitivity Level
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Emitter available on Standard or Miniature MCPCB (optional)
Typical Applications
Dental Curing and Teeth Whitening
Ink and adhesive curing
Sterilization and Medical
DNA Gel
Description
The LZ1-00UA00 VIOLET LED emitter provides superior radiometric power in the wavelength range specifically
required for sterilization, dental curing lights, and numerous medical applications. With a 4.4mm x 4.4mm ultra-
small footprint, this package provides exceptional optical power density. The radiometric power performance and
optimal peak wavelength of this LED are matched to the response curves of dental resins, inks and adhesives,
resulting in a significantly reduced curing time. The patented design has unparalleled thermal and optical
performance. The high quality materials used in the package are chosen to optimize light output, have excellent
VIOLET resistance, and minimize stresses which results in monumental reliability and radiant flux maintenance.
UV RADIATION
Avoid exposure to the beam
Wear protective eyewear
COPYRIGHT © 2015 LED ENGIN. ALL RIGHTS RESERVED.
LZ1-00UA00 (6.1 – 02/06/15)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Part number options
Base part number
Part number
LZ1-00UA00-xxxx
LZ1-10UA00-xxxx
LZ1-30UA00-xxxx
Description
LZ1 emitter
LZ1 emitter on Standard Star MCPCB
LZ1 emitter on Miniature round MCPCB
Bin kit option codes
Single wavelength bin (5nm range)
Kit number suffix
00U4
00U5
00U6
00U7
00U8
Min flux Bin
K
L
L
L
L
Color Bin Range
U4
U5
U6
U7
U8
Description
K minimum flux; wavelength U4 bin only
L minimum flux; wavelength U5 bin only
L minimum flux; wavelength U6 bin only
L minimum flux; wavelength U7 bin only
L minimum flux; wavelength U8 bin only
COPYRIGHT © 2015 LED ENGIN. ALL RIGHTS RESERVED.
2
LZ1-00UA00 (6.1 – 02/06/15)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Radiant Flux Bins
Table 1:
Bin Code
Minimum
Radiant Flux
(Φ)
@ I
F
= 700mA
[1,2]
(mW)
640
800
1000
Maximum
Radiant Flux
(Φ)
@ I
F
= 700mA
[1,2]
(mW)
800
1000
1250
K
L
M
Notes for Table 1:
1.
Radiant flux performance guaranteed within published operating conditions. LED Engin maintains a tolerance of ± 10% on flux measurements.
2.
Future products will have even higher levels of radiant flux performance. Contact LED Engin Sales for updated information.
Peak Wavelength Bins
Table 2:
Bin Code
Minimum
Peak Wavelength (λ
P
)
@ I
F
= 700mA
[1]
(nm)
385
390
395
400
405
Maximum
Peak Wavelength (λ
P
)
@ I
F
= 700mA
[1]
(nm)
390
395
400
405
410
U4
U5
U6
U7
U8
Notes for Table 2:
1.
LED Engin maintains a tolerance of ± 2.0nm on peak wavelength measurements.
Forward Voltage Bins
Table 3:
Bin Code
Minimum
Forward Voltage (V
F
)
@ I
F
= 700mA
[1]
(V)
3.20
Maximum
Forward Voltage (V
F
)
@ I
F
= 700mA
[1]
(V)
4.40
0
Notes for Table 3:
1.
LED Engin maintains a tolerance of ± 0.04V for forward voltage measurements.
COPYRIGHT © 2015 LED ENGIN. ALL RIGHTS RESERVED.
3
LZ1-00UA00 (6.1 – 02/06/15)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
Absolute Maximum Ratings
Table 4:
Parameter
DC Forward Current
[1]
Peak Pulsed Forward Current
Reverse Voltage
Storage Temperature
Junction Temperature
Soldering Temperature
Allowable Reflow Cycles
Autoclave Conditions
ESD Sensitivity
[4]
[2]
Symbol
I
F
I
FP
V
R
T
stg
T
J
T
sol
Value
1000
1000
See Note 3
-40 ~ +150
125
260
6
121°C at 2 ATM,
100% RH for 168 hours
> 2,000 V HBM
Class 2 JESD22-A114-D
Unit
mA
mA
V
°C
°C
°C
Notes for Table 4:
1.
Maximum DC forward current is determined by the overall thermal resistance and ambient temperature.
Follow the curves in Figure 10 for current derating.
2:
Pulse forward current conditions: Pulse Width ≤ 10msec and Duty Cycle ≤ 10%.
3.
LEDs are not designed to be reverse biased.
4.
LED Engin recommends taking reasonable precautions towards possible ESD damages and handling the LZ1-00UA00 in an electrostatic protected area (EPA).
An EPA may be adequately protected by ESD controls as outlined in ANSI/ESD S6.1.
Optical Characteristics @ T
C
= 25°C
Table 5:
Typical
Parameter
Radiant Flux (@ I
F
= 700mA)
Radiant Flux (@ I
F
= 1000mA)
Peak Wavelength
Viewing Angle
[1]
Symbol
Φ
Φ
λ
P
2Θ
1/2
[3]
385-390nm
760
1070
385
390-400nm
900
1260
395
74
110
400-410nm
1000
1400
405
Unit
mW
mW
nm
Degrees
Degrees
[2]
Total Included Angle
Θ
0.9V
Notes for Table 5:
1.
When operating the VIOLET LED, observe IEC 60825-1 class 3B rating. Avoid exposure to the beam.
2.
Viewing Angle is the off axis angle from emitter centerline where the radiometric power is ½ of the peak value.
3.
Total Included Angle is the total angle that includes 90% of the total radiant flux.
Electrical Characteristics @ T
C
= 25°C
Table 6:
Parameter
Forward Voltage (@ I
F
= 700mA)
Forward Voltage (@ I
F
= 1000mA)
Temperature Coefficient
of Forward Voltage
Thermal Resistance
(Junction to Case)
COPYRIGHT © 2015 LED ENGIN. ALL RIGHTS RESERVED.
4
Symbol
V
F
V
F
ΔV
F
/ΔT
J
RΘ
J-C
Typical
3.9
4.1
-3.7
4.2
Unit
V
V
mV/°C
°C/W
LZ1-00UA00 (6.1 – 02/06/15)
LED Engin
|
651 River Oaks Parkway
|
San Jose, CA 95134 USA
|
ph
+1 408 922 7200
|
fax
+1 408 922 0158
|
em
sales@ledengin.com
|
www.ledengin.com
IPC/JEDEC Moisture Sensitivity Level
Table 7 - IPC/JEDEC J-STD-20D.1 MSL Classification:
Soak Requirements
Floor Life
Level
1
Time
Unlimited
Conditions
≤ 30°C/
85% RH
168
+5/-0
Standard
Time (hrs)
Conditions
85°C/
85% RH
Accelerated
Time (hrs)
n/a
Conditions
n/a
Notes for Table 7:
1.
The standard soak time includes a default value of 24 hours for semiconductor manufacturer’s exposure time (MET) between bake and bag and the
floor life of maximum time allowed out of the bag at the end user of distributor’s facility.
Average Radiant Flux Maintenance Projections
Lumen maintenance generally describes the ability of an emitter to retain its output over time. The useful lifetime
for power LEDs is also defined as Radiant Flux Maintenance, with the percentage of the original light output
remaining at a defined time period.
Based on long-term WHTOL testing, LED Engin projects that the LZ Series will deliver, on average, 70% Radiant Flux
Maintenance (RP70%) at 20,000 hours of operation at a forward current of 700 mA per die. This projection is
based on constant current operation with junction temperature maintained at or below 80°C.
